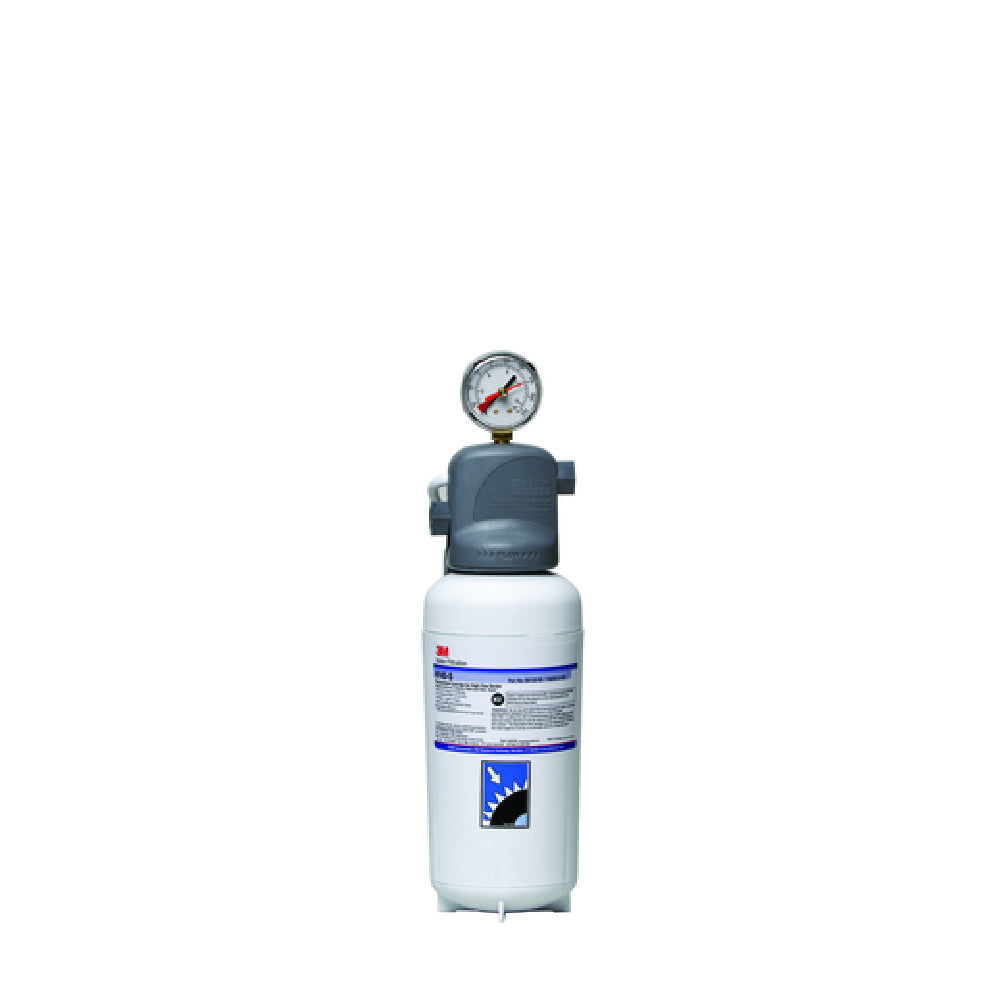

3M ICE145-S Single Cartridge Ice Machine Water Filtration System - 3 Micron Rating and 2.1 GPM

Item
#2622
Universal Item
#
MFG
#ICE145-S
GTIN
#10016145901239
Description

Made for high turbidity water, the ICE145-S is a single cartridge water filtration system from 3M that is specially designed to provide high quality water for commercial ice machines by reducing scale as well as sediment, chlorine taste, and odor. Cartridges in this water filtration system use Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media that combines a membrane in series with premium activated carbon. A built-in scale inhibitor in this water filtration system reduces lime scale build-up and the effects of chlorine corrosion for up to 25,000 gallons (94,635 liters) at flow rates up to 2.1 gallons per minute (7.9 liters per minute).

These water filtration systems use a patented valve-in-head design that makes cartridge change-outs simple by shutting off and venting water simultaneously, with no need to stop the upstream feed water. The cartridge design of this water filtration system is a Sanitary Quick Change (SQC) type that uses a simple 1/4 turn and minimizes the possibility of leakage and contamination during cartridge change-outs. The 3/8" FNPT horizontal inlet and outlet ports on this water filtration system provide direct or easily adaptable connections to plumbing lines.

The ICE145-S water filtration system works with select ice makers from Manitowoc, Scotsman, Hoshizaki, Ice-O-Matic and Koolaire for low flow cubers to 1,000 lb (454 kg), high flow cubers to 600 lb (272 kg) and flakers to 1,800 lb (816 kg). The water filtration system has a 3.0 micron rating and an NSF Performance Data Sheet (PDS) is included.

3M ICE145-S Features

  • Application: High turbidity water
  • System includes head assembly with integral mounting bracket, pressure gauge, and a single cartridge filter
  • Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media
  • Valve-In-Head water filter system
  • Reduces scale as well as sediment, chlorine taste, and odor
  • Built-in scale inhibitor
  • Automatic 1/4 turn shut-off valve
  • Capacity: 25,000 gallons (94,635 liters)
  • Flow rate: 2.1 gallons per minute (7.9 liters per minute)
  • Micron rating: 3.0
  • Maximum pressure: 125 psi (862 kPa) at 100 degrees F (37.8 degrees C)
  • Designed for low flow cubers to 1,000 lb (454 kg), high flow cubers to 600 lb (272 kg) and flakers to 1,800 lb (816 kg)
  • 3/8" FNPT horizontal inlet and outlet ports
  • Replacement cartridge: HF45-S (3M part number: 56133-09)
  • Case quantity: 2

3M ICE145-S Benefits

  • Works with select ice makers from Manitowoc, Scotsman, Hoshizaki, Ice-O-Matic and Koolaire
  • NSF Performance Data Sheet (PDS) included
  • NSF listed



Overall Dimensions:
Height: 14-7/8"
Width: 4-1/2"

View all Description
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Add to Wishlist
Standard Shipping
Add this item to the cart to calculate your shipping rate
In stock
CT
Qty 2
$225.90
Each
Shipping
Order by 1:00pm EST it Ships Today!
Shipping
Order by 1:00pm EST it Ships Today!
  • Valve-In-Head water filter system
  • Reduces scale as well as sediment, chlorine taste, and odor
  • Built-in scale inhibitor
  • Automatic 1/4 turn shut-off valve
  • Capacity: 25,000 gallons (94,635 liters)
Warranty Info
1 Year Against Manufacturer Defect
