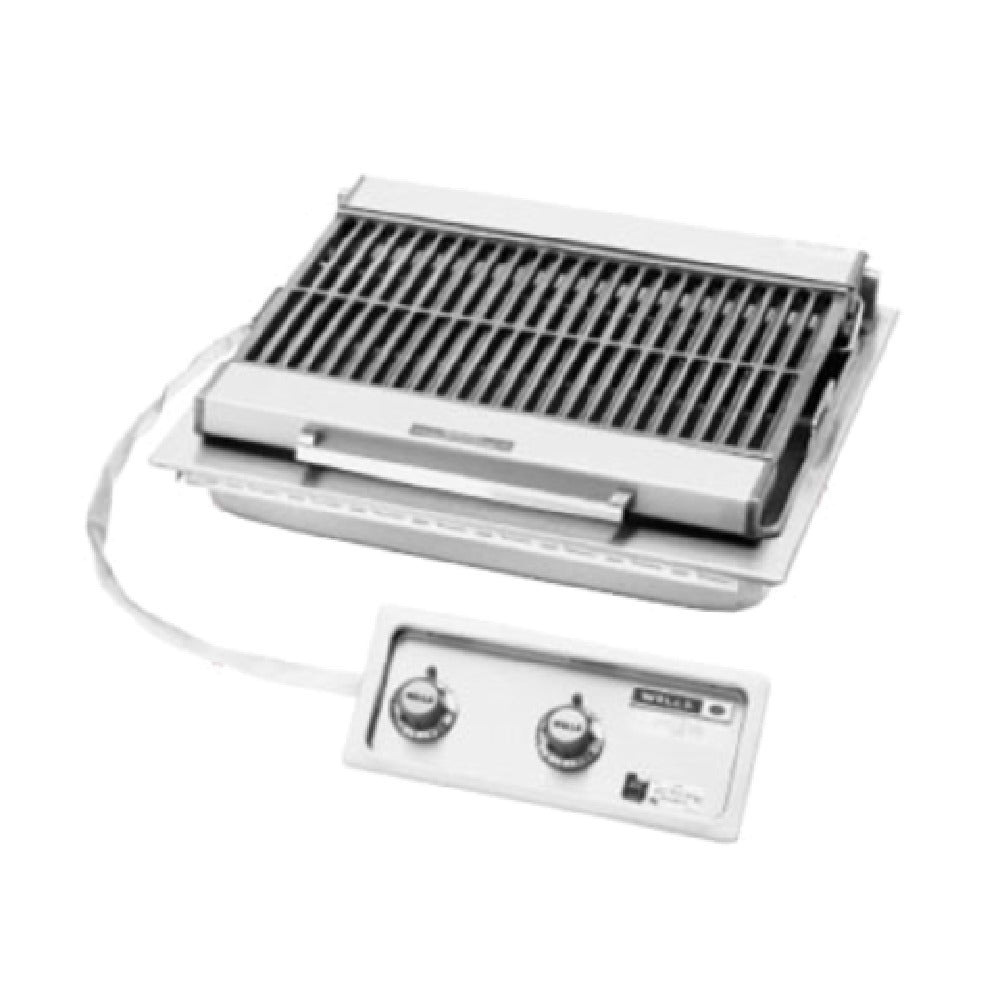

Wells B-406 25" Built-In Stainless Steel Electric Charbroiler With Cast Iron Grate And 2 Heat Zones, 240 Volts

Name: Wells B-406 25" Built-In Stainless Steel Electric Charbroiler With Cast Iron Grate And 2 Heat Zones, 240 Volts
Brand: Wells
SKU: B-406_240
Price: 4881.99 USD
Availability: InStock

Item

#515353

MFG

#B-406_240

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification Specifications

Ship Weight	68 LB
Manufacturer	Wells
Model Number	B-406
Manufacturer Part #	B-406
Hazardous Materials	No
Oversized Shipping	No
Country of Origin	United States of America
Base Material	Stainless Steel
Color	Silver
NSF Approved	Yes
UL Recognized Unit	Yes
CE listed	Yes
Control Type	Infinite
Type	Drop-In
Dimension(WxD)	24-3/4" x 23-1/2"
Number of Burners	2
Number of Controls	2
Power	Electric
Electrical	240v/60/1-3ph
Amps Single Phase	22.5
Amps Three Phase	41.8
Wattage	5,400
Power Cord	No
Plug	No

View all Specifications

Description

The B-406 is an Electric Built-In Charbroiler from Wells. The top and sides of this charbroiler are constructed of stainless steel, while the grates are made of cast iron. The temperature is determined by (2) infinite controls, one for each side. Dual heating action is provided by self-cleaning elements, which are placed between the broiler grate ribs. The element frame features a spring-loaded support rod for added stability. The Wellslok allows for an easy installation into stainless steel countertops. A terminal block allows for a field connection to the main power supply. This product comes shipped 1-phase, but is field convertible to 3-phase. It is designed for installation in metal counters only.

Wells B-406 Features

Built-In
Material: Stainless Steel
Infinite Controls
Controls: 2
Spring-Loaded Support Rod
Self-Cleaning Elements
Terminal Block
Cast Iron Grates
Wellslok
Grate Scraper/Brush
Drip Pans w/Handles
4" Adjustable Metal Legs
Electric: 240v/60/1-3
No power cord or plug
UL listed
CE listed

Wells B-406 Features

Removable grate and drip/grease pan for easy cleaning
Self-cleaning elements protected by grate
Support rod helps secure element when in raised position
Each half controlled individually for added versatility
Wellslok provides a quick and easy installation

Overall Dimensions:
Width: 24-3/4"
Depth: 23-1/2"

Grill Surface Dimensions:
Width: 21-1/2"
Depth: 14-1/2"

View all Description
