Vulcan VGM36C Natural Gas V Series 36" Wide Manual-Control Convection Oven Base Griddle Top Heavy-Duty Stainless Steel Range On Legs, 122,000 BTU

Item
#173164
MFG
#VGM36C_NAT

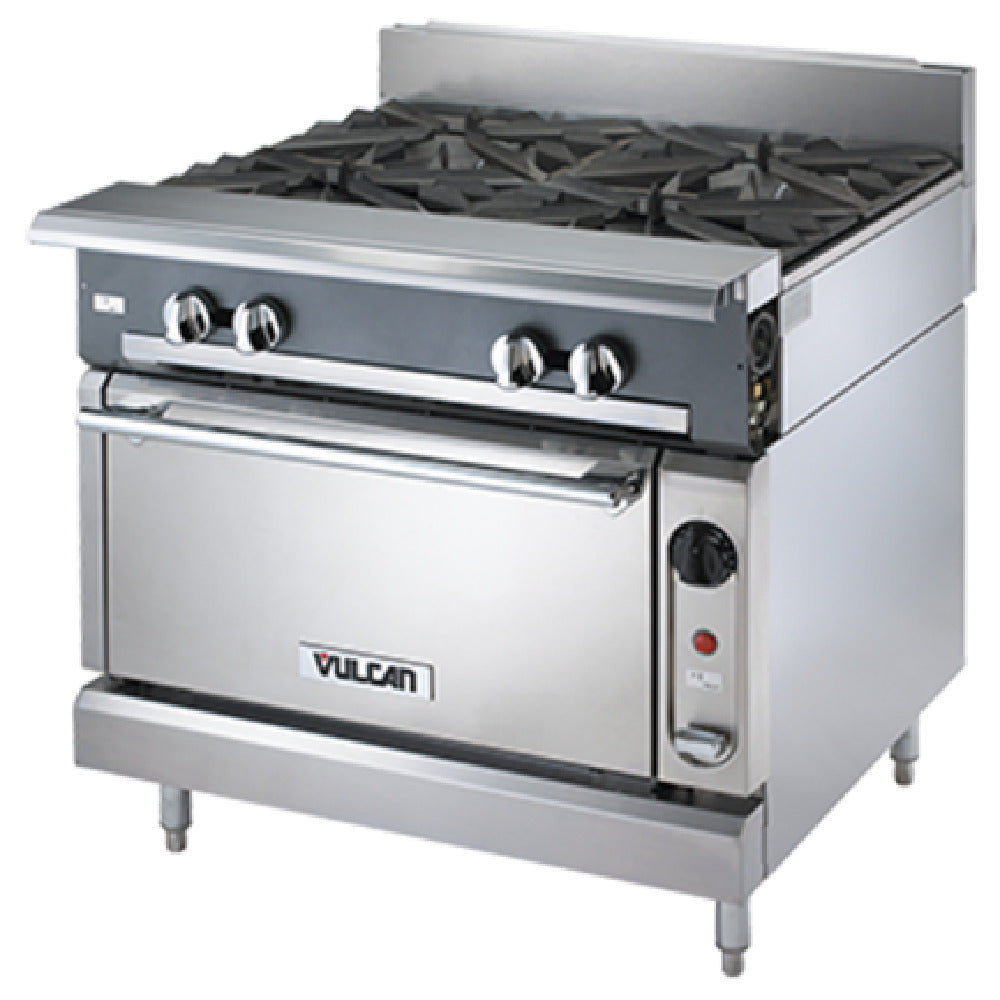

Caster Model Shown
Specification Specifications
Ship Weight 763 lb
Manufacturer Vulcan
Model Number VGM36C
Manufacturer Part # VGM36C
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 36 Inches
Width 36 Inches
Depth 36 3/4 Inches
Base Material Stainless Steel
Color Silver
Base Type Convection Oven Base
Control Type Manual
Number Of Burners 3
Griddle Plate Width 36 Inches
Burner BTU 30,000
Griddle Plate Thickness 3/4 Inches
Oven Interior Height 13 Inches
Oven Interior Width 27 Inches
Oven Interior Depth 27 Inches
Oven BTU 32,000
Riser Height 4 Inches
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Side Splash Height 4 Inches
Power Gas / Electric
Total BTU 122,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Natural Gas
Regulator Included No
Voltage 115
Phase 1
Amps 4
Power Cord Length 9 ft
Plug NEMA 5-15P
Legs 6" Adjustable Stainless Steel Legs
Brand Line V Series
View all Specifications
Description

This VGM36C commercial gas griddle range operates on Natural Gas at 32,000 BTU for the convection oven, and 90,000 BTU for the griddle, for a total of 122,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

The blower motor on the oven of this griddle range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. This commercial gas griddle range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

The VGM36C is the heavy-duty V Series gas-powered griddle range from Vulcan that has a convection oven base, manual controls, and a 3/4" thick polished steel 36" wide griddle plate with 4" side splashes, and individual pilots and controls. This range comes with 6" adjustable stainless steel legs.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this griddle range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

Vulcan VGM36C Features

  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • Control Type: Manual
  • Base Material: Stainless Steel
  • 3/4" thick polished steel plate
  • Burner Type: Griddle
  • Side Splash Height: 4"
  • Individual burner pilots and controls
  • Number of Burners: 3
  • Griddle Plate Width: 36"
  • Burner BTU: 30,000
  • Griddle Total BTU: 90,000
  • Oven Temperature Range: 175 to 550 degree F
  • Oven Interior Size: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Oven BTU: 32,000
  • Gas Type: Natural Gas
  • Total BTU: 122,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan VGM36C Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel construction stands up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$18,747.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Control Type: Manual
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Burner Type: Griddle
  • Side Splash Height: 4"
  • Number of Burners: 3
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • Burner BTU: 30,000
  • NSF listed for safety
  • Number of Griddle Plates: 1
  • Griddle Plate Width: 36"
  • Griddle Plate BTU: 90,000
  • Individual burner pilots and controls
  • Base Type: Convection Oven Base
  • Gas Type: Natural Gas
  • Oven BTU: 32,000
  • Oven Temperature Range: 175 to 550 degree F
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Total BTU: 122,000
  • V Series heavy-duty 36" wide range
  • Warranty Info
    1 Year Parts and Labor Warranty
