Vulcan VGM18 Natural Gas V Series 18" Wide Modular Frame Manual-Control Griddle Heavy-Duty Stainless Steel Range Without Legs, 30,000 BTU
| Ship Weight | 255 lb |
| Manufacturer | Vulcan |
| Model Number | VGM18 |
| Manufacturer Part # | VGM18 |
| Hazardous Material | No |
| Oversized Shipping | No |
| Type | Commercial Gas Range |
| Height | 13 3/4 Inches |
| Width | 18 Inches |
| Depth | 36 3/4 Inches |
| Base Material | Stainless Steel |
| Color | Silver |
| Base Type | Modular Frame |
| Control Type | Manual |
| Number Of Griddle Plates | 1 |
| Griddle Plate Width | 18 Inches |
| Griddle Plate BTU | 30,000 |
| Griddle Plate Thickness | 3/4 Inches |
| CSA Design Certified | Yes |
| CSA Blue Flame Certified | Yes |
| NSF Listed | Yes |
| Riser Height | 4 Inches |
| Power | Gas |
| Total BTU | 30,000 |
| Gas Connection | 1 1/4" Diameter Rear Gas Connection |
| Gas Type | Natural Gas |
| Regulator Included | No |
| Legs | None |
| Side Splash Height | 4 Inches |
| Brand Line | V Series |

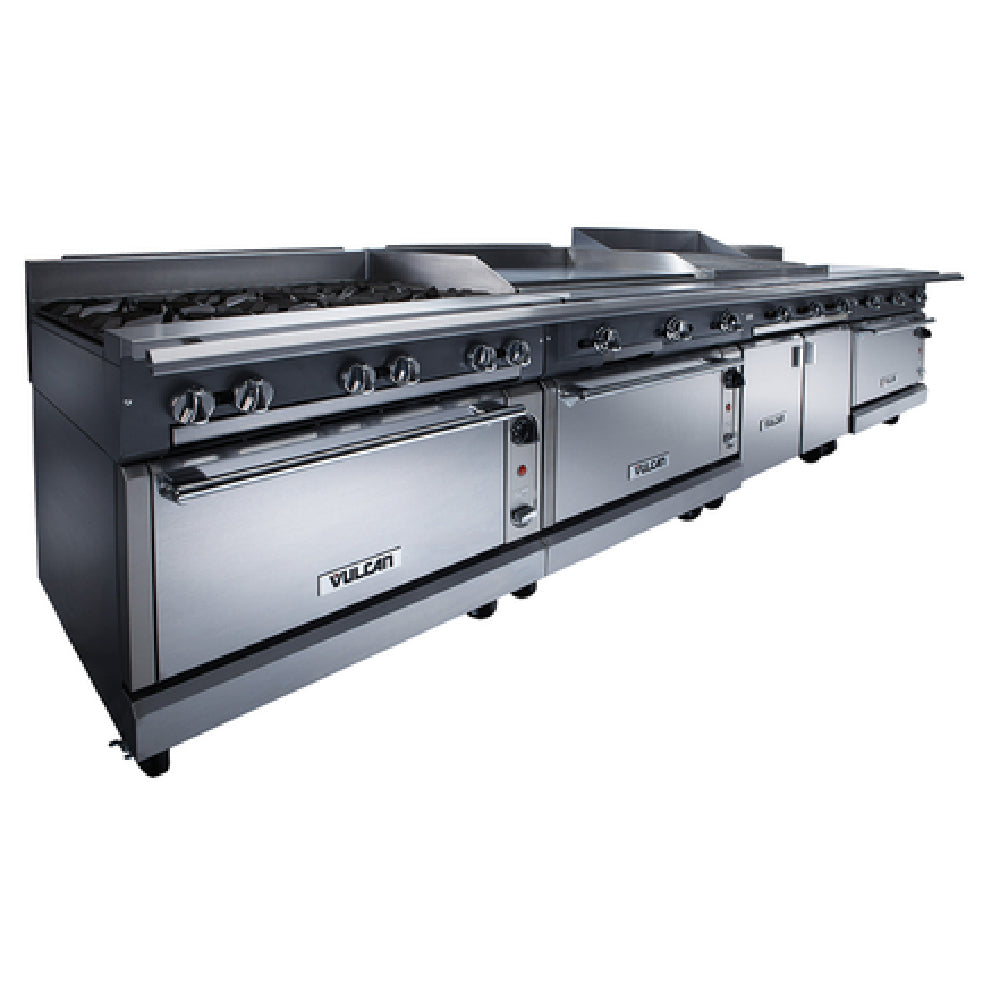

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.
This commercial gas griddle range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
The VGM18 is the heavy-duty V Series 18" wide gas-powered griddle range from Vulcan that has a modular frame, manual controls, and a 3/4" thick polished steel 18" wide griddle plate with 4" side splashes, and individual pilots and controls. This modular range comes without legs.
There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this griddle range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.
This VGM18 commercial gas griddle range operates on Natural Gas at 30,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
Vulcan VGM18 Features
- V Series heavy-duty 18" wide range
- Base Type: Modular Frame
- Control Type: Manual
- Base Material: Stainless Steel
- 3/4" thick polished steel plate
- Burner Type: Griddle
- Side Splash Height: 4"
- Individual burner pilots and controls
- Number of Griddle Plates: 1
- Griddle Plate Width: 18"
- Griddle Plate BTU: 30,000
- Gas Type: Natural Gas
- Total BTU: 30,000
- 4" stainless steel stub riser
- Gas Connection: 1 1/4" diameter rear gas connection
- Legs: None
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan VGM18 Benefits
- Energy-efficient heavy-duty burner
- Modular and interchangeable V series units allow you to create the perfect customized workstation
- Durable stainless steel construction stands up to any commercial kitchen environment
Overall Dimensions:
Height: 13 3/4"
Width: 18"
Depth: 36 3/4"
