Vulcan VACB36_NAT Achiever Medium-Duty Radiant Natural Gas Charbroiler - 102,000 BTU

Item
#173384
MFG
#VACB36_NAT

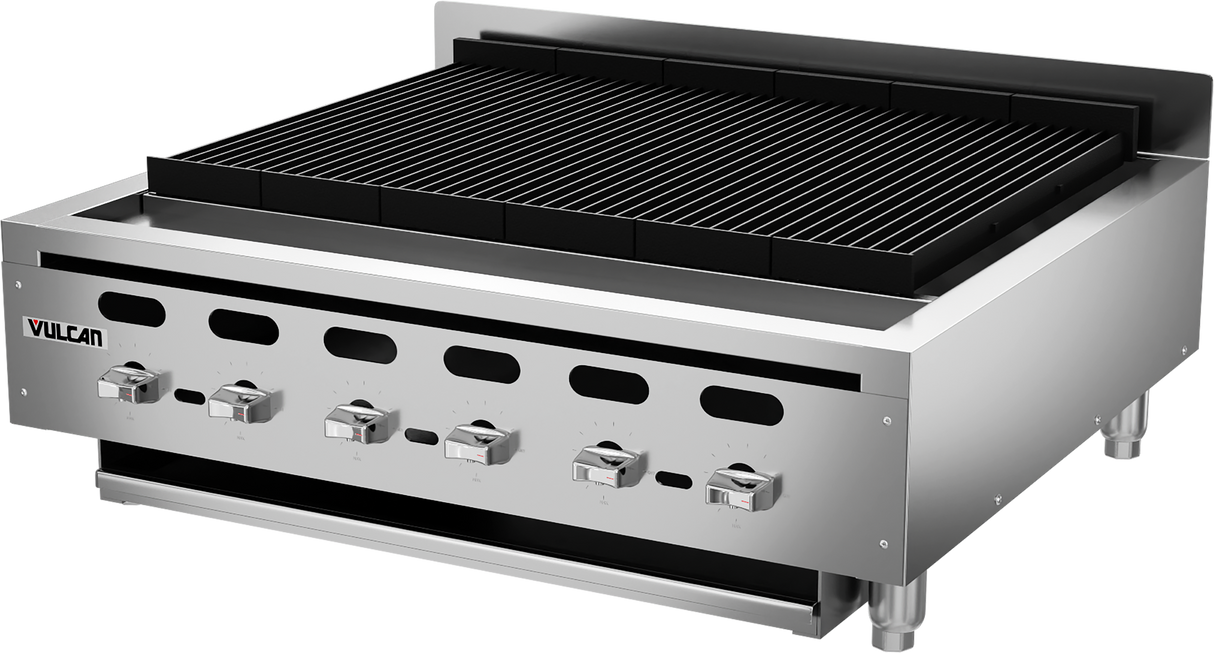

Model VACB47 shown.
Natural Gas
Specification Specifications
Ship Weight 370 LBS
Manufacturer Vulcan
Model Number VACB36_NAT
Manufacturer Part # VACB36_NAT
Oversized Shipping No
Hazardous Material No
NSF Listed Yes
CSA Listed Yes
Burners 6
BTU Per Burner 17,000
Total BTU 102,000
Power Liquid Propane
Color Silver
Base Material Stainless Steel
Dimensions (WxDxH) 36" x 31" x 15.5"
Leg Height 4"
View all Specifications
Description

The VACB36 is the 36" wide countertop 6-burner heavy-duty gas charbroiler from Vulcan with 17,000 BTU cast iron burners with individual infinite heat controls and 1 drip tray. This countertop commercial gas charbroiler stands firmly on a set of 4" adjustable legs.

The charbroiler is operated with an individual high-range infinite heat control valve on each burner with adjustment marks engraved into front panel to adjust temperatures up to 700 degrees F with a standing pilot.

There is an all-welded chassis on this charbroiler with the sides, control panel, top trim, backsplash and grease trough all constructed from durable, corrosion-resistant stainless steel that will stand up to the daily usage of a commercial kitchen environment.

There are under-burner heat deflector panels on this charbroiler that reflects heat upwards and protect the base from damage. This commercial gas charbroiler is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

The supercharger burner dividers on this charbroiler provide exceptional heat distribution across the entire cooking surface as well as minimize the heat transfer between zones for precise multi-zone cooking.

This VACB36 commercial gas charbroiler operates on Natural Gas at 17,000 BTU per burner for a total of 102,000 BTU/hr and it has a 3/4" NPT rear gas connection and it comes included with a pressure regulator. All plumbing, gas, or electrical connections should always be made by qualified personnel who will follow all of the proper plumbing, sanitary, and safety codes and guidelines.

Vulcan VACB36_NAT Features

  • Achiever Charbroiler
  • Material: Stainless Steel
  • Color: Silver
  • Power: Natural Gas
  • Total BTU: 102,000
  • Burners: 6
  • (6) 17,000 Cast Iron Burners
  • Supercharger Burner Dividers
  • Heavy Duty Cast Iron Char-Radiants
  • 5-1/4" Wide Cast Iron Diamond Grates
  • (1) Infinite Heat Control Valve Per Burner
  • Stainless Steel Front, Sides, And Top Trim
  • Standing Pilot Ignition System
  • Heat Deflector Tray System
  • Fully Welded Chassis
  • (1) Drip Tray
  • 3/4" Rear Gas Connection
  • Gas Pressure Regulator
  • 4" Adjustable Legs
  • CSA Listed
  • NSF Listed

Vulcan VACB36_NAT Benefits

  • Sturdy stainless steel construction helps ensure longevity
  • Adjustable legs provide a great working height
  • Heat deflectors create a "Cool Zone" for the grease drawer

Overall Dimensions:

Width: 36"

Depth: 31"

Height: 15-1/2"

View all Description
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made In America
Made In America
This item was made in the United States of America.
3/4" Gas Connection
3/4" Gas Connection
This unit comes with a 3/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
In stock
$6,565.00
Each
Shipping
Order by 1:00pm EST it Ships Today!
Shipping
Lead time varies; contact our team with your ZIP code for more info.
Other Available Fuel Types:
  • Achiever Charbroiler
  • Natural Gas Powered
  • (6) 17,000 Cast Iron Burners
  • Supercharger Burner Dividers
  • Heavy Duty Cast Iron Char-Radiants
  • 5-1/4" Wide Cast Iron Diamond Grates
  • (1) Infinite Heat Control Valve Per Burner
  • Stainless Steel Front, Sides, And Top Trim
  • Standing Pilot Ignition System
  • 3/4" Rear Gas Connection
  • Warranty Info
    1 Year Limited Warranty
