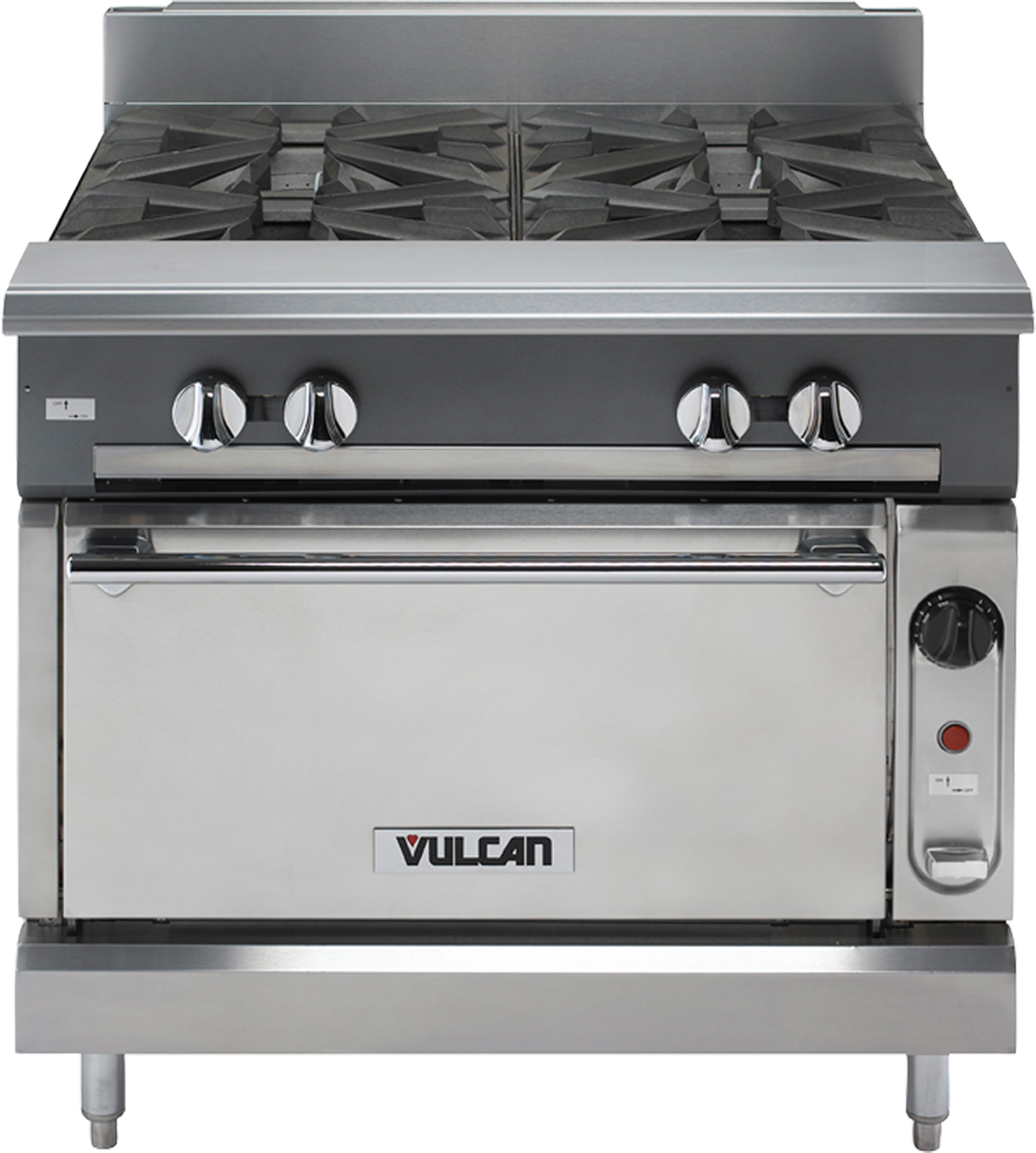

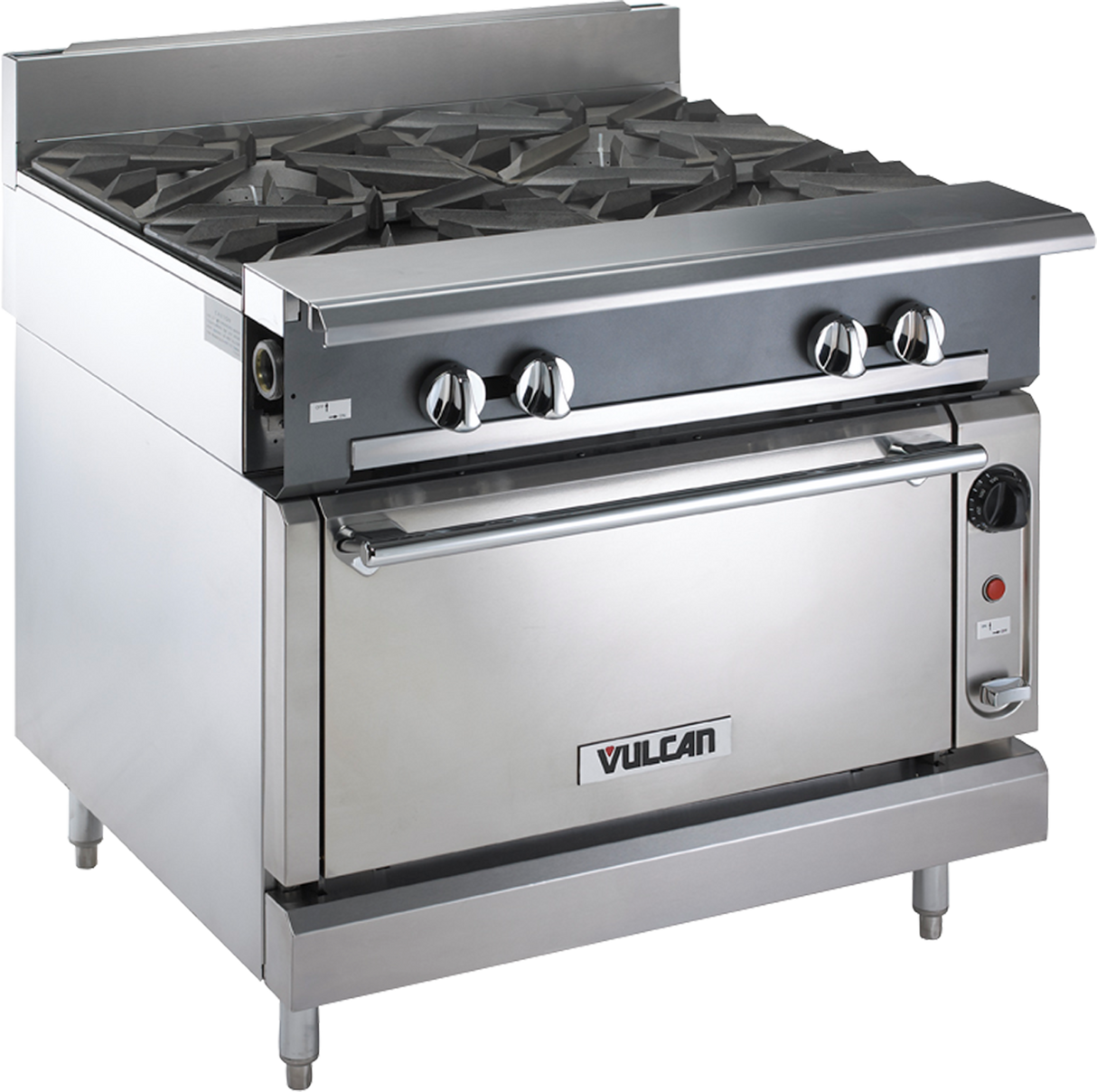

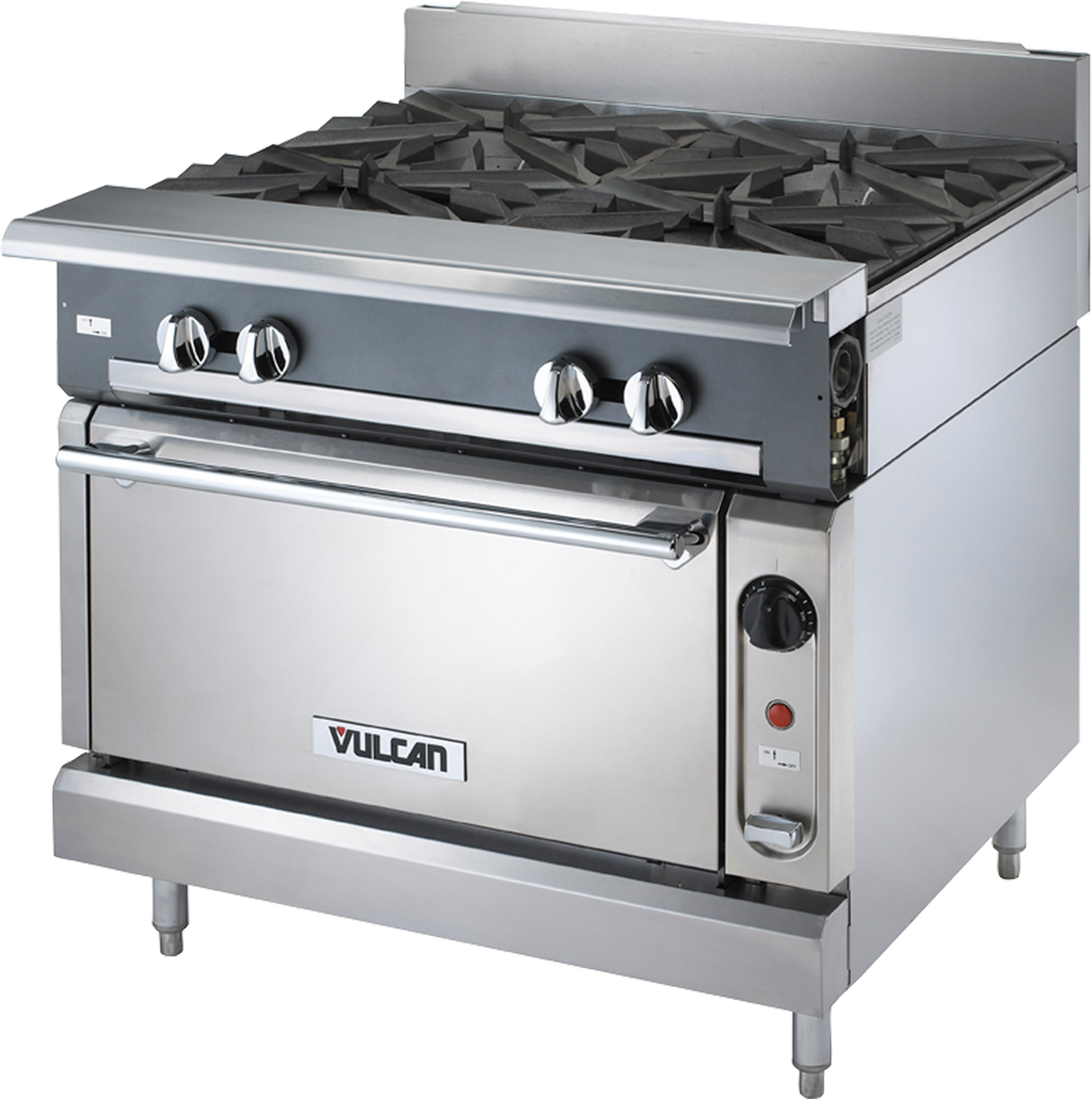

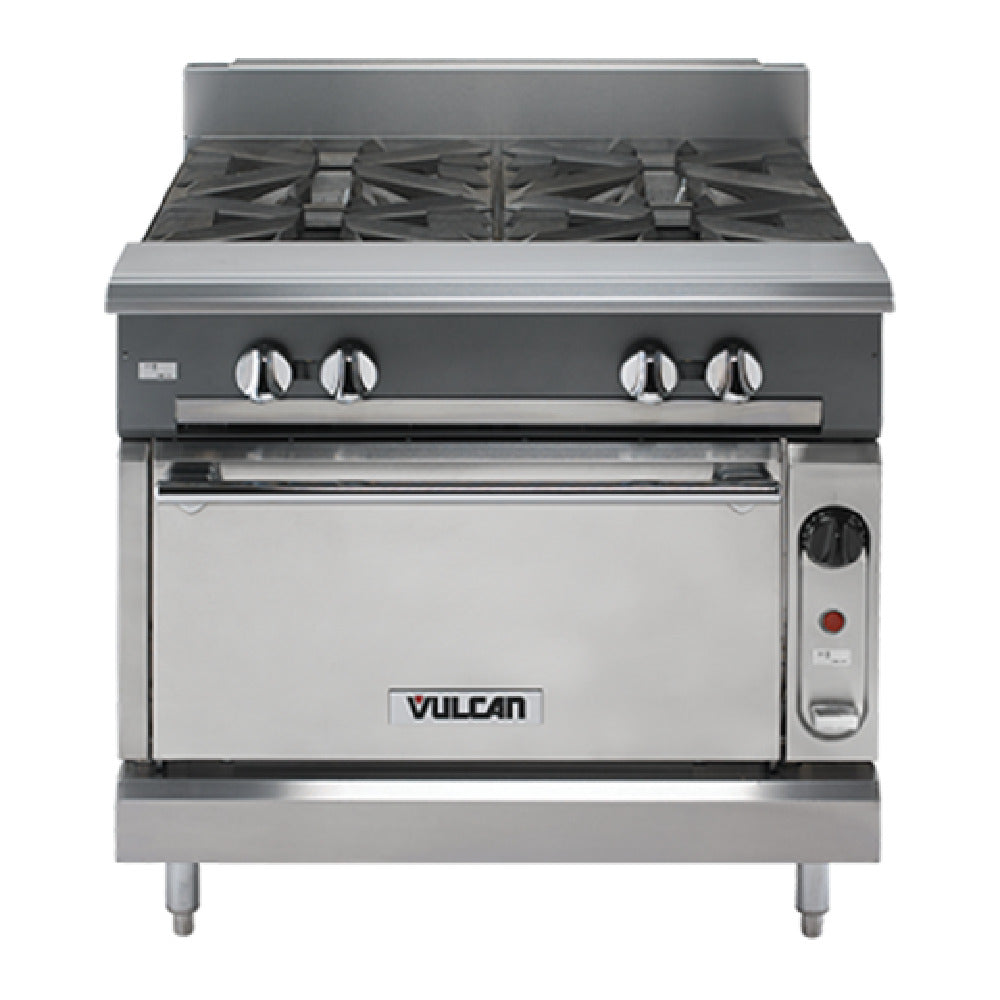

Vulcan V4B36S Liquid Propane V Series 36" Wide Standard Oven Base 4 Cast Iron Open Burner Stainless Steel Range On Legs, 190,000 BTU

Item
#173401
MFG
#V4B36S_LP
Specification Specifications
Ship Weight 715 lb
Manufacturer Vulcan
Model Number V4B36S
Manufacturer Part # V4B36S
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 36 Inches
Width 36 Inches
Depth 36 3/4 Inches
Base Material Stainless Steel
Color Silver
Base Type Standard Oven Base
Oven Interior Height 13 Inches
Oven Interior Width 27 Inches
Oven Interior Depth 27 Inches
Oven BTU 50,000
Burner Type Open Burner
Number Of Burners 4
Burner BTU 35,000
Burner Material Cast Iron
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas / Electric
Total BTU 190,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Liquid Propane
Regulator Included No
Voltage 115
Phase 1
Amps 4
Power Cord Length 9 ft
Plug NEMA 5-15P
Legs 6" Adjustable Stainless Steel Legs
Brand Line V Series
View all Specifications
Description

This gas open burner range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

The V4B36S is the heavy-duty V Series 36" wide gas-powered open burner range from Vulcan that has a Standard oven base, and 4 cast iron open burners with individual pilots and controls. This oven base range stands firmly on 6" adjustable stainless steel legs.

There is durable stainless steel construction on the front, front top ledge, sides, base, burner box, and 4" high stub riser of this open burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

The blower motor on the convection oven of this open burner range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep. This commercial gas open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V4B36S commercial gas open burner range operates on Liquid Propane at 50,000 BTU for the Standard oven, and 35,000 BTU per burner, for a total of 190,000 BTU. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

Vulcan V4B36S Features

  • V Series heavy-duty 36" wide range
  • Base Type: Standard Oven Base
  • Power Type: Gas / Electric
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Burner Material: Cast iron
  • Number of Burners: 4
  • Burner BTU: 35,000
  • Individual burner pilots and controls
  • Oven BTU: 50,000
  • Oven Interior Size: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Gas Type: Liquid Propane
  • Total BTU: 190,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V4B36S Benefits

  • Energy-efficient heavy-duty burners
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$12,533.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Burner Material: Cast iron
  • Individual burner pilots and controls
  • V Series heavy-duty 36" wide range
  • Base Type: Standard Oven Base
  • Gas Type: Liquid Propane
  • Oven BTU: 50,000
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Total BTU: 190,000
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Number of Burners: 4
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • Burner BTU: 35,000
  • NSF listed for safety
  • Warranty Info
    1 Year Parts and Labor Warranty
