Vulcan V336HS Natural Gas V Series Standard Oven Base 36" Wide 3-Burner Full Hot Top Heavy-Duty Stainless Steel Range On Adjustable Legs, 140,000 BTU

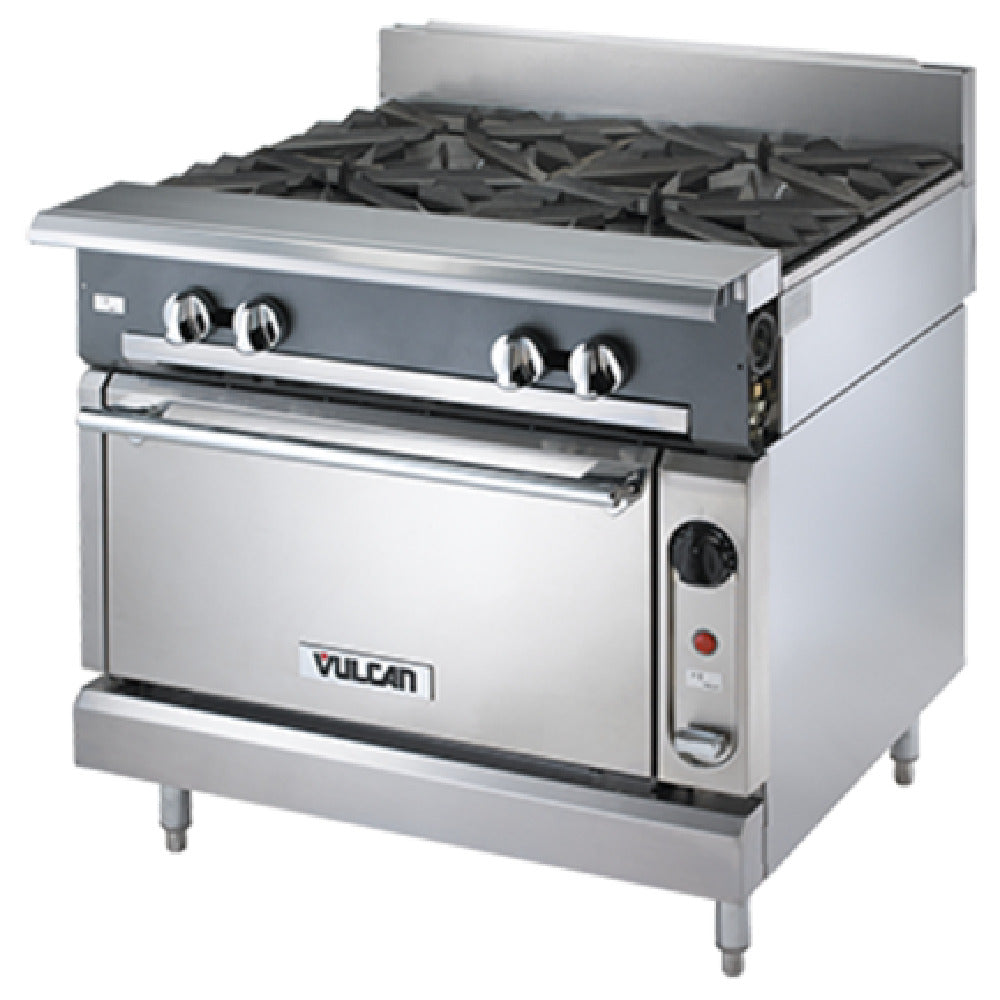

Convection Oven Base Model With Casters Shown
Specification Specifications
Ship Weight 615 lb
Manufacturer Vulcan
Model Number V336HS
Manufacturer Part # V336HS
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 40 1/2 Inches
Width 36 Inches
Depth 41 7/8 Inches
Material Stainless Steel
Color Silver
Base Type Standard Oven Base
Standard Oven Interior Height 13 Inches
Standard Oven Interior Width 27 Inches
Standard Oven Interior Depth 27 Inches
Oven BTU 50,000
Burner Type Full Hot Top
Number Of Burners 3
Burner BTU 30,000
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas / Electric
Total BTU 140,000
Gas Connection 1 1/4" Diameter
Gas Type Natural Gas
Regulator Included No
Legs 6" Adjustable Legs
Voltage 115
Phase 1
Amps 4
Power Cord Length 9 ft
Plug NEMA 5-15P
Brand Line V Series
View all Specifications

The V336HS is the heavy-duty V Series 36" wide gas-powered full hot top range from Vulcan that has a Standard oven base and 3 burners with individual pilots and controls. The range stands firmly on 6" adjustable legs.

The blower motor on the Standard oven of this hot top range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug.

This hot top range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this hot top range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This commercial gas hot top range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V336HS commercial gas hot top range operates on Natural Gas at 50,000 BTU for the Standard oven and 90,000 BTU/hr for the burners (30,000 BTU per burner) for a total of 140,000 BTU for the unit. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep with a 175 to 550 degree F temperature range.

Vulcan V336HS Features

  • V Series heavy-duty 36" wide full hot top range
  • Base Type: Convection Oven
  • Number of Burners: 3
  • Gas Type: Natural Gas
  • Base Material: Stainless Steel
  • Individual burner pilots and controls
  • Standard Oven BTU: 50,000
  • Standard Oven Temperature Range: 150 to 550 degree F
  • Standard Oven Interior Size: 13" high x 27" wide x 27" deep
  • Standard Oven Interior Material: Porcelain
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 9 ft power cord
  • Burner BTU: 30,000
  • CSA Design certified
  • 6" adjustable legs
  • Total BTU: 140,000
  • Gas Connection: 1 1/4" diameter rear gas connection
  • 4" stainless steel stub riser
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V336HS Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 40 1/2"
Width: 36"
Depth: 41 7/8"

Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
This unit comes with a NEMA 5-15P plug.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
Lead time varies; contact our team with your ZIP code for more info.
  • V Series heavy-duty full hot top range
  • Standard Oven BTU: 50,000
  • Gas Type: Natural Gas
  • Number of Burners: 3
  • Base Material: Stainless Steel
  • Individual burner pilots and controls
  • Convection Oven BTU: 32,000
  • Gas Connection: 1 1/4" diameter rear gas connection
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
  • Porcelain oven interior
  • Total BTU: 140,000
  • 4" stainless steel stub riser
  • Warranty Info
    1 Year Parts and Labor Warranty
