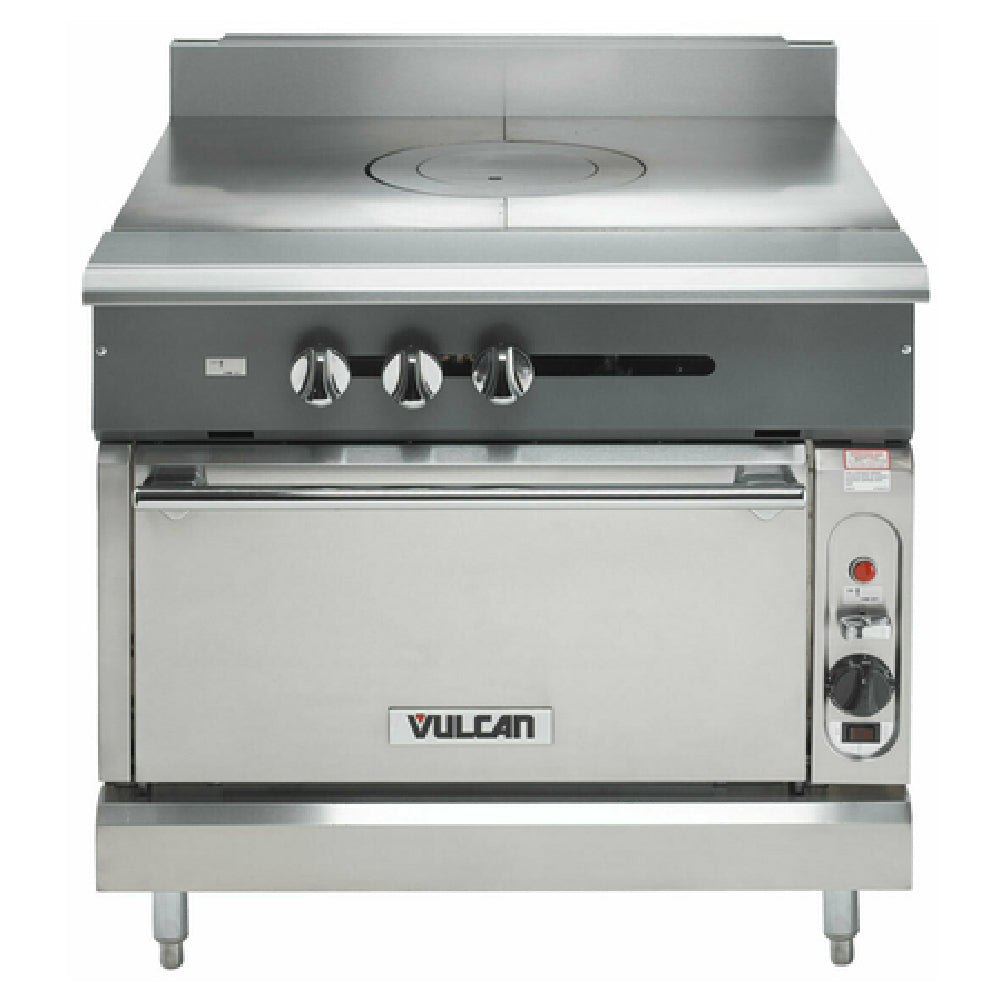

Vulcan V2P36S Liquid Propane V Series 36" Wide Standard Oven Base Dual 1/2" Thick Steel Plancha Heavy-Duty Stainless Steel Range On 6" Legs, 85,000 BTU

Item
#173423
MFG
#V2P36S_LP
Specification Specifications
Ship Weight 685 lb
Manufacturer Vulcan
Model Number V2P36S
Manufacturer Part # V2P36S
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 36 Inches
Width 36 Inches
Depth 36 3/4 Inches
Base Material Stainless Steel
Color Silver
Base Type Standard Oven Base
Number Of Burners 2
Burner BTU 17,500
Burner Type Plancha Top
Burner Material Steel
Oven Interior Height 13 Inches
Oven Interior Width 27 Inches
Oven Interior Depth 27 Inches
Oven BTU 50,000
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas
Total BTU 85,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Liquid Propane
Regulator Included No
Legs 6" Adjustable Stainless Steel Legs
Brand Line V Series
View all Specifications
Description

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

The V2P36S is the heavy-duty V Series 36" wide gas-powered Plancha top range from Vulcan that has a Standard oven base, and two 1/2" thick 18" wide steel plancha tops with individual pilots and controls, and a 3-sided grease trough. This range stands firmly on 6" adjustable stainless steel legs.

The oven has a porcelain interior that is 13" high x 27" wide x 27" deep. The blower motor on the oven of this range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug.

There is durable stainless steel construction on the front, front top ledge, sides, base, burner box, and 4" high stub riser of this Plancha top burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

This commercial gas open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V2P36S commercial gas Plancha top burner range operates on Liquid Propane at 50,000 BTU for the Standard oven, and 17,500 BTU for each Plancha top for a total 85,000 BTU for the unit. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

This gas Plancha top burner range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

Vulcan V2P36S Features

  • V Series heavy-duty 36" wide range
  • Base Type: Standard Oven Base
  • Power Type: Gas / Electric
  • Base Material: Stainless Steel
  • Burner Type: Plancha Top burner
  • Burner Material: Steel
  • Plancha Burner Width: 18"
  • Number of Plancha Burners: 2
  • 3-sided grease trough
  • Burner BTU: 17,500
  • Individual burner pilots and controls
  • Oven BTU: 50,000
  • Oven Interior Size: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Gas Type: Liquid Propane
  • Total BTU: 85,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V2P36S Benefits

  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Energy-efficient heavy-duty burners
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$13,970.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Gas Type: Liquid Propane
  • Oven BTU: 50,000
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Total BTU: 85,000
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • Burner Type: Plancha Top burner
  • Burner Material: Steel
  • NSF listed for safety
  • Individual burner pilots and controls
  • V Series heavy-duty 36" wide range
  • Base Type: Standard Oven Base
  • Warranty Info
    1 Year Parts and Labor Warranty
