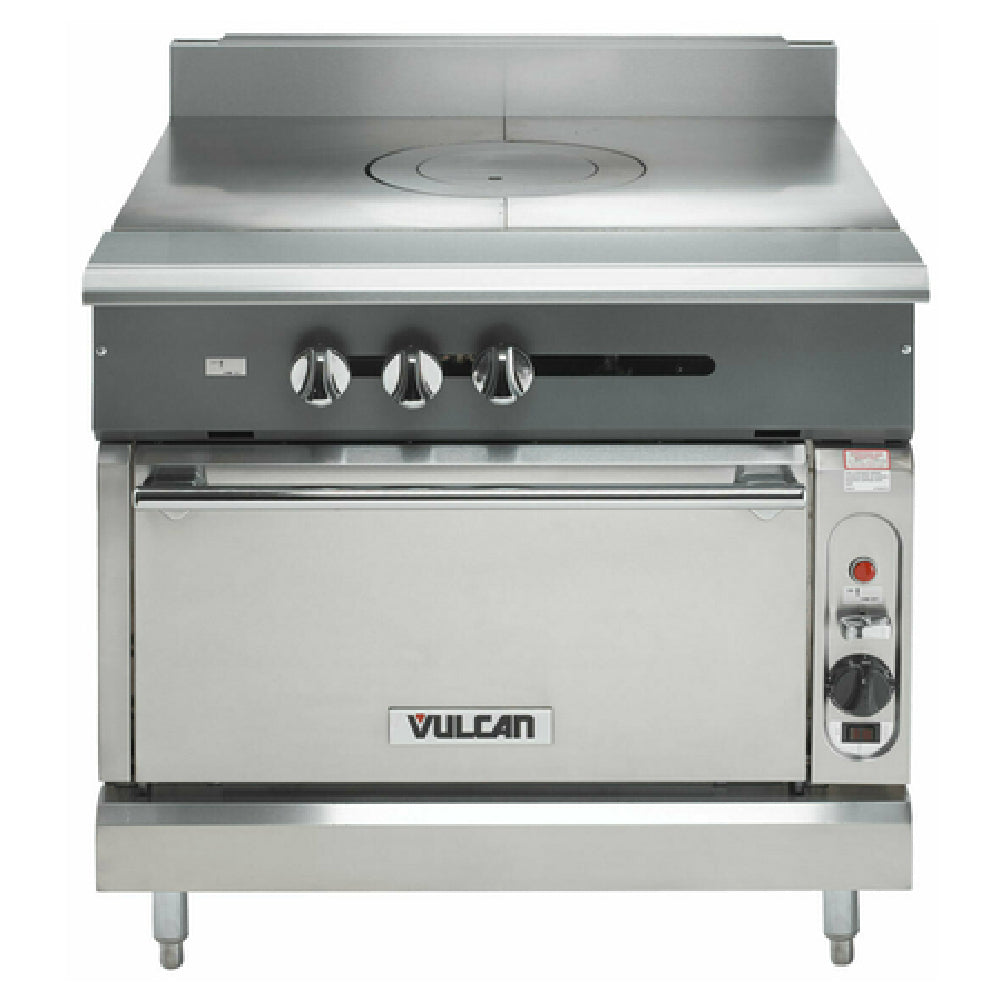

Vulcan V2P36C Liquid Propane V Series 36" Wide Convection Oven Base Dual 1/2" Thick Steel Plancha Heavy-Duty Stainless Steel Range On 6" Legs, 67,000 BTU

Item
#173425
Universal Item
#
MFG
#V2P36C_LP
Description

There is durable stainless steel construction on the front, front top ledge, sides, base, burner box, and 4" high stub riser of this French top burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

This commercial gas open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V2P36C commercial gas French top burner range operates on Liquid Propane at 32,000 BTU for the Convection oven, and 17,500 BTU for each Plancha top for a total 67,000 BTU for the unit. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

This gas French top burner range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

The V2P36C is the heavy-duty V Series 36" wide gas-powered Plancha top range from Vulcan that has a Convection oven base, and two 1/2" thick 18" wide steel plancha tops with individual pilots and controls, and a 3-sided grease trough. This range stands firmly on 6" adjustable stainless steel legs.

The oven has a porcelain interior that is 13" high x 27" wide x 27" deep. The blower motor on the oven of this range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug.

Vulcan V2P36C Features

  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • Power Type: Gas / Electric
  • Base Material: Stainless Steel
  • Burner Type: Plancha Top burner
  • Burner Material: Steel
  • Plancha Burner Width: 18"
  • Number of Plancha Burners: 2
  • 3-sided grease trough
  • Burner BTU: 17,500
  • Individual burner pilots and controls
  • Oven BTU: 32,000
  • Oven Interior Size: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Gas Type: Liquid Propane
  • Total BTU: 67,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V2P36C Benefits

  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Energy-efficient heavy-duty burners
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Add to Wishlist
Free Shipping
Add this item to the cart to calculate your shipping rate
$19,267.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Burner Material: Steel
  • NSF listed for safety
  • Individual burner pilots and controls
  • Total BTU: 67,000
  • Gas Type: Liquid Propane
  • Oven BTU: 32,000
  • Oven Interior: 13" high x 27" wide x 27" deep
  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • Burner Type: Plancha Top burner
Warranty Info
1 Year Parts and Labor Warranty
