Vulcan V2BG18C Natural Gas V Series 36" Wide Convection Oven Base Manual-Control 18" Wide Griddle 2 Cast Iron Open Burner Heavy-Duty Stainless Steel Range On 6" Legs, 132,000 BTU

Item
#173464
MFG
#V2BG18C_NAT

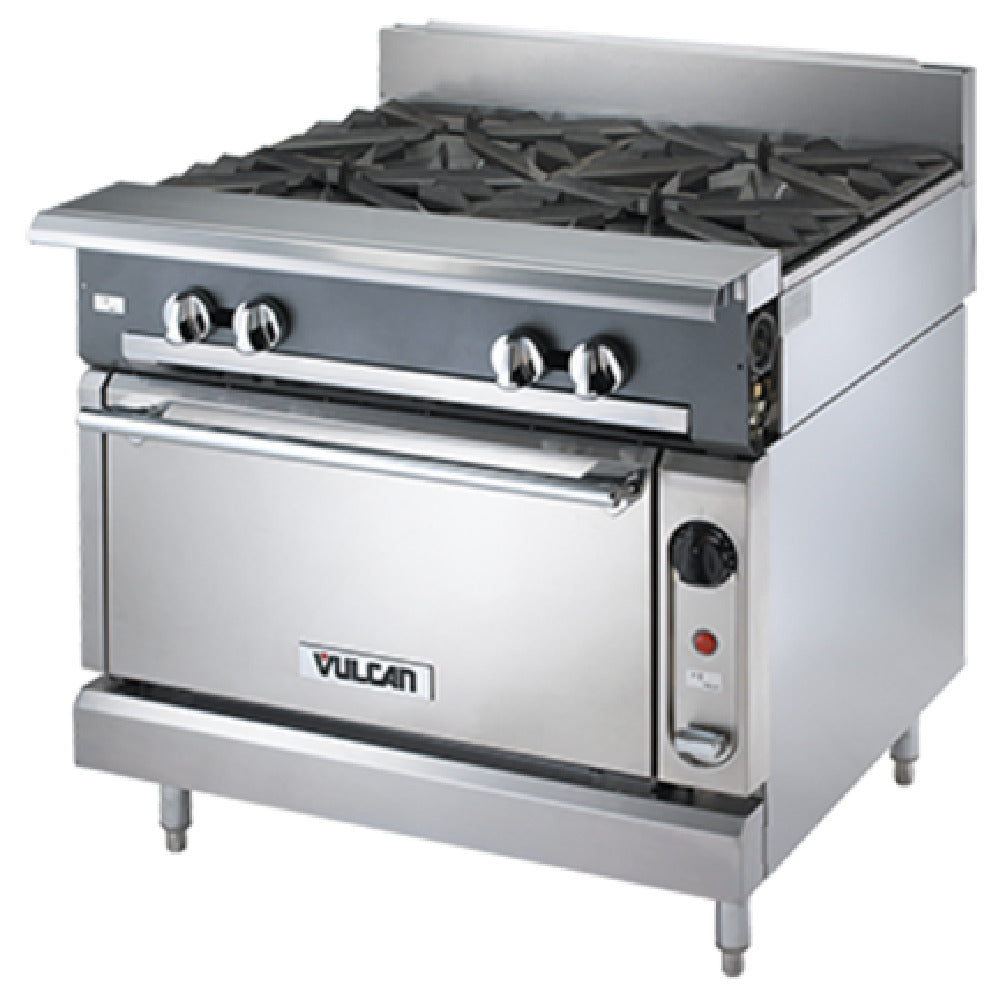

Caster Model Shown
Specification Specifications
Ship Weight 691 lb
Manufacturer Vulcan
Model Number V2BG18C
Manufacturer Part # V2BG18C
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 40 1/2 Inches
Width 36 Inches
Depth 41 7/8 Inches
Base Material Stainless Steel
Color Silver
Control Type Manual
Base Type Convection Oven Base
Oven Interior Height 13 Inches
Oven Interior Width 27 Inches
Oven Interior Depth 27 Inches
Oven BTU 32,000
Burner Type Open Burner
Number Of Burners 2
Burner BTU 35,000
Burner Material Cast Iron
Number Of Griddle Plates 1
Griddle Plate Width 18 Inches
Griddle Plate BTU 35,000
Griddle Plate Thickness 3/4 Inches
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas / Electric
Total BTU 132,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Natural Gas
Regulator Included No
Voltage 115
Phase 1
Amps 4
Power Cord Length 9 ft
Plug NEMA 5-15P
Legs 6" Adjustable Stainless Steel Legs
Brand Line V Series
View all Specifications
Description

This V2BG18C commercial gas Open burner / Griddle range operates on Natural Gas at 32,000 BTU for the convection oven, and 35,000 BTU per burner, and 30,000 BTU for the griddle, for a total of 132,000 BTU. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

The blower motor on the convection oven of this Open burner / Griddle range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep with a 175 to 550 degree F temperature range. This commercial gas Open burner / Griddle range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This gas Open burner / Griddle range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

The V2BG18C is the heavy-duty V Series 36" wide gas-powered Open burner / Griddle range from Vulcan that has a Convection Oven base, manual controls, an 18" wide 3/4" thick ground steel griddle plate, and 2 cast iron open burners with individual pilots and controls. This oven base range stands firmly on 6" adjustable stainless steel legs.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this Open burner / Griddle range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

Vulcan V2BG18C Features

  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • Control Type: Manual
  • Power Type: Gas / Electric
  • Base Material: Stainless Steel
  • Burner Type: Open burner / Griddle
  • Burner Material: Cast iron
  • Number of Burners: 2
  • Burner BTU: 35,000
  • Individual burner pilots and controls
  • Number of Griddle Plates: 1
  • Griddle Plate Width: 18"
  • Griddle Plate BTU: 30,000
  • Convection Oven BTU: 32,000
  • Convection Oven Temperature Range: 175 to 550 degree F
  • Convection Oven Interior Size: 13" high x 27" wide x 27" deep
  • Convection Oven Interior Material: Porcelain
  • Gas Type: Natural Gas
  • Total BTU: 132,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V2BG18C Benefits

  • Energy-efficient heavy-duty burners
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 40 1/2"
Width: 36"
Depth: 41 7/8"

Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$18,338.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Base Type: Convection Oven Base
  • Gas Type: Natural Gas
  • Total BTU: 132,000
  • V Series heavy-duty 36" wide range
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
  • Burner Material: Cast iron
  • Number of Burners: 2
  • Burner BTU: 35,000
  • Number of Griddle Plates: 1
  • Griddle Plate Width: 18"
  • Griddle Plate BTU: 30,000
  • Individual burner pilots and controls
  • Convection Oven BTU: 32,000
  • Oven Temperature Range: 175 to 550 degree F
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Warranty Info
    1 Year Parts and Labor Warranty
