Vulcan V2B12 Natural Gas V Series 12" Wide Modular Frame 2 Cast Iron Open Burner Stainless Steel Range Without Legs, 70,000 BTU

Item
#173476
MFG
#V2B12_NAT

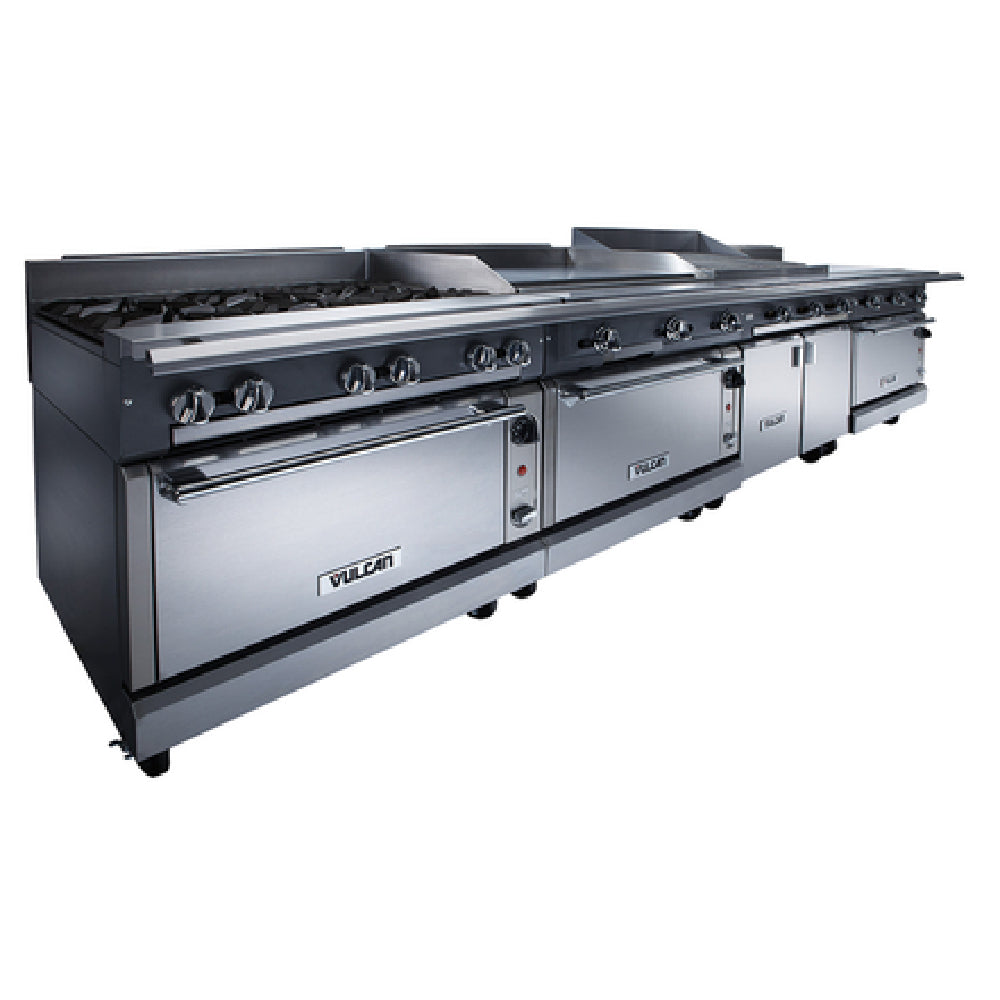

Cabinet Base With Legs Shown
Specification Specifications
Ship Weight 110 lb
Manufacturer Vulcan
Model Number V2B12
Manufacturer Part # V2B12
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 13 3/4 Inches
Width 12 Inches
Depth 36 3/4 Inches
Base Material Stainless Steel
Color Silver
Base Type Modular Frame
Number Of Burners 2
Burner BTU 35,000
Burner Type Open Burner
Burner Material Cast Iron
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas
Total BTU 70,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Natural Gas
Regulator Included No
Legs None
Brand Line V Series
View all Specifications
Description

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this open burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

The V2B12 is the heavy-duty V Series 12" wide gas-powered Open burner range from Vulcan that has a modular frame and 2 cast iron open burners with individual pilots and controls. This modular range comes without legs.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This commercial gas Open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V2B12 commercial gas Open burner range operates on Natural Gas at 70,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

Vulcan V2B12 Features

  • V Series heavy-duty 12" wide range
  • Base Type: Modular Frame
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Burner Material: Cast iron
  • Number of Burners: 2
  • Individual burner pilots and controls
  • Gas Type: Natural Gas
  • Total BTU: 70,000
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V2B12 Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 13 3/4"
Width: 12"
Depth: 36 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$4,055.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Number of Burners: 2
  • Individual burner pilots and controls
  • NSF listed for safety
  • Total BTU: 70,000
  • 4" stainless steel stub riser
  • V Series heavy-duty 12" wide range
  • Gas Type: Natural Gas
  • Gas Connection: 1 1/4"
  • CSA Design & CSA Blue Flame certified
  • Base Type: Modular Frame
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Burner Material: Cast iron
  • Warranty Info
    1 Year Parts and Labor Warranty
