Vulcan V224H Natural Gas V Series Modular Frame 24" Wide 2-Burner Full Hot Top Heavy-Duty Stainless Steel Range On Adjustable Legs, 60,000 BTU

Item
#173492
MFG
#V224H_NAT

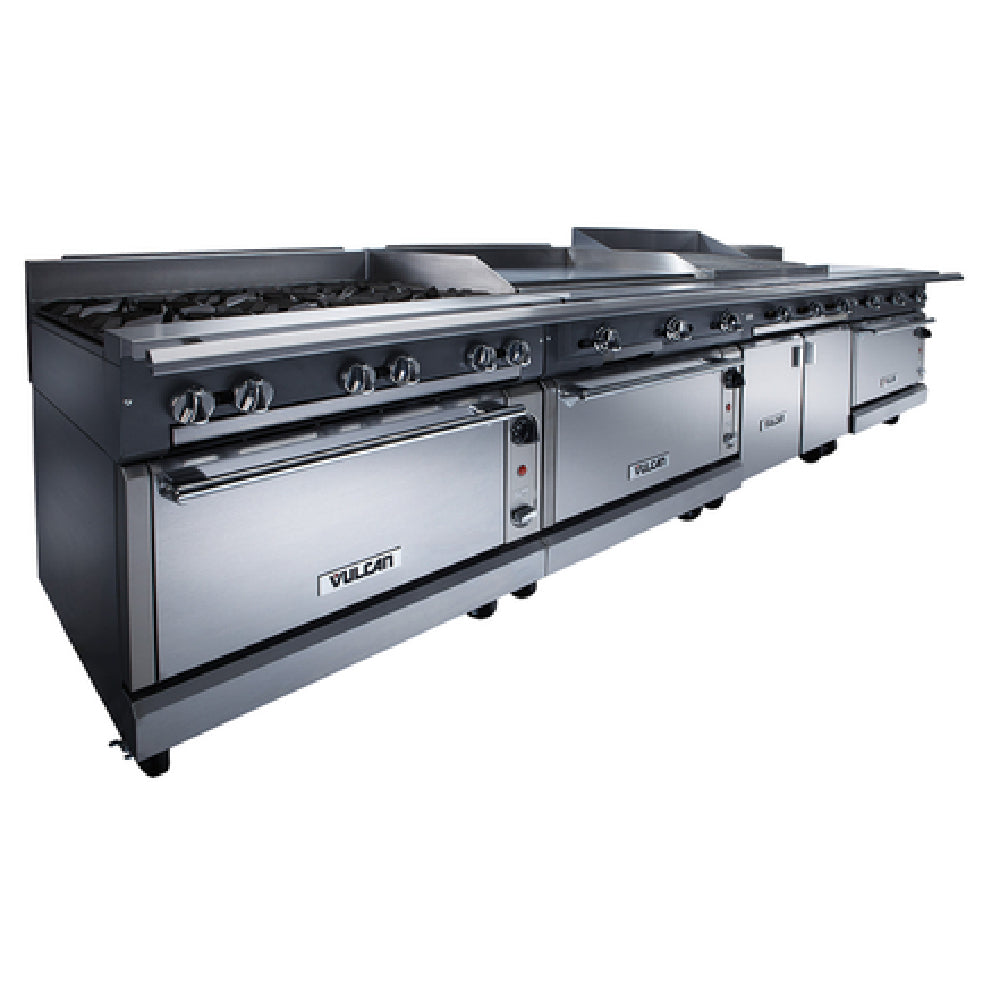

Cabinet Base Model Shown
Specification Specifications
Ship Weight 250 lb
Manufacturer Vulcan
Model Number V224H
Manufacturer Part # V224H
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 13 3/4 Inches
Width 24 Inches
Depth 36 3/4 Inches
Material Stainless Steel
Color Silver
Base Type Modular Frame
Number Of Burners 2
Burner BTU 30,000
Burner Type Full Hot Top
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas
Total BTU 60,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Natural Gas
Regulator Included No
Brand Line V Series
View all Specifications
Description

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This commercial gas hot top range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V224H commercial gas hot top range operates on Natural Gas at 60,000 BTU/hr (30,000 BTU per burner) and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this hot top range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

The V224H is the heavy-duty V Series 24" wide gas-powered full hot top range from Vulcan that has a modular frame and 2 burners with individual pilots and controls. The range stands firmly on adjustable legs with flanged feet.

Vulcan V224H Features

  • V Series heavy-duty 24" wide full hot top range
  • Base Type: Modular Frame
  • Base Material: Stainless Steel
  • Number of Burners: 2
  • Individual burner pilots and controls
  • Gas Type: Natural Gas
  • Burner BTU: 30,000
  • Total BTU: 60,000
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V224H Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 13 3/4"
Width: 24"
Depth: 36 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$6,875.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Individual burner pilots and controls
  • Gas Type: Natural Gas
  • Total BTU: 60,000
  • 4" stainless steel stub riser
  • V Series heavy-duty full hot top range
  • Gas Connection: 1 1/4" diameter rear gas connection
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
  • Base Type: Modular frame
  • Number of Burners: 2
  • Base Material: Stainless Steel
  • Warranty Info
    1 Year Parts and Labor Warranty
