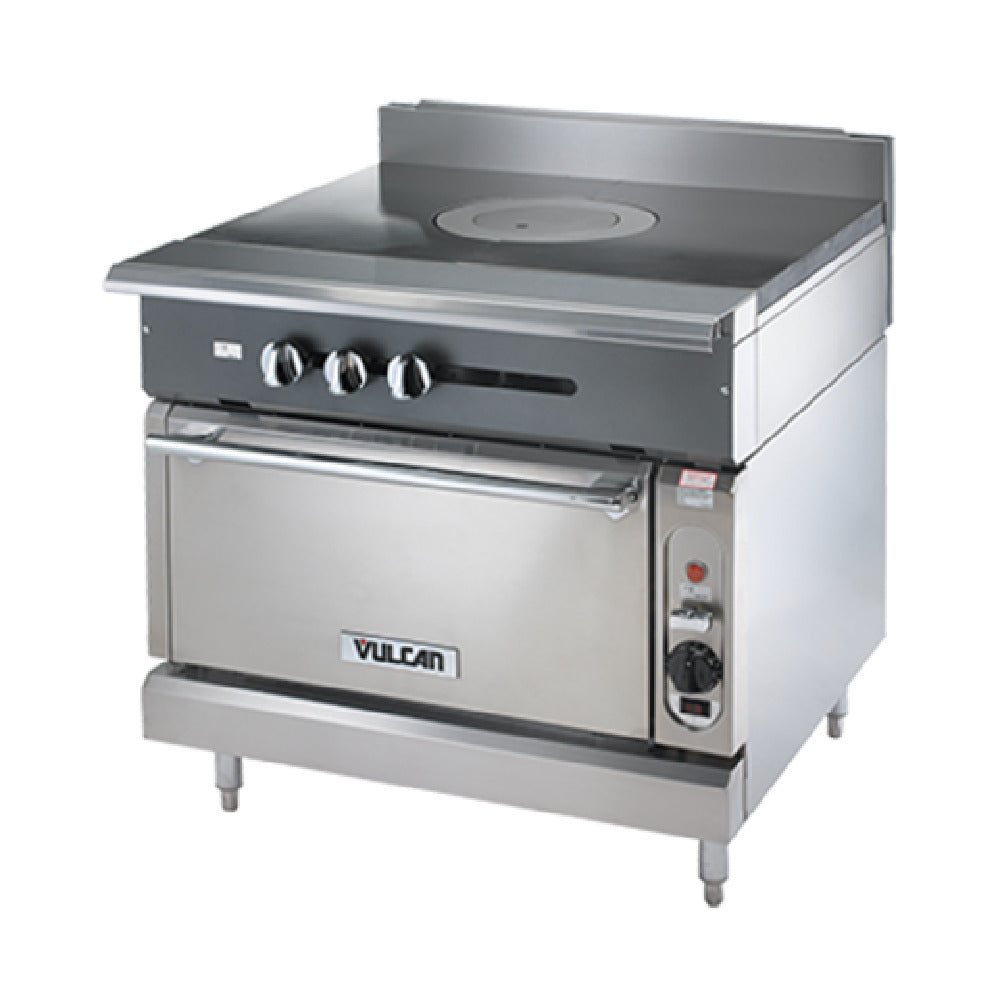

Vulcan V1FT36C Natural Gas V Series 36" Wide Convection Oven Base Radial Fin French Top Burner Stainless Steel Range On Legs, 77,000 BTU

Item
#173500
MFG
#V1FT36C_NAT
Caster Model Shown
Specification Specifications
Ship Weight 685 lb
Manufacturer Vulcan
Model Number V1FT36C
Manufacturer Part # V1FT36C
Hazardous Material No
Oversized Shipping No
Type Commercial Gas Range
Height 36 Inches
Width 36 Inches
Depth 36 3/4 Inches
Base Material Stainless Steel
Color Silver
Base Type Convection Oven Base
Oven Interior Height 13 Inches
Oven Interior Width 27 Inches
Oven Interior Depth 27 Inches
Oven BTU 32,000
Burner Type Radial Fin French Top
Number Of Burner Rings 3
French Top Burner BTU 45,000
Burner Material Cast Iron
CSA Design Certified Yes
CSA Blue Flame Certified Yes
NSF Listed Yes
Riser Height 4 Inches
Power Gas / Electric
Total BTU 77,000
Gas Connection 1 1/4" Diameter Rear Gas Connection
Gas Type Natural Gas
Regulator Included No
Voltage 115
Phase 1
Amps 4
Power Cord Length 9 ft
Plug NEMA 5-15P
Legs 6" Adjustable Stainless Steel Legs
Brand Line V Series
View all Specifications
Description

The V1FT36C is the heavy-duty V Series 36" wide gas-powered radial fin French top range from Vulcan that has a convection oven base, and a 3-ring radial fin French top burner with individual pilots and controls. This range stands firmly on 6" adjustable stainless steel legs.

The blower motor on the convection oven of this open burner range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep with a 175 to 550 degree F temperature range.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This commercial gas radial fin French top range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

There is a 4" stainless steel stub riser on this unit and the durable stainless steel construction of the front, front top ledge, sides, base, burner box, and stub back on this radial fin French top range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

This V1FT36C commercial gas radial fin French top range operates on Natural Gas at 32,000 BTU for the convection oven, 45,000 BTU for the French top burner for a total 77,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

Vulcan V1FT36C Features

  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • Base Material: Stainless Steel
  • Burner Type: Radial fin French top
  • Burner Material: Cast iron
  • Number of Burner Rings: 3
  • Burner BTU: 45,000
  • Individual burner pilot and controls
  • Oven BTU: 32,000
  • Oven Temperature Range: 175 to 550 degree F
  • Oven Interior Size: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Gas Type: Natural Gas
  • Total BTU: 77,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V1FT36C Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
1 1/4" Gas Connection
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection.
CSA Blue Flame
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$17,656.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Total BTU: 77,000
  • Base Type: Convection Oven Base
  • Oven BTU: 32,000
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Oven Interior Material: Porcelain
  • Gas Connection: 1 1/4"
  • CSA Design & CSA Blue Flame certified
  • Base Material: Stainless Steel
  • Burner Type: Radial fin French top
  • Burner Material: Cast iron
  • Number of Burner Rings: 3
  • Burner BTU: 45,000
  • Individual burner pilots and controls
  • NSF listed for safety
  • 4" stainless steel stub riser
  • V Series heavy-duty 36" wide range
  • Gas Type: Natural Gas
  • Warranty Info
    1 Year Parts and Labor Warranty
