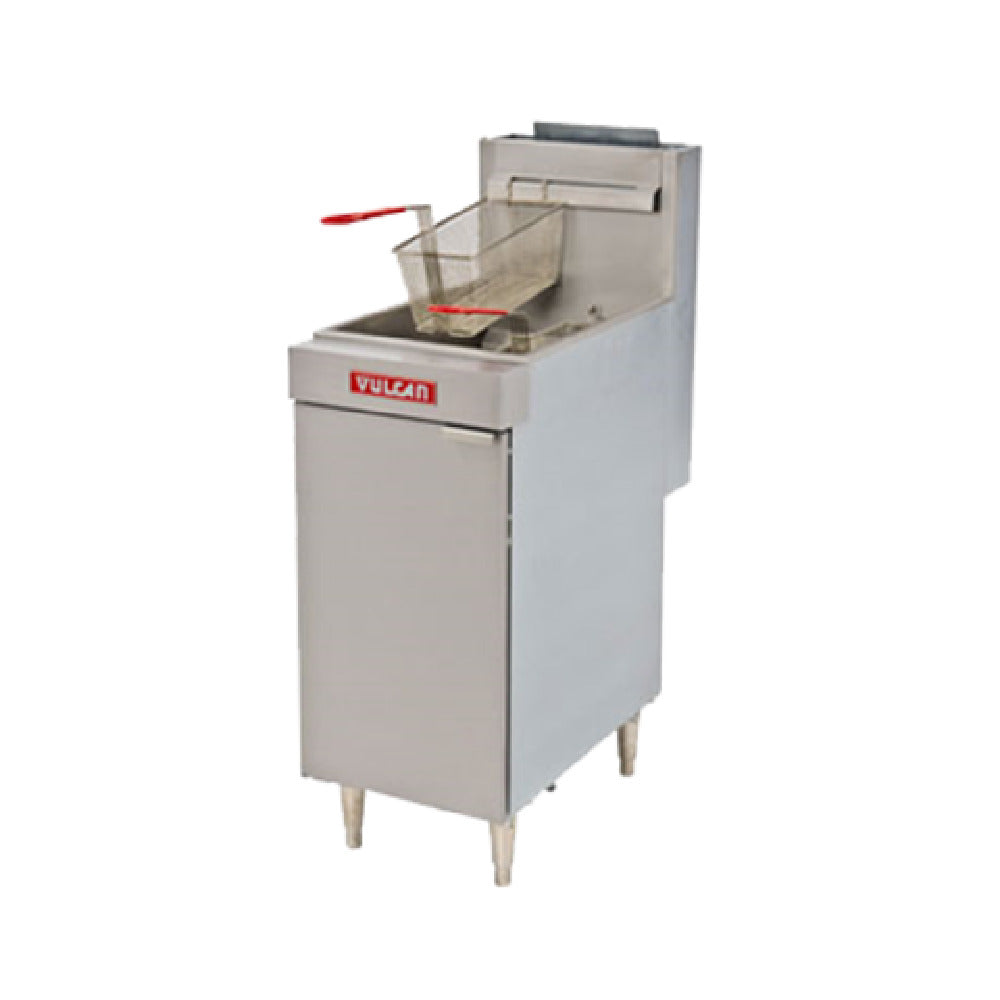

Vulcan LG400 LG Series Liquid Propane 15 1/2" Wide Freestanding Single-Tank 45-50 lb Oil Capacity Stainless Steel Commercial Gas Fryer On Nickel-Plated Legs With Millivolt Thermostat Controls, 120,000 BTU
|Ship Weight||210 lb|
|Manufacturer Part #||LG400|
|Type||Commercial Gas Fryers|
|Height||46 5/8 Inches|
|Width||15 1/2 Inches|
|Depth||29 3/4 Inches|
|Number Of Tanks||1|
|Oil Capacity||45-50 lb|
|Controls||Snap-Action Millivolt Thermostat Controls|
|Temperature Range||200 to 400 Degrees F|
|CSA Design Certified||Yes|
|CSA Blue Flame Certified||Yes|
|Brand Line||LG Series|
|Tank Size||14" x 14"|
|Gas Type||Liquid Propane|
|Gas Connections||1/2" NPT or 3/4" NPT|
|Baskets Included||Twin Baskets With Plastic-Coated Handles|
|Legs||4" Adjustable Nickel-Plated Legs|
The fryer is operated with snap-action millivolt thermostat controls behind the door that requires no electrical hookup to adjust temperatures between 200 to 400 degrees F with a standing pilot.
The large cold zone on the LG400 commercial gas fryer is designed to prolong oil life it has a 1 1/4" full port ball type drain valve.
The sides and back of this fryer feature a G90 high-grade galvanized non-corrosive finish. This commercial gas fryer is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
There is a stainless steel front top, stainless steel reinforced door, and stainless steel fry tank on this fryer unit with heat exchanger tubes that provide excellent heat transfer.
The LG400 is the 15 1/2" wide freestanding commercial gas fryer from Vulcan with twin baskets with plastic coated handles and a 14" x 14" tank with a 45 lb oil capacity. This freestanding commercial gas fryer stands firmly on a set of 4 adjustable nickel-plated legs.
This commercial gas fryer operates on Liquid Propane at 120,000 BTU/hr and it has both 1/2" NPT and 3/4" NPT rear gas connections. The 3/4" fitting can be removed to access the 1/2" connection. The fryer comes included with a combination valve with a pressure regulator.
Vulcan LG400 Features
- LG Series commercial gas fryer
- 15 1/2" wide
- Tank Size: 14" x 14"
- Installation Type: Freestanding
- Oil Capacity: 45-50 lb
- Gas Type: Liquid Propane
- BTU: 120,000
- Front Top, Door And Tank Material: Stainless Steel
- Snap-action millivolt thermostat controls
- Twin baskets with plastic coated handles
- G90 high-grade galvanized non-corrosive finished back and sides
- Temperature Range: 200 to 400 degrees F
- Gas Connections: 1/2" NPT or 3/4" NPT (remove 3/4" fitting for access to 1/2" connection)
- 4 adjustable nickel-plated legs
- Combination valve with pressure regulator included
- 1 1/4" full port ball type drain valve
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan LG400 Benefits
- No electrical connection required
- Large cold zone designed to prolong oil life
- Durable and corrosion-resistant stainless steel construction
- Heat exchanger tubes provide excellent heat transfer
Height: 46 5/8"
Width: 15 1/2"
Depth: 29 3/4"
- Liquid Propane
- Natural Gas
