Vulcan K60ELT 60 Gallon Tilting 2/3 Steam Jacketed Electric Kettle, 208v/60/3ph

Item
#173574
MFG
#K60ELT_208-60-3

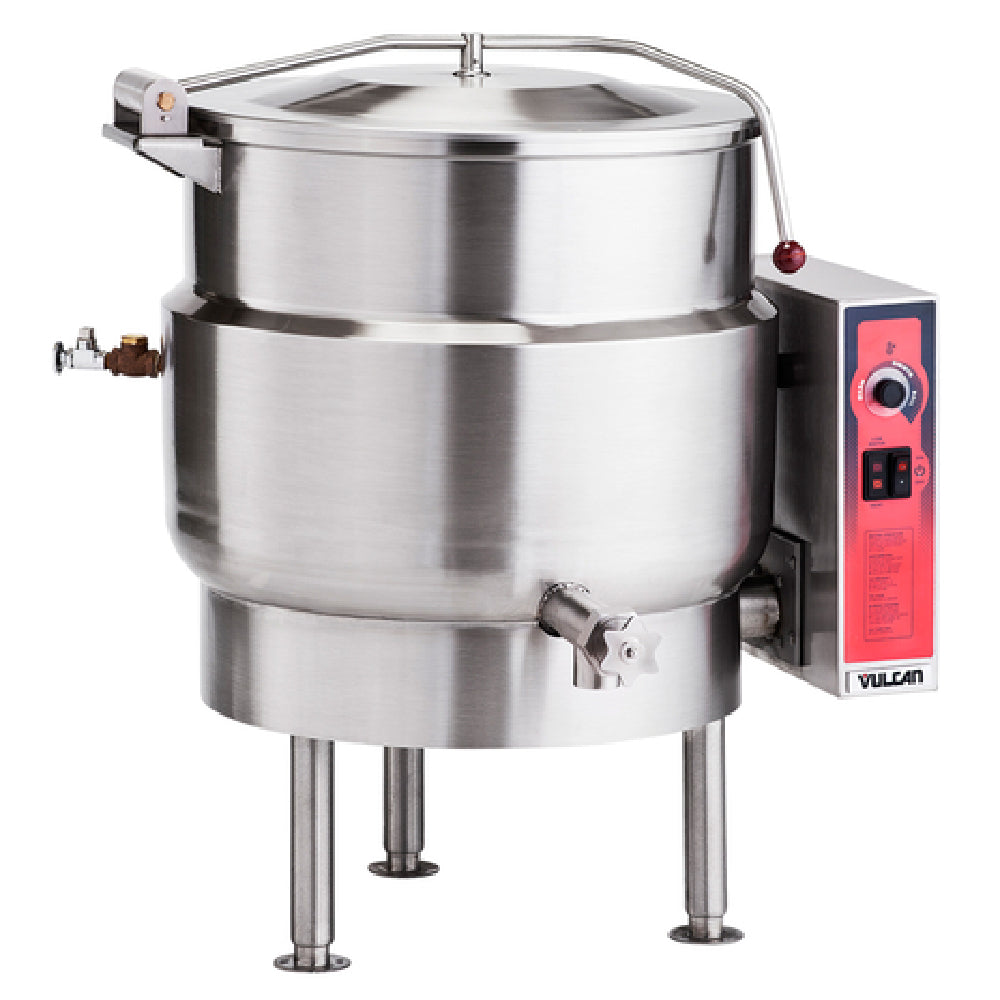

Note: Model K40ELT Shown
Specification Specifications
Ship Weight 417 LB
Manufacturer Vulcan
Model Number K60ELT
Manufacturer Part # K60ELT
Hazardous Materials No
Oversized Shipping No
Dimensions (HxWxD) 43-1/8" x 47" x 26-13/16"
Spatial Orientation Floor Model
Capacity 60 Gal.
Kettle Jacket 2/3
Steam Jacket Rating 50 PSI
Power Electric
Electrical 208v/60/3ph
Amps 50
Wattage 18 kW
Tilting Yes
Type Draw Off Valve
UL Listed Yes
View all Specifications
Description

The K60ELT is a Tilting Gas Kettle from Vulcan that runs on Electricity. This floor mounted kettle is constructed of stainless steel, including a 316 series steel liner. The liner includes an ellipsoidal bottom. The compression draw-off valve features a perforated strainer. True working capacity is 60 gallons. The model is 2/3 jacketed. The tubular legs feature flanged feet. This model tilts forward at an angle of 95°. The steam jacket contains treated and distilled water.

The various controls include solid state temperature control (with warm, simmer, and boil settings), a vacuum/pressure gauge, and a pressure relief valve. A light, and eventually a shut-off, will occur when water is low. The controls, as well as the faucet bracket, are in an enclosure to protect from water. Electrical specs are 208v/60/3ph. The unit UL listed, and meets NSF Standard #4.

Vulcan K60ELT Features

  • Floor Mounted Steam Kettle
  • Electric
  • 95° Manual Forward Tilt
  • Material: Stainless Steel
  • Capacity: 60 Gallons
  • Faucet Bracket
  • Heavy Bar Rim
  • 2/3 Jacket
  • 316 Series Stainless Steel Liner
  • Low Water Light & Shut-Off
  • Water Resistant Controls
  • Tubular Legs
  • Flanged Feet
  • Embossed Gallon/Liter Markings
  • Electrical: 208v/60/3ph
  • Field Convertible to Single Phase and/or 240 Volt
  • UL Listed


Overall Dimensions:

Width: 47 1/2"

Depth: 26 13/16"

Height: 43 1/8"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Hardwired
Hardwired
This product must be hardwired; it does not plug into a standard wall outlet.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$39,938.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Electric
  • 95° Manual Forward Tilt
  • Material: Stainless Steel
  • Capacity: 60 Gallons
  • Faucet Bracket
  • Heavy Bar Rim
  • 2/3 Jacket
  • 316 Series Stainless Steel Liner
  • Low Water Light & Shut-Off
  • Water Resistant Controls
  • Tubular Legs
  • Flanged Feet
  • Embossed Gallon/Liter Markings
  • Warranty Info
    One Year Limited Parts and Labor Warranty
