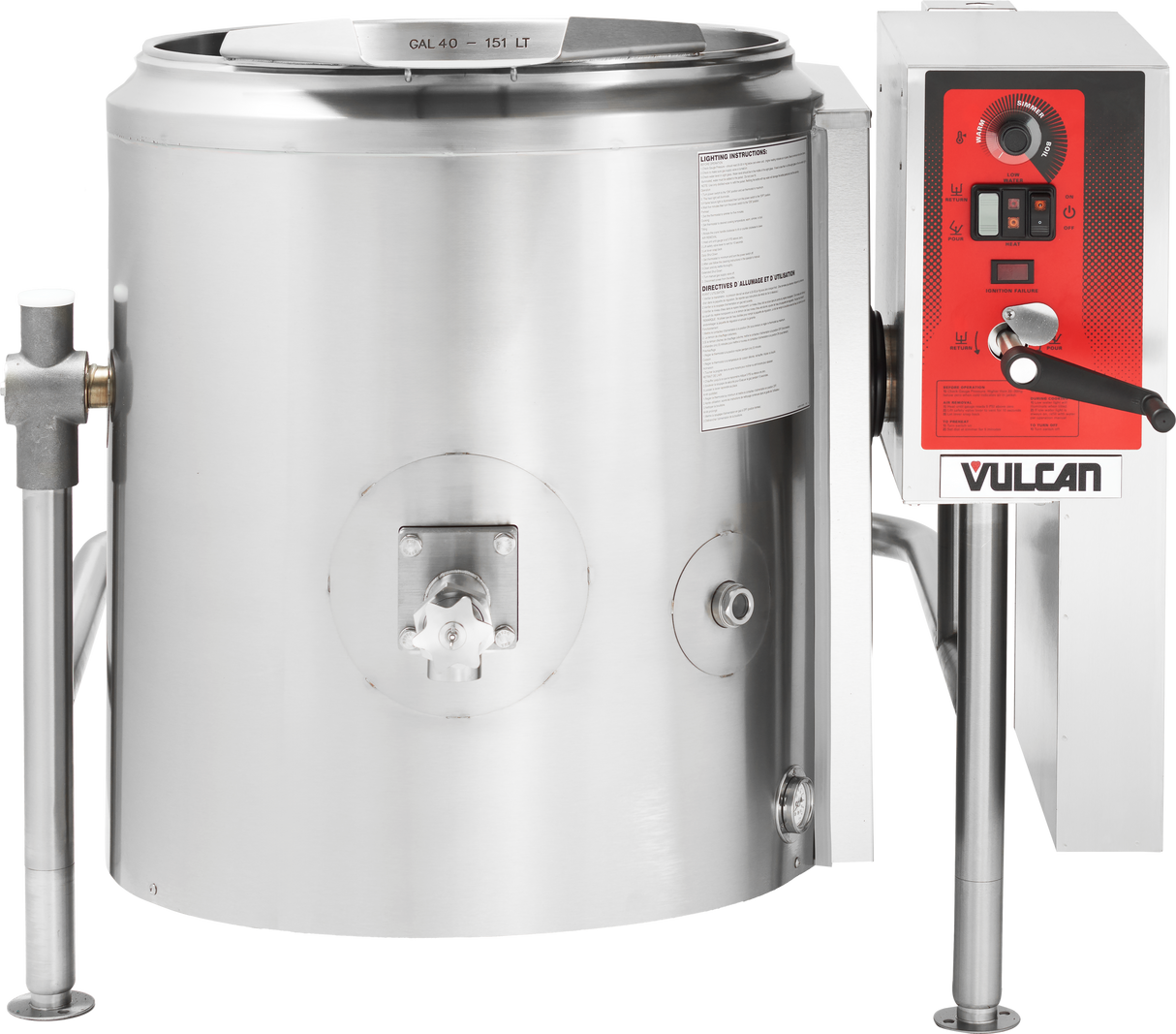

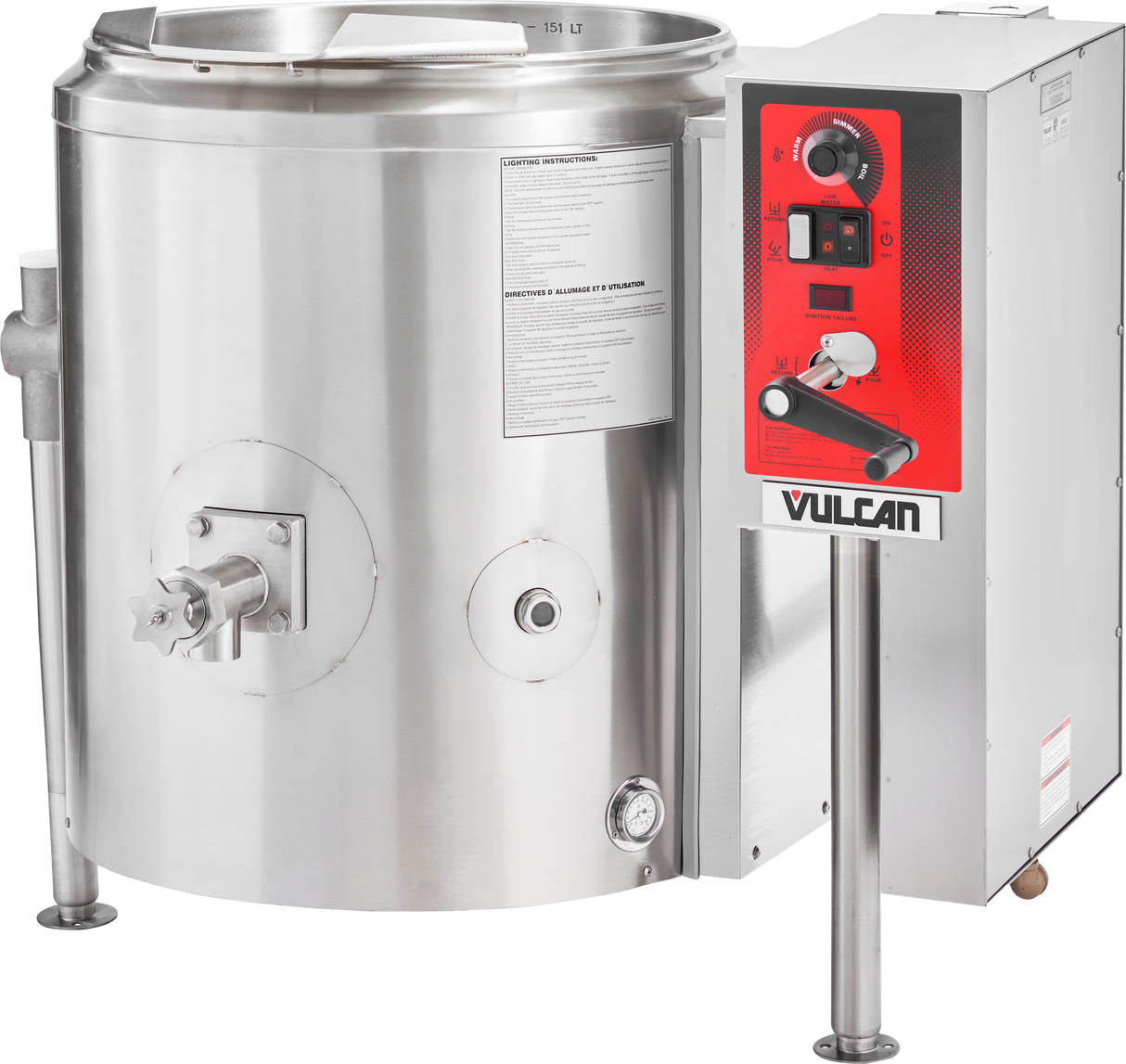

Vulcan K40GLT Gas 40 Gallon Tilting 2/3 Steam Jacketed Kettle - 100,000 BTU
| Ship Weight | 930 LB |
| Manufacturer | Vulcan |
| Model Number | K40GLT |
| Manufacturer Part # | K40GLT |
| Dimensions (HxWxD) | 39-7/8" x 46-13/16" x 28-13/16" |
| Capacity | 40 Gal. |
| Kettle Jacket | 2/3 | Steam Jacket Rating | 50 PSI |
| Power | Natural Gas |
| Convertible to Liquid Propane | Yes |
| BTU | 100,000 |
| Inlet Size | 1/2" |
| Heating System Efficiency | 64% to 68% |
| Tilting | Yes |
| Max Elevation | 8999 Feet |
| UL Listed | Yes |
The K40GLT is a Tilting Gas Kettle from Vulcan. This kettle is constructed of stainless steel, including a 316 series steel liner. The liner includes an ellipsoidal bottom. The compression draw-off valve features a perforated strainer. True working capacity is 40 gallons. The model is 2/3 jacketed. The tubular legs feature flanged feet. This model runs on 100,000 BTUs. It tilts forward at an angle of 95°. This model runs on natural gas, but is field convertible to liquid propane with Span Gas technology.
The various controls include solid state temperature control (with warm, simmer, and boil settings), a vacuum/pressure gauge, and a pressure relief valve. A light, and eventually a shut-off, will occur when water is low. The controls, as well as the faucet bracket, are in an enclosure to protect from water. The steam jacket contains treated and distilled water. This unit is designed for use up to 8,999 feet in elevation. It is certified to NSF Standard #4.
Vulcan K40GLT Features
- Steam Kettle
- 95°Forward Tilt
- Material: Stainless Steel
- Capacity: 40 Gallons
- Natural Gas
- Adjustable to Liquid Propane
- Tri-Leg Base
- Faucet Bracket
- Heavy Bar Rim
- 2/3 Jacket
- 316 Series Stainless Steel Liner
- Combination Gas Valve
- Low Water Light & Shut-Off
- Water Resistant Controls
- Flanged Feet
- Embossed Gallon/Liter Markings
- Yolk Style Mount
- 100,000 BTUs
- 110-120 Volts
- NSF
- UL Listed
Overall Dimensions:
Width: 46 13/16"
Depth: 28 13/16"
Height: 39 7/8"
