Vulcan GS60E Stationary 60 Gallon Fully Jacketed Liquid Propane Steam Kettle - 135,000 BTU

Item
#173649
MFG
#GS60E_LP

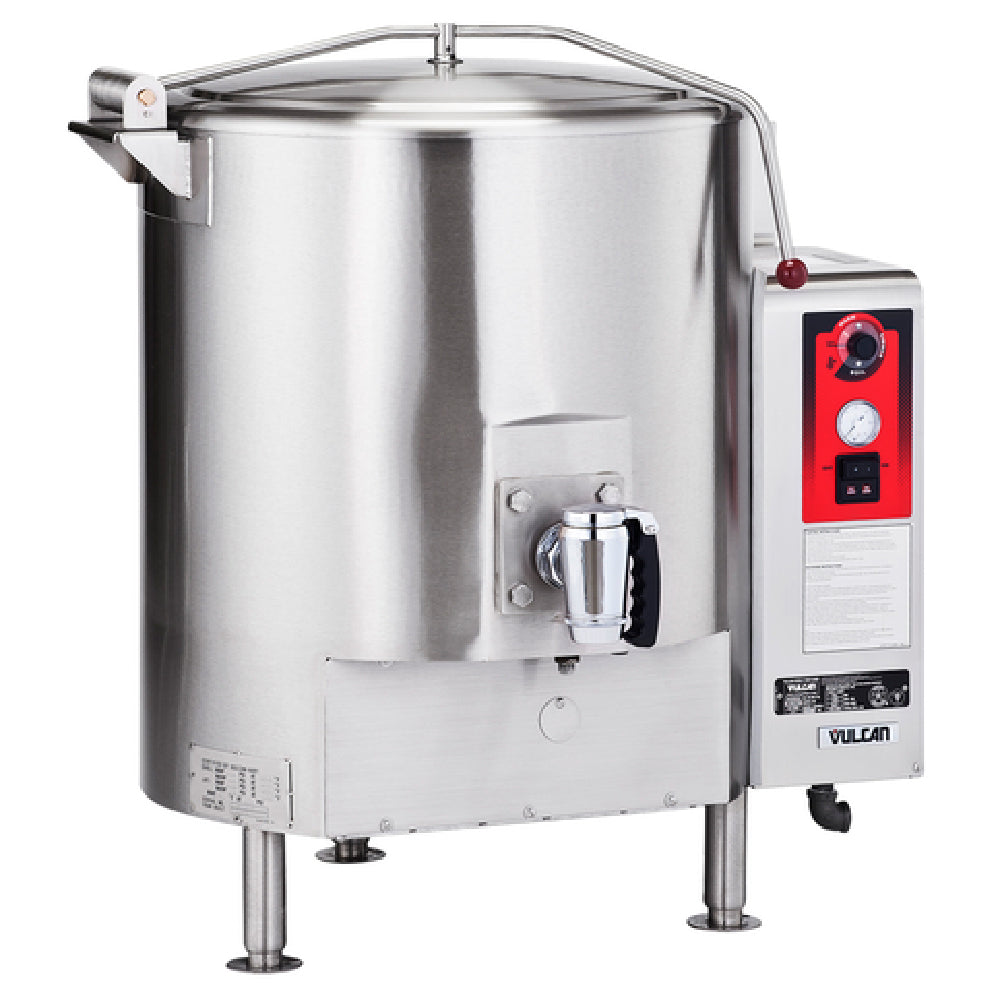

Note: Model GL40E shown for reference
Specification Specifications
Ship Weight 899 LB
Manufacturer Vulcan
Model Number GS60E
Manufacturer Part # GS60E
Hazardous Materials No
Oversized Shipping No
Dimensions (HxWxD) 39" x 58-1/2" x 48"
Capacity 60 Gal.
Kettle Jacket Full
Power Liquid Propane
BTU 135,000
Relief Valve 12 PSI
Inlet Size 3/4"
Legs 2"
Tilting No
Draw Off Valve 2"
UL Listed Yes
CSA Yes
View all Specifications
Description

The GS60E is a Fully Jacketed Stationary Kettle from Vulcan that runs on Liquid Propane. This kettle is constructed of stainless steel, including a 316 series steel liner. The interior bottom is sloped to the front, allowing for smooth product flow. A draw-off valve features an opening perforated strainer. This product includes a graduated measuring rod.

The thermostat has combination gas control valve and electric ignition. The reinforced hinged cover includes a condensate ring and drop down lift handle. The kettle includes a vacuum pressure release valve. Ignition is electric. This unit runs on 135,000 BTUs. It is UL & CSA certified, meeting NSF Standard #4.

Vulcan GS60E Features

  • Stationary Kettle
  • Liquid Propane
  • Fully Jacketed
  • Material: Stainless Steel
  • Capacity: 60 Gallons
  • Graduated Measuring Rod
  • Faucet Bracket
  • Draw-Off Valve w/Opening Strainer
  • Sloped Interior Bottom
  • Combination Gas Control Valve
  • Electronic Ignition
  • Vacuum Pressure Release Valve
  • Pressure Limit Switch
  • Low Water Cut-Off Control
  • Pressure Gauge
  • Flanged Feet
  • UL Listed
  • CSA

  • Overall Dimensions:

    Height: 39"

    Width: 58 1/2"

    Depth: 48"

    View all Description
    Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
    UL Listed
    UL Listed
    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
    3/4" Gas Connection
    3/4" Gas Connection
    This unit comes with a 3/4" gas connection.
    CSA Design Cert
    CSA Design Cert
    This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
    Not For Residential Use
    Not For Residential Use
    Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
    Free Shipping
    Add this item to the cart to calculate your shipping rate
    $40,744.00
    Each
    Shipping
    Lead time varies; contact our team with your ZIP code for more info.
  • Liquid Propane
  • Fully Jacketed
  • Material: Stainless Steel
  • Graduated Measuring Rod
  • Faucet Bracket
  • Draw-Off Valve w/Opening Strainer
  • Sloped Interior Bottom
  • Combination Gas Control Valve
  • Electronic Ignition
  • Vacuum Pressure Release Valve
  • Pressure Limit Switch
  • Low Water Cut-Off Control
  • Pressure Gauge
  • Flanged Feet
  • Warranty Info
    One Year Limited Parts and Labor Warranty
