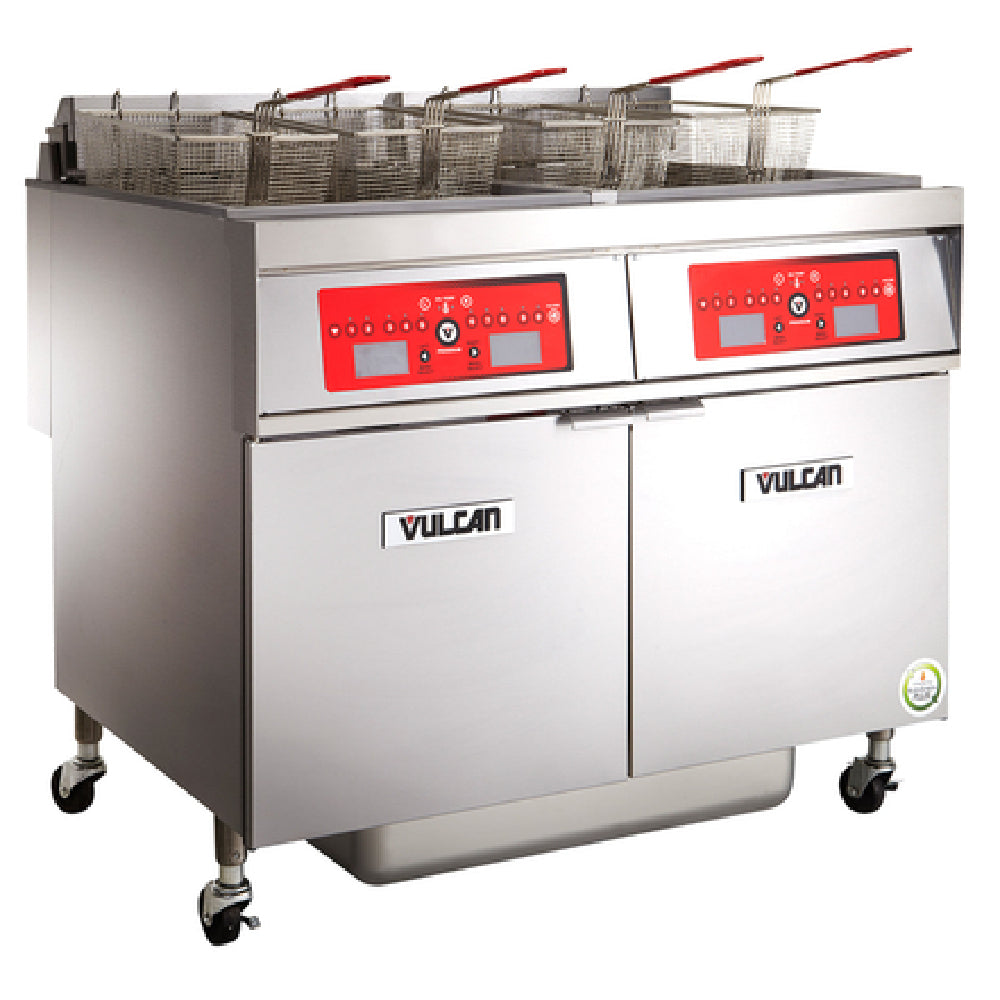

Vulcan 4ER50DF 200 lb. 4 Unit Electric Floor Fryer System with Digital Controls and KleenScreen Filtration - 208V, 3 Phase, 68 kW
|Ship Weight||927 LB|
|Manufacturer Part #||4ER50DF|
|Country of Origin||United States|
|Dimensions (HxWxD)||39-7/16" x 62" x 34-3/8"|
|Oil Capacity||200 lbs.|
|Base Material||Stainless Steel|
|Temperature||200°F to 390°F|
|Number of Tanks||4|
|Number of Fry Baskets||8|
|Spatial Orientation||Floor Model|
|Legs||4 Adjustable Legs|
This electric floor fryer comes with a filter system that accommodates a maximum of four cabinets. Drawer style filter pan assembly holds 70 lbs shortening capacity. Filter vessel constructed of drawn (seamless) 18 gauge stainless steel. The filter pan weighs only 12.2 lbs. 1⁄3 H.P. motor and pump circulates hot frying compound at the rate of 8 gallons per minute, activated by a one touch push button switch. System provided standard with stainless steel mesh filter screen. Optional KleenScreen PLUS® envelopes filter out particulate down to .5 microns. Standard equipment comes on legs, has a tank brush and cleanout rod. Hands free oil return line connection. Drain valve interlock switch turns fryer's heating elements off when drain valve is opened. Power supply is 208 volt, 60 Hz, 3 phase.
Vulcan 4ER50DF Features
Vulcan 4ER50DF Benefits
Depth: 34 3/8"
Height: 39 7/16"
Oil Capacity: 200 lbs.
