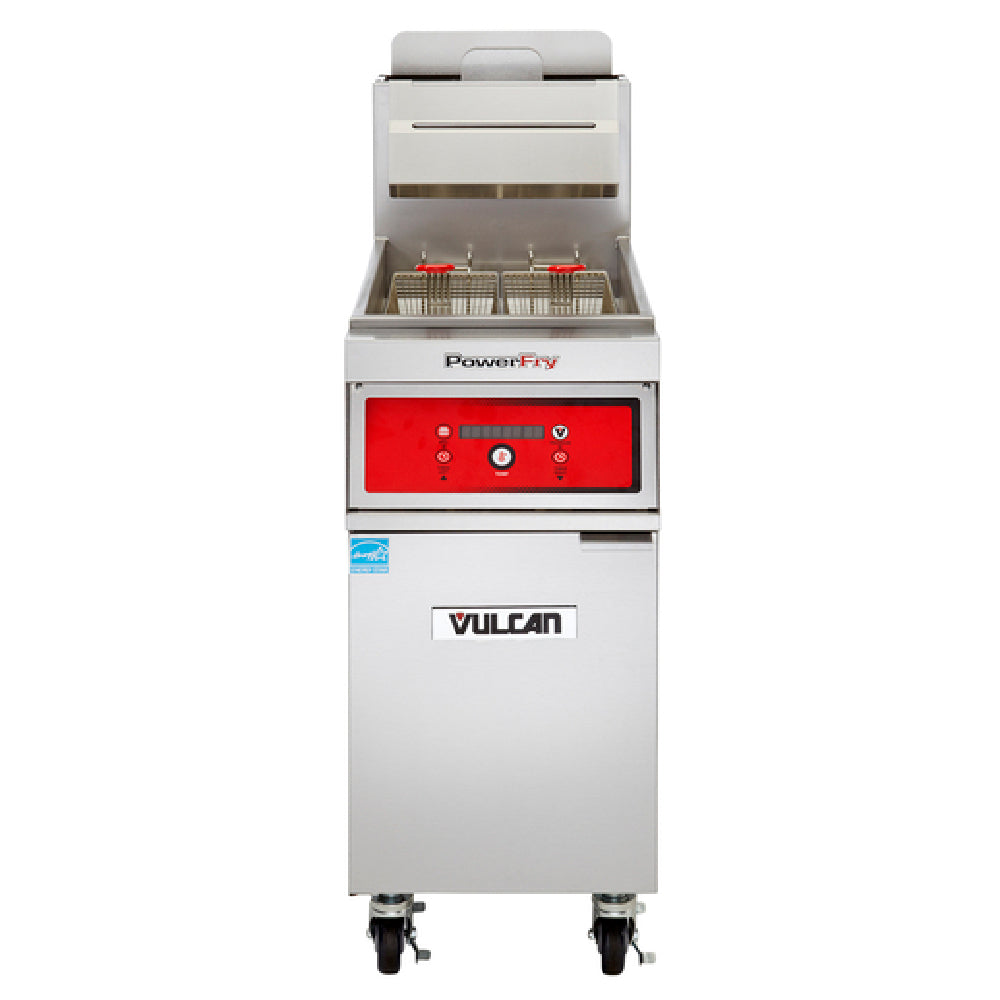

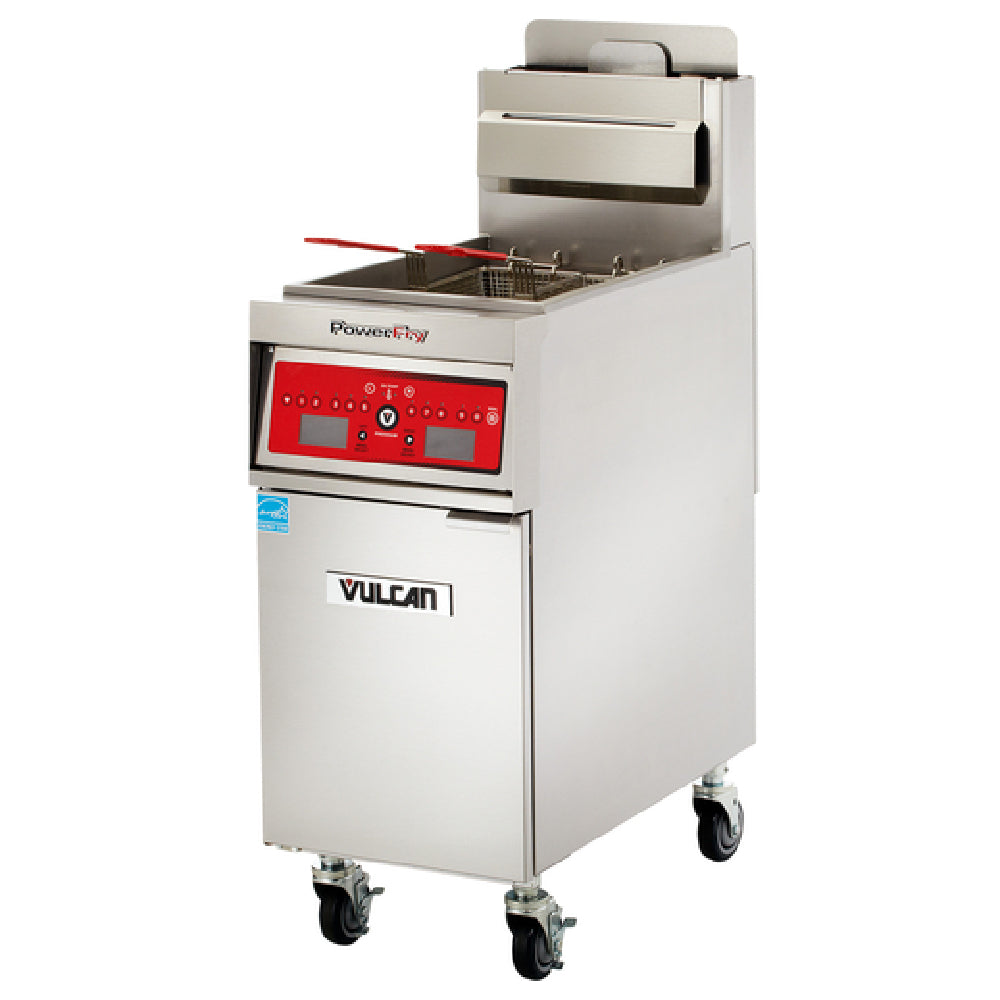

Vulcan 1TR85DF PowerFry3 Liquid Propane 85-90 lb. Floor Fryer with Solid State Digital Controls and KleenScreen Filtration System - 90,000 BTU
| Ship Weight | 420 LB |
| Manufacturer | Vulcan |
| Model Number | 1TR85DF |
| Manufacturer Part # | 1TR85DF |
| Country of Origin | United States |
| Oversized Shipping | No |
| Hazardous Material | No |
| Dimensions (HxWxD) | 47-1/8" x 21" x 34-3/8" |
| Amps | 6 Amps |
| Hertz | 60 Hertz |
| Phase | 1 |
| Voltage | 120 Volts |
| Oil Capacity | 85 - 90 lbs. |
| Base Material | Stainless Steel |
| Fuel Type | Liquid Propane |
| ENERGY STAR | Yes |
| Control Type | Digital |
| Programmable | No |
| Built-In Filtration | Yes |
| Basket Lifts | No |
| Temperature | 200°F to 390°F |
| Number of Tanks | 1 |
| Number of Fry Baskets | 2 |
| Split Pot | No |
| Spatial Orientation | Floor Model |
| Total BTU | 90,000 |
| Gas Inlet Size | 3/4" |
| NSF Listed | Yes |
The 1TR85DF is a 21" wide Energy Star certified PowerFry3 series gas floor fryer from Vulcan with a solid state digital control system. This fryer is constructed of stainless steel, and features a set of four 6" adjustable casters (2 locking), and features a fry tank with the ThreePass™ heat transfer system. This heat transfer system yields 60.0% cooking and 72% thermal efficiency, helping this gas floor fryer reach Energy Star certification.
The 1TR85DF has an idle rate of 5,575 BTU/hr to maintain cooking temperature. This gas floor fryer comes with twin fry baskets with plastic coated handles, and includes a tank brush and clean-out rod.
This gas floor fryer from Vulcan includes a power cord with a NEMA 5-15 plug, and requires a 3/4" liquid propane hookup for operation.
Vulcan 1TR85DF Features
- Floor Fryer
- Material: Stainless Steel
- Fuel type: liquid propane
- Color: Silver
- NSF Listed
- CSA Certified
- Energy Star Rated
- Oil Capacity: 85-90 Pounds
- Number of Baskets: 2
- Number of Fry Pots: 1
- 90,000 BTU
- Volts: 120
- Fry Pot Width: 19-1/2"
- Fry Pot Depth: 18-1/4"
Vulcan 1TR85DF Benefits
- Hi-limit shut-off
- Tank brush and clean-out rod
- KleenScreen filtration system
- Stainless steel cabinet
- Electronic matchless ignition
Overall Dimensions:
Width: 21"
Depth: 34-3/8"
Height: 47-1/8"
Oil Capacity: 85 - 90 lbs.
- Liquid Propane
- Natural Gas
