Vollrath 3646781 Drop-In 1-Well Manifold With Autofill 1000W Thermostatic Control Hot Food Well, 208-240V
| Ship Weight | 33.15 lb |
| Manufacturer | Vollrath |
| Model Number | 3646781 |
| Manufacturer Part # | 3646781 |
| Type | Hot Food Wells |
| Oversized Shipping | No |
| Hazardous Material | No |
| Height | 21 1/2 Inches |
| Width | 15 Inches |
| Depth | 26 Inches |
| Material | Stainless Steel |
| Installation Type | Top-Mount Drop-In |
| Cutout Width | 14 1/4 Inches |
| Cutout Depth | 25 1/4 Inches |
| Number Of Wells | 1 |
| Control Type | Thermostatic |
| Drain Type | Manifold 1" Drain |
| Auto-Fill | Yes |
| Max Pan Depth | 6 Inches |
| Operation Type | Wet Only |
| Insulated | Yes |
| UL Listed | Yes |
| NSF Listed | Yes |
| Made In USA | Yes |
| Power | Electric |
| Voltage | 208-240 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 3.6-4.2 |
| Watts | 1000 |
| Power Cord Length | 6 ft |
| Plug | NEMA 6-15P |

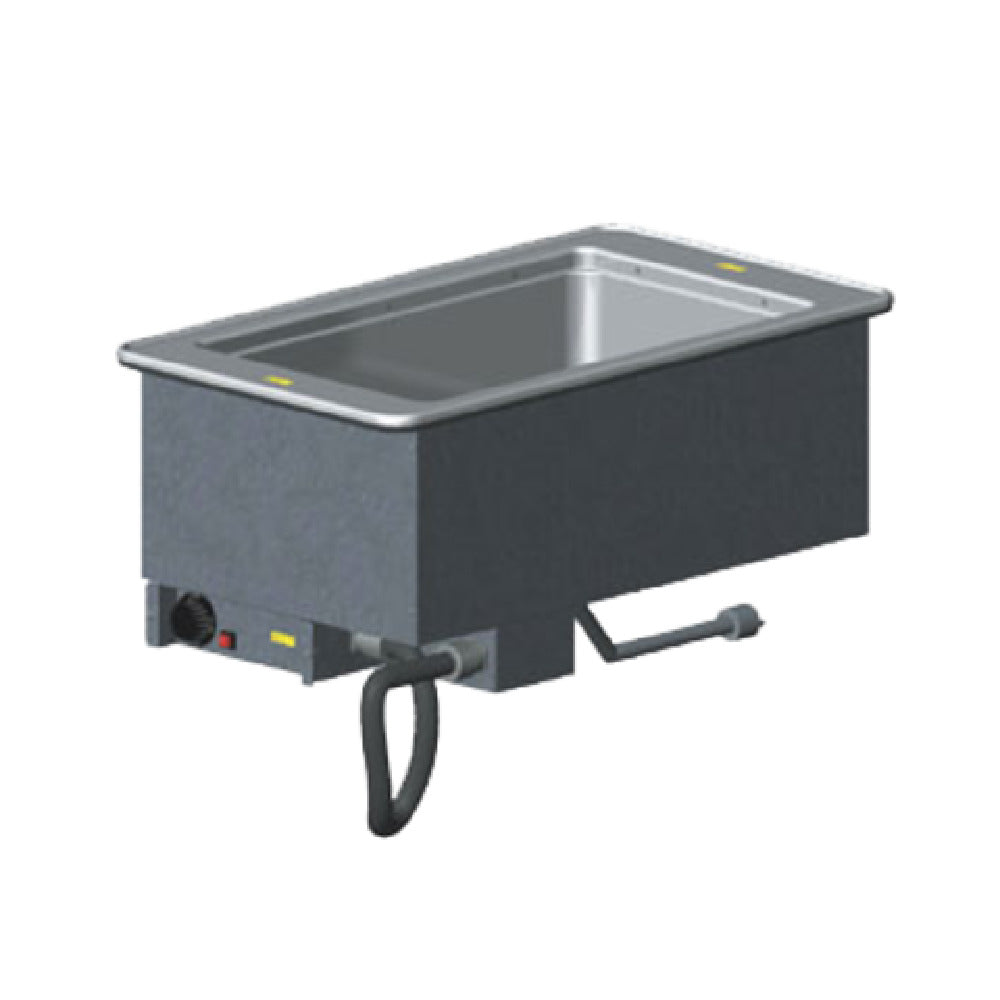

The 3646781 is the modular drop-in top-mounted hot food well with 1 full-size 12" x 20" stainless steel well that is fully insulated and designed for wet operation only. There is a 1" manifold drain on this unit with copper tubing and a master manifold shut off.
This hot food well unit features thermostatic controls mounted in a stainless steel remote control panel with a power indicator light.
This hot food well is an electric unit that runs at 208-240 Volts, 60 Hertz, 1-phase, and 3.6-4.2 Amps for 1000 Watts and it comes with a 6 ft power cord and a NEMA 6-15P plug.
This hot food well is proudly made in the USA and it is UL listed in Canada and the United States, and NSF listed for safety.
The deep stainless steel well accommodates full-size and fractional pans up to 6" deep.
Standard mounting clips are provided with this drop-in top-mounted hot food well for easy installation on counters up to 3" thick.
Vollrath 3646781 Features
- Modular full-size hot food well unit
- Auto-fill feature
- Installation Type: Top-Mount Drop-In
- Control Type: Thermostatic
- Drain Type: Manifold 1" drain
- Number of Full Size (12" x 20") Wells: 1
- Operation Type: Wet Only
- Fully insulated
- Drip-free flange
- Material: Stainless Steel
- Standard mounting clips are provided for counters up to 3" thick
- Max Pan Depth: 6" deep
- Electrical specifications: 208-240 Volts, 60 Hertz, 1-phase, and 3.6-4.2 Amps for 1000 Watts, NEMA 6-15P plug
- 6 ft power cord
- Made in the USA
- UL listed in Canada and the United States
- NSF listed
Vollrath 3646781 Benefits
- Durable stainless steel construction
- Fully insulated liner helps maintain hot temperatures
Overall Dimensions:
Height: 21 1/2"
Width: 15"
Depth: 26"
Cutout Dimensions:
Width: 14 1/4"
Depth: 25 1/4"
