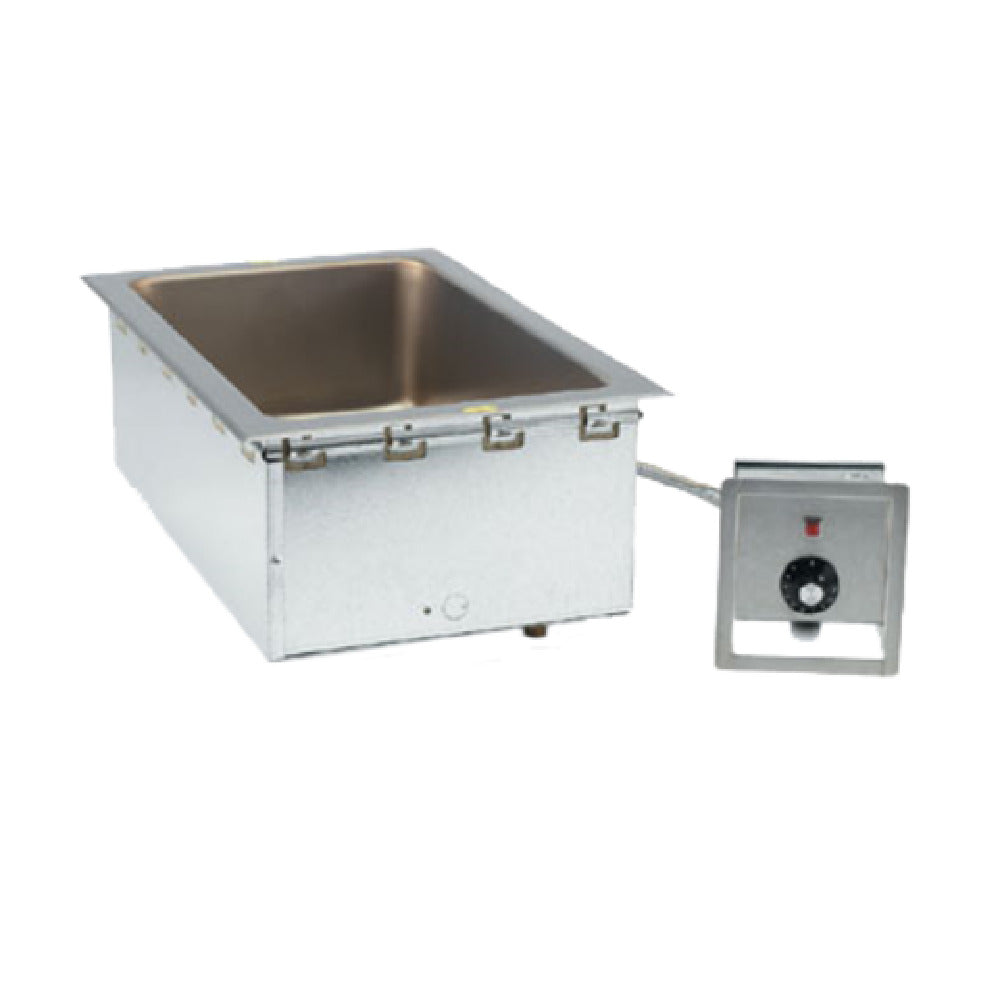

Vollrath 36368 Modular Drop-In Top-Mounted Fabricator Well, 120V
| Ship Weight | 25.72 lb |
| Manufacturer | Vollrath |
| Model Number | 36368 |
| Manufacturer Part # | 36368 |
| Type | Hot Food Wells |
| Height | 9 3/8 Inches |
| Width | 15 Inches |
| Depth | 23 Inches |
| Well Material | Stainless Steel |
| Exterior Housing Material | Galvanized Steel |
| Installation Type | Top-Mount Drop-In |
| Number Of Wells | 1 |
| Well Type | Sealed |
| Control Type | Thermostatic |
| Edge Type | Beveled |
| Max Pan Depth | 6 Inches |
| Operation Type | Wet Or Dry |
| Insulation Type | High-Density Glass Fiber |
| UL Listed | Yes |
| NSF Listed | Yes |
| Made In USA | Yes |
| Power | Electric |
| Voltage | 120 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 8.3 |
| Watts | 1000 |
| Hardwired | Yes |
| Drain Size | 1/2 Inches |
The 36368 is the modular drop-in top-mounted fabricator well with 1 sealed hot food well (15" wide x 23" deep overall) that is fully insulated with high-density glass fiber and it can be used for wet or dry operation. The hot food well has a wired remote thermostatic control.
The deep drawn well is constructed in 20-gauge 18-8 stainless steel and the exterior housing is 20-gauge galvanized steel.
Standard mounting tabs are provided with this drop-in top-mounted fabricator well for sheet metal counters.
This hot food well is proudly made in the USA and it is UL listed in Canada and the United States, and NSF listed for safety.
The deep stainless steel well accommodates full-size and fractional pans up to 6" deep and the beveled edge design makes it easy to clean.
The drain is 1/2" stainless steel fitting welded to the pan with a brass nipple extending below the exterior housing and a drain screen comes included.
This hot food well is an electric unit that runs at 120 Volts, 60 Hertz, 1-phase, and 8.3 Amps for the 1000 Watt heating element and it requires hardwiring.
Vollrath 36368 Features
- Modular hot food well
- Installation Type: Top-Mount Drop-In
- Number of Wells: 1
- Operation Type: Wet or Dry
- Insulation: High-density glass fiber
- Well Material: Stainless Steel (20 Gauge 18-8)
- Exterior Housing Material: Galvanized Steel (20 Gauge)
- Control Type: Thermostatic
- Standard mounting tabs are provided for sheet metal counters
- Beveled edge
- Max Pan Depth: 6" deep
- Standard 1/2" drain and drain screen included
- Electrical specifications: 120 Volts, 60 Hertz, 1-phase, and 8.3 Amps for 1000 Watt heating element, hardwiring required
- Made in the USA
- UL listed in Canada and the United States
- NSF listed
Vollrath 36368 Benefits
- Durable stainless steel construction
- Accommodates full-size and fractional pans up to 6" deep
- Beveled edge design makes it easy to clean
- Fully insulated liner helps maintain hot temperatures
Overall Dimensions:
Height: 9 3/8"
Width: 15"
Depth: 23"
