T&S Brass B-2250-B Overhead Spring Baseless Pre-Rinse Assembly With 44 Inch Hose And B-0107 1.15 GPM Low Flow Spray Valve With B-0109-01 6 Inch Wall Bracket
|Ship Weight||12 lb|
|Manufacturer Part #||B-2250-B|
|Overall Height||38 11/16 Inches|
|Hose Length||44 Inches|
|Base Material||Stainless Steel/Chrome Plated Brass|
|Pre Rinse Unit Type||Overhead Spring|
|Spray Valve Model||T&S Brass B-0107|
|Spray Valve Flow Rate||1.15 GPM|
|Handle Type||Heat Resistant Gray Handle|
|Installation Features||6 Inch Wall Bracket Included|
|Wall Bracket Model||T&S Brass B-0109-01|
|Temperature Range||40 - 140 Degrees F|
|Pressure Range||20 - 125 psi|
The B-0109-01 6" wall bracket is included with this pre-rinse assembly. The pre-rinse assembly has a 38 11/16" overall height.

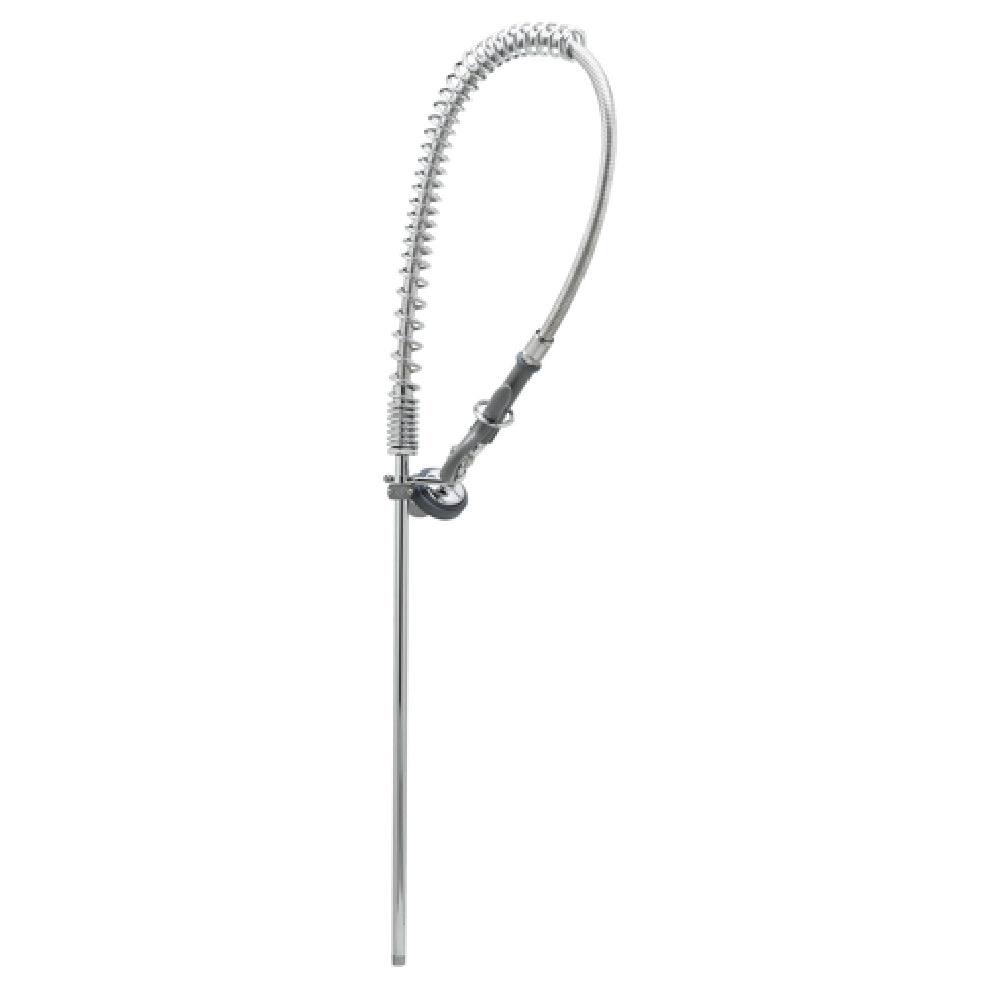

The B-2250-B is the wall-mount overhead spring style baseless pre-rinse assembly from T&S Brass with a 44" flexible stainless steel hose with a heat resistant gray handle and the B-0107 model 1.15 GPM spray valve and spray valve holder.
This pre-rinse assembly is low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
There is a 3/8" NPT male inlet on this pre-rinse assembly and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.
T&S Brass B-2250-B Features
- Overhead spring style baseless pre-rinse assembly
- 44" flexible stainless steel hose with heat resistant gray handle
- 1.15 GPM spray valve (T&S Brass B-0107)
- Spray valve holder included
- 6" wall bracket included (T&S Brass B-0109-01)
- Inlets: 3/8" NPT male
- Temperature range: 40 - 140 degrees F
- Pressure: 20 - 125 psi
- Made in USA
- Certified to ASME A112.18.1/CSA B125.1
- Low-lead compliant
- NSF/ANSI 61 compliant
T&S Brass B-2250-B Benefits
- Durable stainless steel and brass construction
Overall Height: 38 11/16"
Hose Length: 44"
