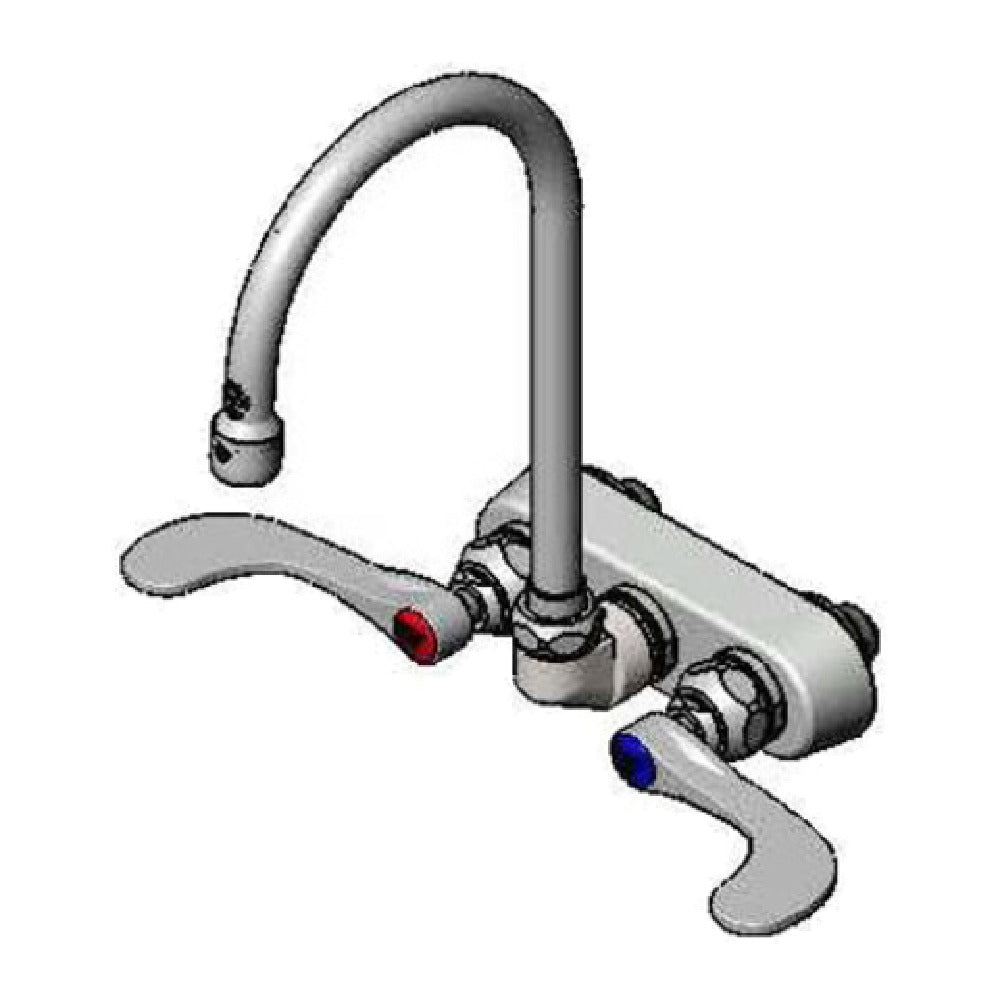

T&S Brass B-1146-04 Wall-Mount 4 Inch Center ADA Compliant Chrome Plated Brass Workboard Faucet With 5 3/4 Inch Swivel Gooseneck Nozzle And Color-Coded 4 Inch Wrist Action Handles
The B-1146-04 is the ADA compliant wall-mount workboard faucet from T&S Brass on 4" centers with a 5 3/4" swivel gooseneck nozzle (10 11/16" high) and color-coded 4" wrist action handles.
The workboard faucet body, escutcheon, metal handles, and spout are all chrome plated.
This workboard faucet is ADA compliant, low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
There is a 2.2 GPM aerator and 1/4-turn Eterna compression cartridges on this faucet with spring checks that prevent the cross-flow of water.
The faucet has 1/2" NPT male inlets and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.
T&S Brass B-1146-04 Features
- Wall-mount workboard faucet
- 4" centers
- Color-coded 4" wrist action handles
- 5 3/4" swivel gooseneck nozzle (10 11/16" high)
- 2.2 GPM aerator
- 1/4-turn Eterna compression cartridges
- Chrome plated body, escutcheon, metal handles, and spout
- Inlets: 1/2" NPT male
- Temperature range: 40 - 140 degrees F
- Pressure: 20 - 125 psi
T&S Brass B-1146-04 Benefits
- ADA compliant
- Spring checks on Eterna compression cartridges prevent the cross flow of water
- Certified to ASME A112.18.1/CSA B125.1
- Low-lead compliant
- NSF/ANSI 61 compliant
|Ship Weight||5 lb|
|Manufacturer Part #||B-1146-04|
|Nozzle Height||10 11/16 Inches|
|Nozzle Spread||5 3/4 Inches|
|Faucet Centers||4 Inches|
|Base Material||Chrome Plated Brass|
|Nozzle Type||Swivel Gooseneck|
|Aerator GPM||2.2 GPM|
|Handles||4 Inch Wrist Action Handles|
|Cartridges||1/4-Turn Eterna Compression Cartridges|
|Inlet||1/2" NPT Male|
|Temperature Range||40 - 140 Degrees F|
|Pressure Range||20 - 125 psi|
- Specification Sheet:
A PDF viewer is required to view this product's information.Download Spec Sheet
