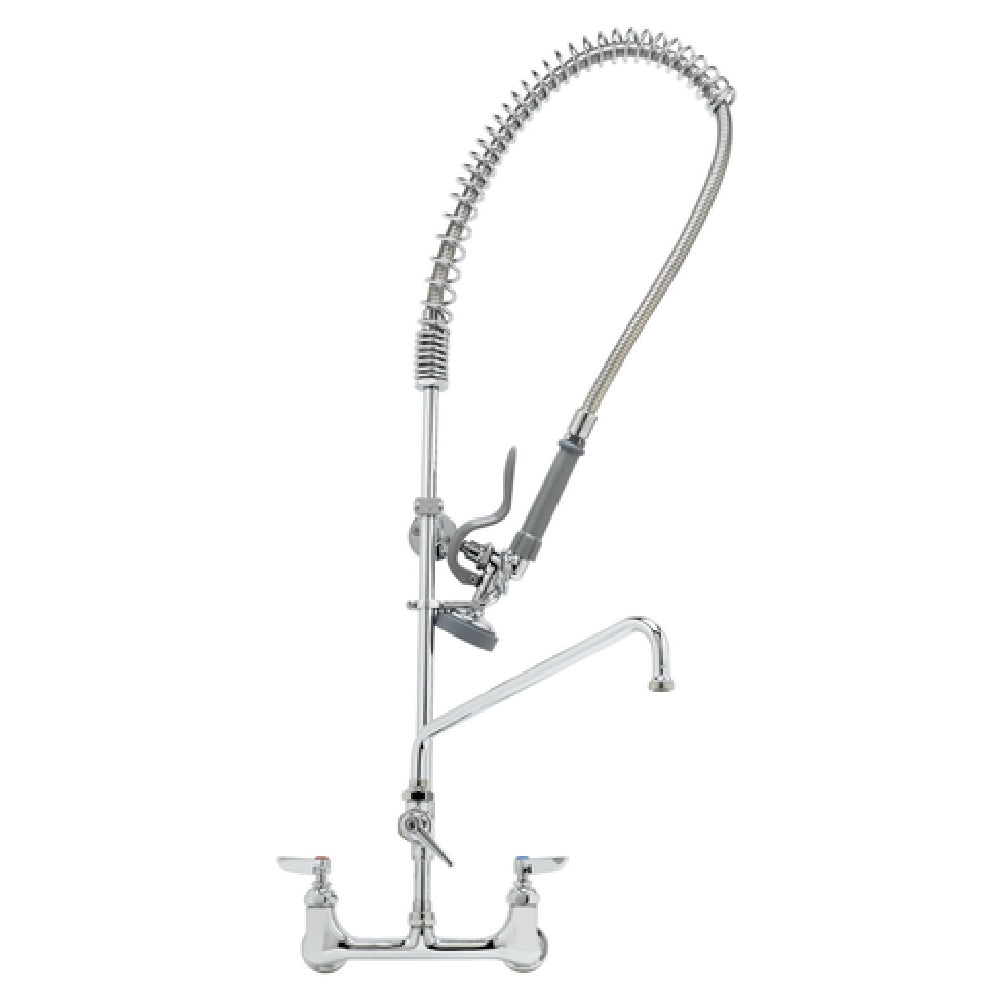

T&S Brass B-0133-ADF10-B Wall-Mount 8 Inch Centers EasyInstall Overhead Spring Pre-Rinse Unit With 44 Inch Hose And B-0107 1.15 GPM Spray Valve And 061X 10 Inch Swivel Nozzle

Item
#13811
MFG
#B-0133-ADF10-B
GTIN
#00671262593625
Specification Specifications
Ship Weight 13.85 lb
Manufacturer T&S Brass
Model Number B-0133-ADF10-B
Manufacturer Part # B-0133-ADF10-B
Type Pre-Rinse Units
Overall Height 37 9/16 Inches
Hose Length 44 Inches
Add-On Faucet Length 10 Inches
Faucet Centers 8 Inches
Base Material Stainless Steel/Chrome Plated Brass
Color Silver
Mounting Style Wall-Mount
Pre Rinse Unit Type Overhead Spring
Low-Lead Compliant Yes
Spray Valve Model T&S Brass B-0107
Spray Valve Flow Rate 1.15 GPM
Handle Type Heat Resistant Gray Handle
Nozzle Model T&S Brass 061X
Cartridges 1/4-Turn Eterna Compression Cartridges
NSF Certified Yes
ASME Certified Yes
Oversized Shipping No
Hazardous Material No
Temperature Range 40 - 140 Degrees F
Pressure Range 20 - 125 psi
View all Specifications
Description

There are 1/4-turn Eterna compression cartridges on this pre-rinse unit with spring checks that prevent the cross-flow of water.

The B-0133-ADF10-B is the EasyInstall wall-mount overhead spring style pre-rinse unit from T&S Brass on 8" centers with a 44" flexible stainless steel hose with a heat resistant gray handle and hold down ring and the B-0107 model 1.15 GPM spray valve and a 061X model 10" swivel nozzle.

This pre-rinse unit is low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.

There are 1/2" NPT female eccentric inlets with 2" flanges on this pre-rinse unit and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.

The pre-rinse unit has a 37 9/16" overall height.

T&S Brass B-0133-ADF10-B Features

  • Wall-mount EasyInstall overhead spring style pre-rinse unit
  • 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
  • 1.15 GPM spray valve (T&S Brass B-0107)
  • 10" swivel nozzle (T&S Brass 061X)
  • 8" centers
  • 1/4-turn Eterna compression cartridges
  • Inlets: 1/2" NPT female eccentric with 2" flanges
  • Temperature range: 40 - 140 degrees F
  • Pressure: 20 - 125 psi

T&S Brass B-0133-ADF10-B Benefits

  • Low-lead compliant
  • NSF/ANSI 61 compliant
  • Spring checks on Eterna compression cartridges prevent the cross flow of water
  • Certified to ASME A112.18.1/CSA B125.1

Overall Dimensions:
Overall Height: 37 9/16"
Hose Length: 44"
Add-On Faucet Length: 10"

View all Description
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Standard Shipping
Add this item to the cart to calculate your shipping rate
In stock
Shipping
Order by 1:00pm EST it Ships Today!
Shipping
Order by 1:00pm EST it Ships Today
  • 1.15 GPM spray valve (T&S Brass B-0107)
  • 10" swivel nozzle (T&S Brass 061X)
  • 8" centers
  • Low-lead compliant
  • NSF/ANSI 61 compliant
  • Wall-mount EasyInstall overhead spring style pre-rinse unit
  • 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
  • 1/4-turn Eterna compression cartridges
  • Inlets: 1/2" NPT female eccentric with 2" flanges
  • Spring checks on Eterna compression cartridges prevent the cross flow of water
  • Certified to ASME A112.18.1/CSA B125.1
  • Temperature range: 40 - 140 degrees F
  • Pressure: 20 - 125 psi
  • Warranty Info
    3 Year Limited Warranty
