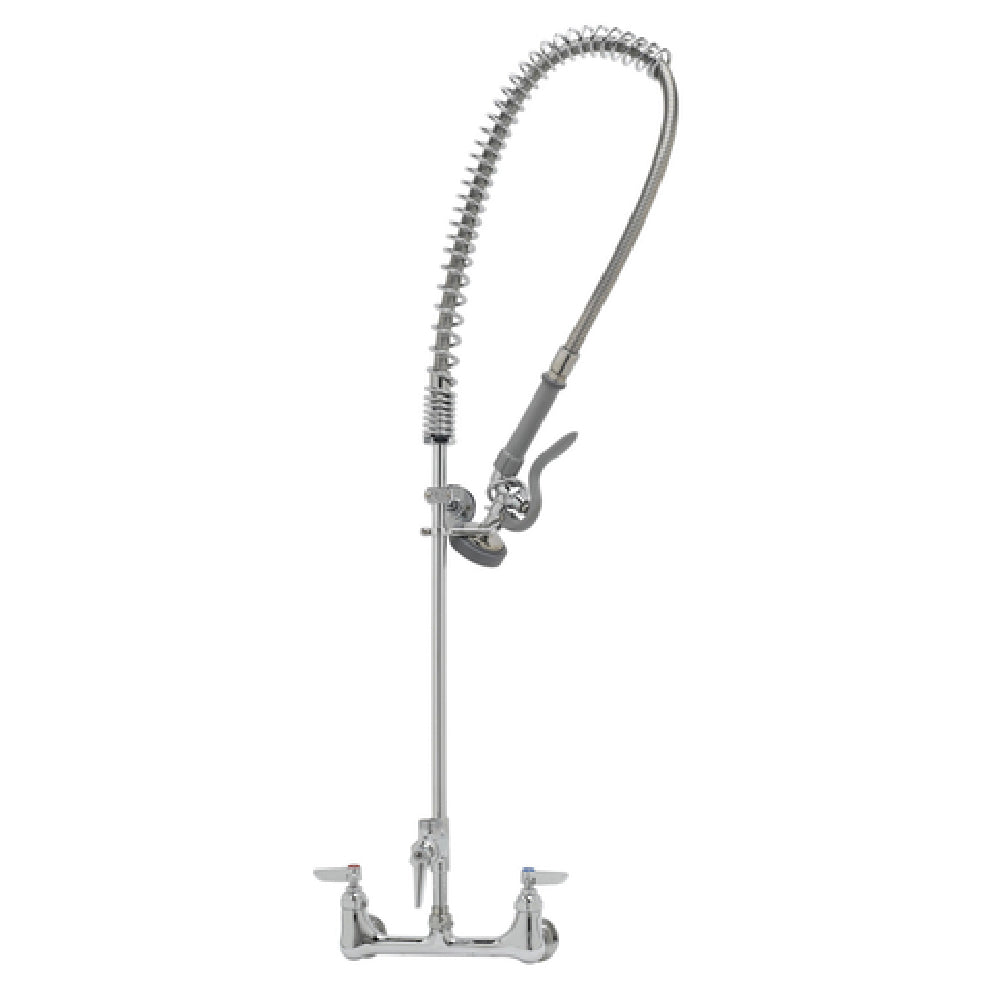

T&S Brass B-0133-ADF-LN Wall-Mount 8 Inch Centers EasyInstall Overhead Spring Pre-Rinse Unit With 44 Inch Hose And B-0107 1.15 GPM Spray Valve And Base For Add-On Nozzle
| Ship Weight | 13 lb |
| Manufacturer | T&S Brass |
| Model Number | B-0133-ADF-LN |
| Manufacturer Part # | B-0133-ADF-LN |
| Type | Pre-Rinse Units |
| Overall Height | 37 9/16 Inches |
| Hose Length | 44 Inches |
| Add-On Faucet | No |
| Faucet Centers | 8 Inches |
| Base Material | Stainless Steel/Chrome Plated Brass |
| Color | Silver |
| Mounting Style | Wall-Mount |
| Pre Rinse Unit Type | Overhead Spring |
| Low-Lead Compliant | Yes |
| Spray Valve Model | T&S Brass B-0107 |
| Spray Valve Flow Rate | 1.15 GPM |
| Handle Type | Heat Resistant Gray Handle |
| Cartridges | 1/4-Turn Eterna Compression Cartridges |
| NSF Certified | Yes |
| ASME Certified | Yes |
| Oversized Shipping | No |
| Hazardous Material | No |
| Temperature Range | 40 - 140 Degrees F |
| Pressure Range | 20 - 125 psi |
The B-0133-ADF-LN is the EasyInstall wall-mount overhead spring style pre-rinse unit from T&S Brass on 8" centers with a 44" flexible stainless steel hose with a heat resistant gray handle and hold down ring and the B-0107 model 1.15 GPM spray valve with a base for an add-on nozzle (available separately).
There are 1/4-turn Eterna compression cartridges on this pre-rinse unit with spring checks that prevent the cross-flow of water.
This pre-rinse unit is low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
The pre-rinse unit has a 37 9/16" overall height.
There are 1/2" NPT female eccentric inlets with 2" flanges on this pre-rinse unit and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.
T&S Brass B-0133-ADF-LN Features
- Wall-mount EasyInstall overhead spring style pre-rinse unit less nozzle
- 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 1.15 GPM spray valve (T&S Brass B-0107)
- Base for an add-on nozzle (available separately)
- 8" centers
- 1/4-turn Eterna compression cartridges
- Inlets: 1/2" NPT female eccentric with 2" flanges
- Temperature range: 40 - 140 degrees F
- Pressure: 20 - 125 psi
- Low-lead compliant
- NSF/ANSI 61 compliant
- Certified to ASME A112.18.1/CSA B125.1
T&S Brass B-0133-ADF-LN Benefits
- Spring checks on Eterna compression cartridges prevent the cross flow of water
Overall Dimensions:
Overall Height: 37 9/16"
Hose Length: 44"
Add-On Faucet Length: 10"
