T&S Brass B-0131-ADF12-BC Wall-Mount 8 Inch Center EasyInstall Overhead Swivel Pre-Rinse Unit With 20 Inch Hose And B-0107-C 0.65 GPM Spray Valve And 062X 12 Inch Swivel Nozzle
| Ship Weight | 5 lb |
| Manufacturer | T&S Brass |
| Model Number | B-0131-ADF12-BC |
| Manufacturer Part # | B-0131-ADF12-BC |
| Type | Pre-Rinse Units |
| Overall Height | 33 5/8 Inches |
| Hose Length | 20 Inches |
| Add-On Faucet Length | 12 Inches |
| Faucet Centers | 8 Inches |
| Base Material | Stainless Steel/Chrome Plated Brass |
| Color | Silver |
| Mounting Style | Wall-Mount |
| Nozzle Type | Swivel |
| Pre Rinse Unit Type | Overhead Swivel Arm |
| Low-Lead Compliant | Yes |
| Spray Valve Model | T&S Brass B-0107-C Low Flow |
| Spray Valve Flow Rate | 0.65 GPM |
| Handle Type | Heat Resistant Gray Handle |
| Nozzle Model | T&S Brass 062X |
| Cartridges | 1/4-Turn Eterna Compression Cartridges |
| NSF Certified | Yes |
| ASME Certified | Yes |
| Oversized Shipping | No |
| Hazardous Material | No |
| Inlet | 1/2" NPT Female Eccentric With 2 Inch Flanges |
| Temperature Range | 40 - 140 Degrees F |
| Pressure Range | 20 - 125 psi |

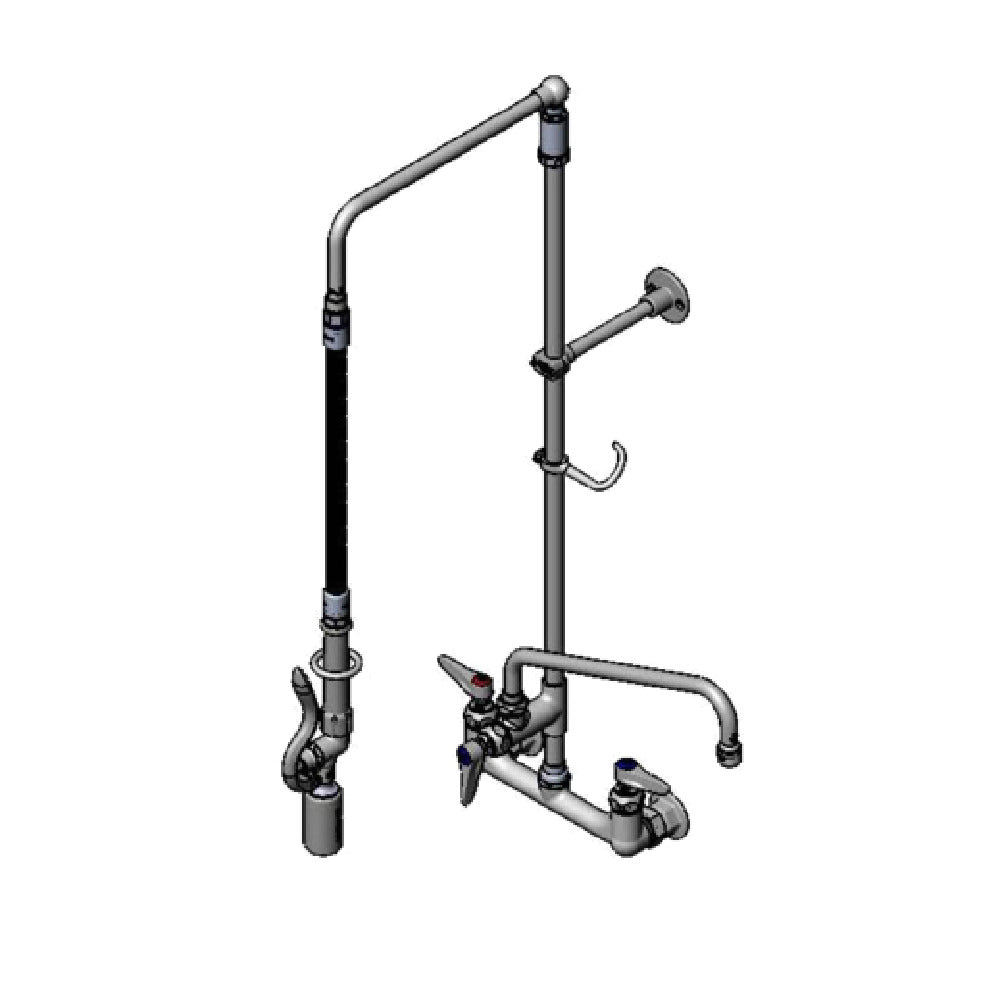

The B-0131-ADF12-BC is the EasyInstall wall-mount overhead swivel pre-rinse unit from T&S Brass on 8" adjustable centers with a 20" flexible stainless steel hose with a heat resistant gray handle and hold down ring and the B-0107-C model 0.65 GPM low flow spray valve and a 062X model 12" swivel nozzle.
The pre-rinse unit has a 33 5/8" overall height.
There are 1/2" NPT female eccentric inlets with 2" flanges on this pre-rinse unit and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.
There are 1/4-turn Eterna compression cartridges on this pre-rinse unit with spring checks that prevent the cross-flow of water.
This pre-rinse unit is low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
T&S Brass B-0131-ADF12-BC Features
- Wall-mount EasyInstall overhead swivel pre-rinse unit
- 8" adjustable centers
- 20" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 0.65 GPM low flow spray valve (T&S Brass B-0107-C)
- 12" swivel nozzle (T&S Brass 062X)
- 1/4-turn Eterna compression cartridges
- Inlets: 1/2" NPT female eccentric with 2" flanges
- Temperature range: 40 - 140 degrees F
- Pressure: 20 - 125 psi
- Certified to ASME A112.18.1/CSA B125.1
- Low-lead compliant
- NSF/ANSI 61 compliant
T&S Brass B-0131-ADF12-BC Benefits
- Spring checks on Eterna compression cartridges prevent the cross flow of water
Overall Dimensions:
Overall Height: 33 5/8"
Hose Length: 20"
Add-On Faucet Length: 12"
