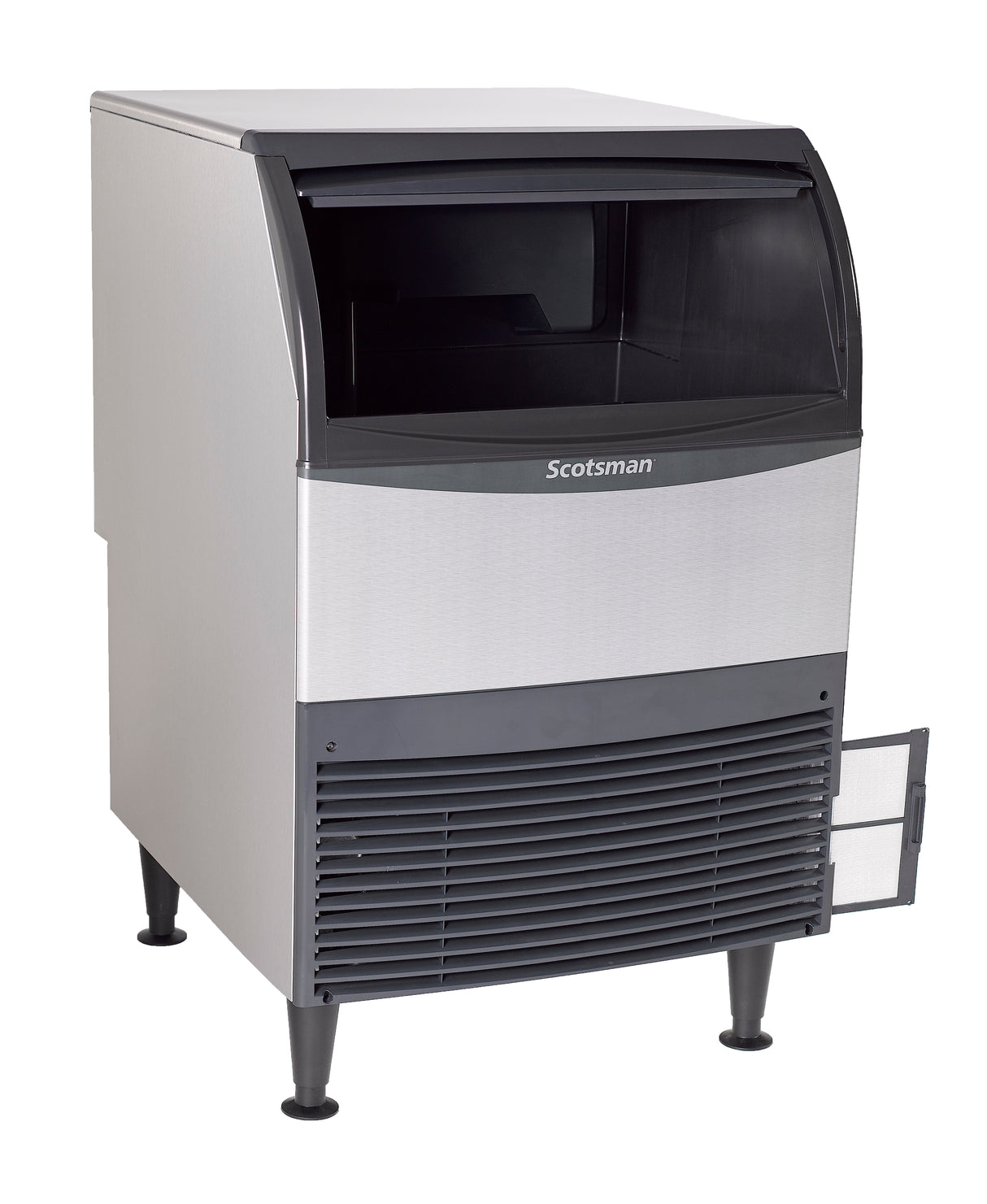

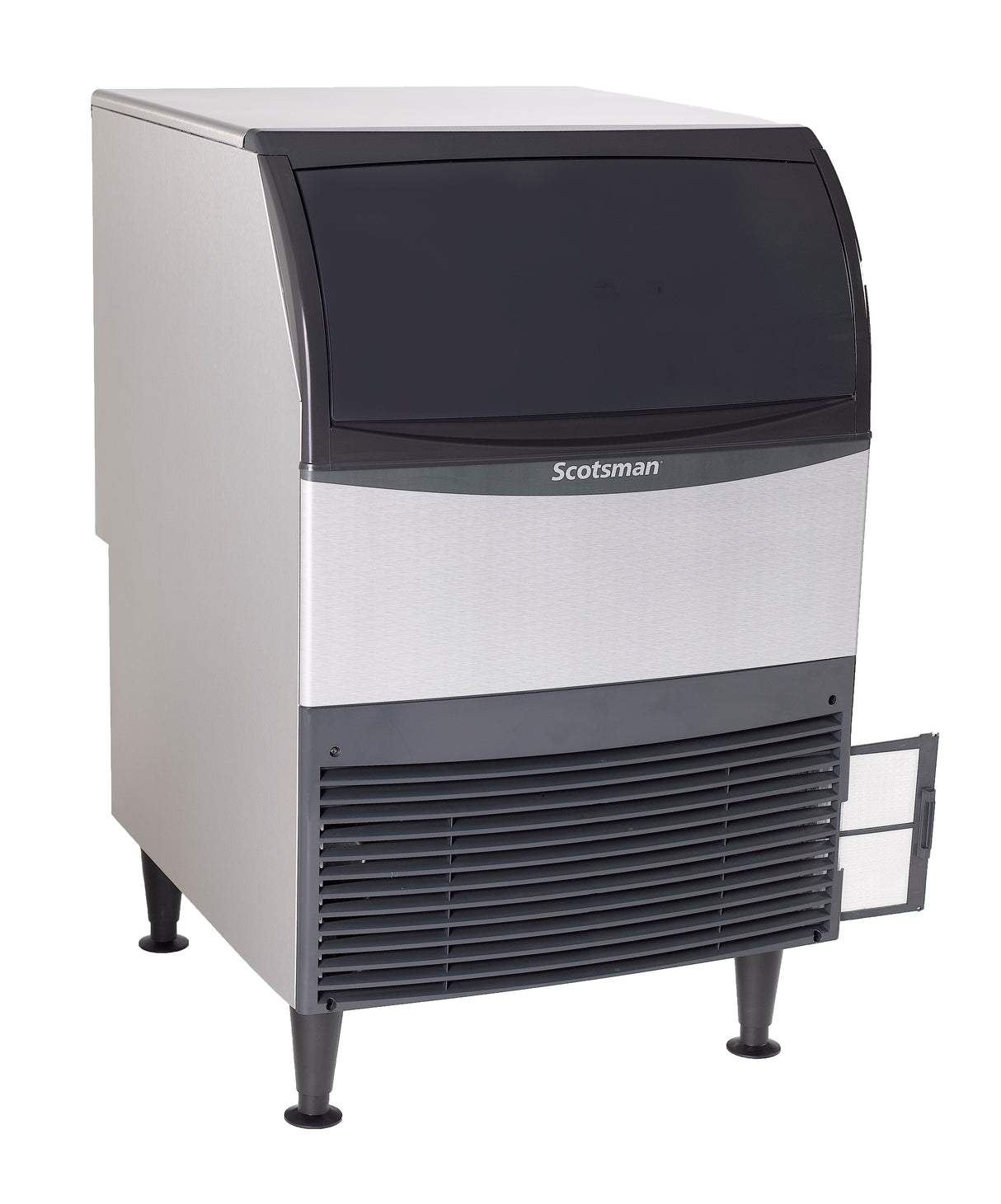

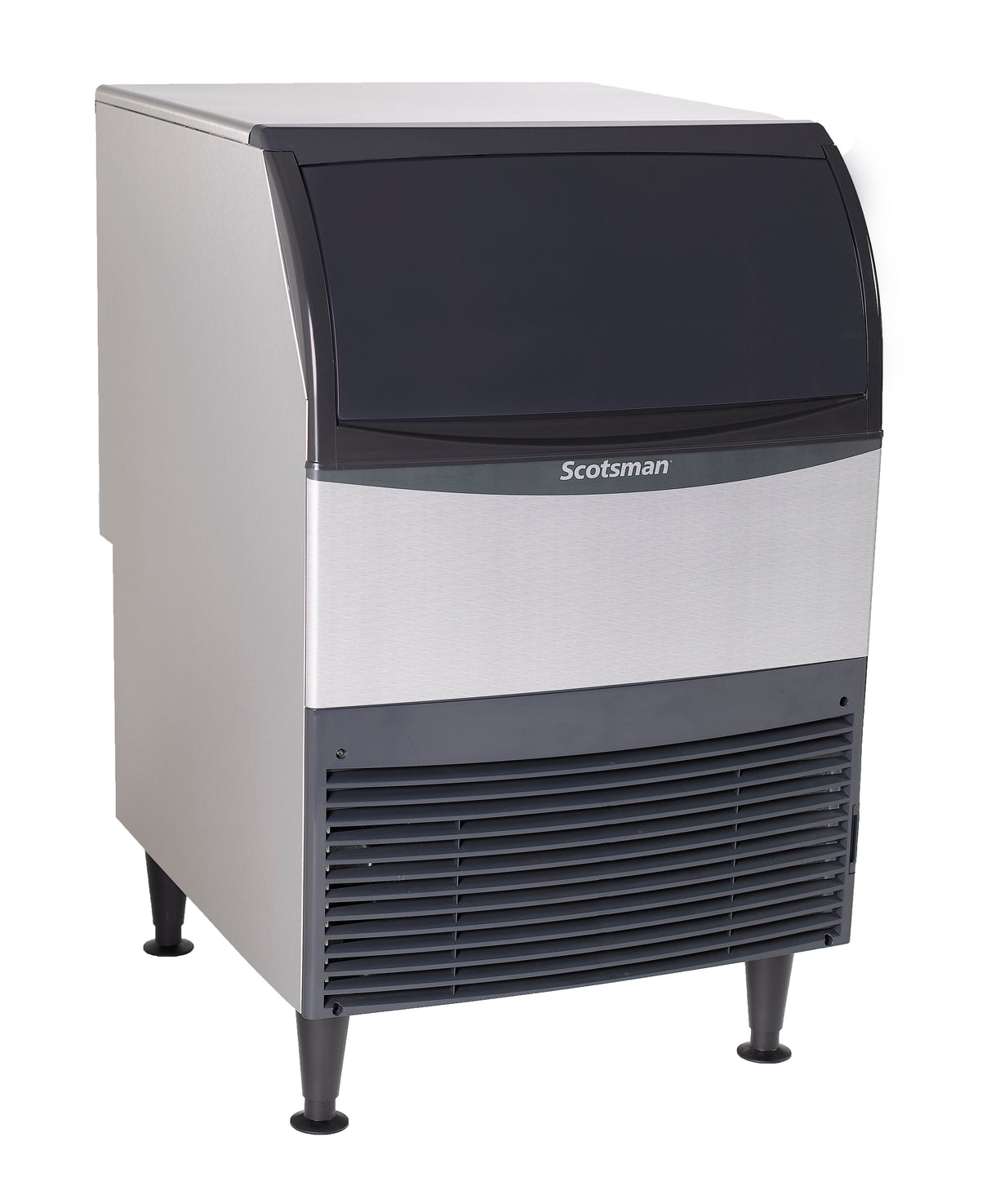

Scotsman UN324W-1 Undercounter 24" Wide Nugget Style Water-Cooled Ice Machine With Bin, 340 lb/24 hr Ice Production, 80 lb Storage, 115V

Specification Specifications
Ship Weight 210 lb
Manufacturer Scotsman
Model Number UN324W-1
Manufacturer Part # UN324W-1
Type Ice Machines
Height 39 Inches (Including 6 Inch Legs)
Width 24 Inches
Depth 28 1/2 Inches
Installation Type Undercounter
Ice Type Nugget Ice
Condenser Type Water-Cooled
Ice Storage Capacity 80 lb
Ice Production 340 lb/24 hours
Ice Scoop Included Yes
Made In USA Yes
NSF Listed Yes
UL Listed Yes
AHRI Certified Yes
Refrigerant R-134A
Power Electric
Voltage 115
Hertz 60
Phase 1
REVIT Drawings Available Yes
View all Specifications

The UN324W-1 is the undercounter ice machine from Scotsman that produces up to 340 lb per 24 hours of Nugget style ice (3/4" x 5/16" x 3/8"), a chewable, slow-melting ice. There is an ergonomic slide back door that provides easy access to ice in the bin that holds up to 80 lb of ice in storage.

This Nugget ice machine uses a self-contained, water-cooled condenser that operates with non-ozone depleting R-134A refrigerant and it features a stainless steel evaporator, external air filter, and sealed bearings. An ice scoop comes included with this undercounter Nugget ice machine and it comes with 6" adjustable legs.

The UN324W-1 undercounter Nugget ice machine is an electrical unit that runs on 115 Volts, 60 Hz, 1-phase. The unit meets US Safe Drinking Act low lead requirements and it is NSF listed, UL listed in the United States and Canada, AHRI certified, and it is made in the USA.

Scotsman UN324W-1 Features

  • Nugget style ice (3/4" x 5/16" x 3/8")
  • Self contained, water-cooled condenser
  • Sealed, maintenance-free bearings
  • Stainless steel evaporator for maximum durability
  • Produces up to 340 lb of flake ice per day
  • Stores a maximum of 80 lb of ice
  • Non-ozone depleting R-134A refrigerant
  • Ice scoop included
  • Electrical specifications: 115 Volts, 60 Hz, 1-phase

Scotsman UN324W-1 Benefits

  • Makes chewable, slow-melting Nugget ice, the Original Chewable Ice from Scotsman
  • Meets US Safe Drinking Act low lead requirements
  • NSF approved
  • UL listed
  • AHRI certified
  • Made in the USA

Overall Dimensions:
Height: 39" (including 6" legs)
Width: 24"
Depth: 28 1/2"

Ice Production: 340 lb/24 hours
Ice Storage Capacity: 80 lb

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made In America
Made In America
This item was made in the United States of America.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit comes with a NEMA 5-15P plug.
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Free Shipping
Add this item to the cart to calculate your shipping rate
Lead time varies; contact our team with your ZIP code for more info.
  • Self contained, water-cooled condenser
  • Front Air Flow
  • Sealed, maintenance-free bearings
  • Stainless steel evaporator for maximum durability
  • Produces up to 340 LB of nugget ice per day
  • Stores a maximum of 80 LB of ice
  • Slide back bin door allows easy access to ice
  • Intuitive control panel for easy operation
  • Only 24 inches wide, able to fit under 40-inch counters
  • Meets new US Federal energy efficiency requirements
  • Meets US Safe Drinking Act low lead requirements
  • Non-ozone depleting R-134A refrigerant
  • Designed, engineered and assembled in the USA
  • Ice scoop included
  • 115 Volt, 60 Hz, 1-phase
  • NSF approved, UL listed
  • AHRI Certified
  • Warranty Info
  • 3 Years Parts and Labor
  • 5 Years Compressor Warranty
