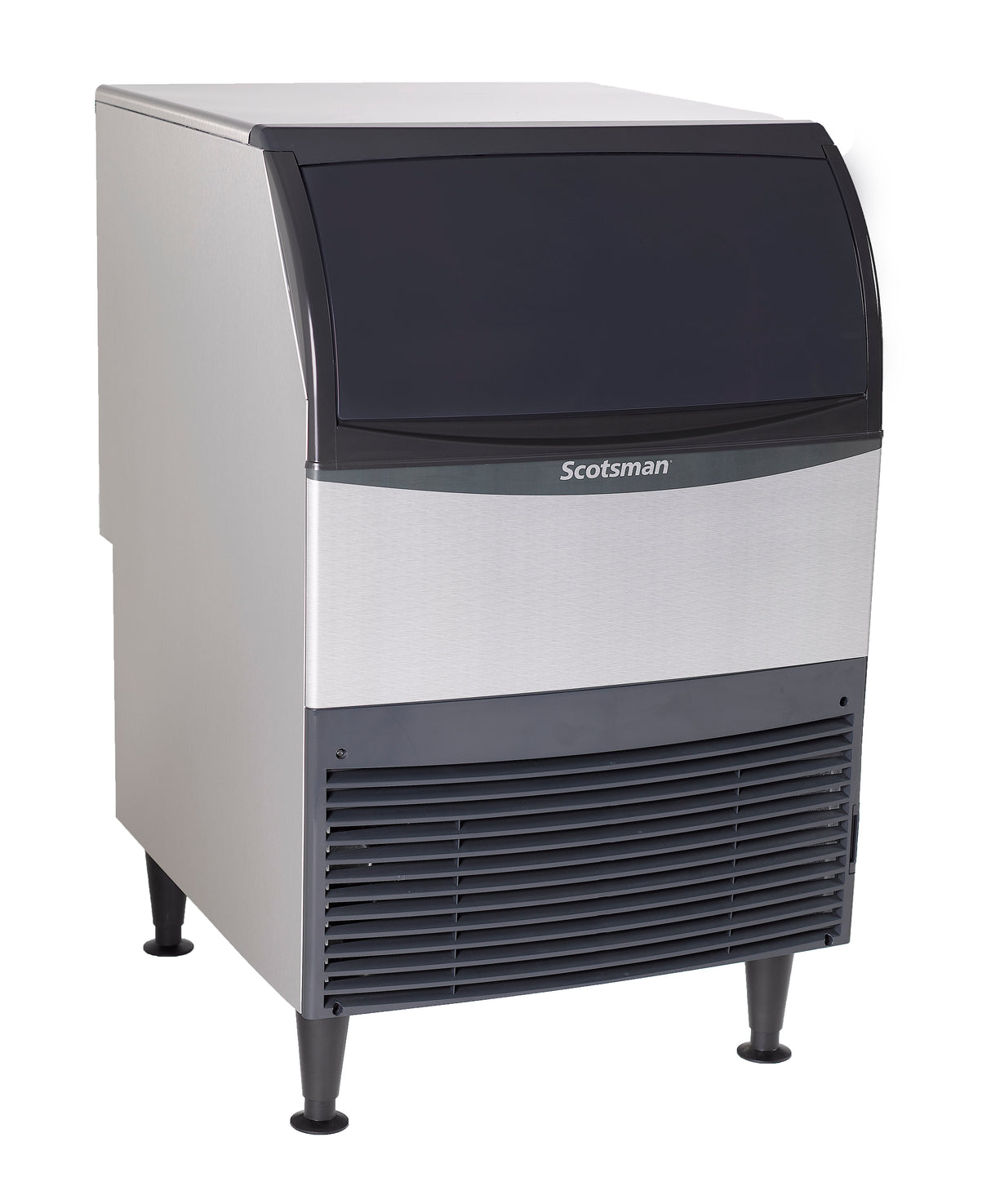

Scotsman UF424A-1 Undercounter 24" Wide Flake Style Air-Cooled Ice Machine With Bin, 440 lb/24 hr Ice Production, 80 lb Storage, 115V
Ship Weight | 210 lb |
Manufacturer | Scotsman |
Model Number | UF424A-1 |
Manufacturer Part # | UF424A-1 |
Type | Ice Machines |
Height | 39 Inches (Including 6 Inch Legs) |
Width | 24 Inches |
Depth | 28 1/2 Inches |
Installation Type | Undercounter |
Ice Type | Flake Ice |
Condenser Type | Air-Cooled |
Ice Storage Capacity | 80 lb |
Ice Production | 440 lb/24 hours |
Ice Scoop Included | Yes |
Made In USA | Yes |
NSF Listed | Yes |
UL Listed | Yes |
AHRI Certified | Yes |
Power Usage | 4.61 kWh per 100 lb |
Water Usage | 12 Gallons per 100 lb |
Refrigerant | R-134A |
Power | Electric |
Voltage | 115 |
Hertz | 60 |
Phase | 1 |
Plug | NEMA 5-15P |
REVIT Drawings Available | Yes |
The UF424A-1 is the undercounter ice machine from Scotsman that produces up to 440 lb per 24 hours of Flake style ice, perfect for produce and seafood displays or therapeutic use. There is an ergonomic slide back door that provides easy access to ice in the bin that holds up to 80 lb of ice in storage.
This flake ice machine uses a self-contained, air-cooled condenser that operates with R-134A refrigerant and it features a heavy- duty, rust-free front panel and corrosion-resistant aluminum alloy side panels.
The UF424A-1 undercounter flake ice machine is an electrical unit that runs on 115 Volts, 60 Hz, 1-phase and it comes with a power cord and NEMA 5-15P plug. The unit meets US Safe Drinking Act low lead requirements and it is NSF listed, UL listed in the United States and Canada, AHRI certified, and it is made in the USA.
Scotsman UF424A-1 Features
- Flake style ice
- Self contained, air-cooled condenser
- Sealed, maintenance-free bearings
- Stainless steel evaporator for maximum durability
- Produces up to 440 lb of flake ice per day
- Stores a maximum of 80 lb of ice
- Non-ozone depleting R-134A refrigerant
- Ice scoop included
- Electrical specifications: 115 Volts, 60 Hz, 1-phase
- Power cord with NEMA 5-15P plug included
Scotsman UF424A-1 Benefits
- Flake ice is soft and slow-melting, perfect for produce and seafood displays or therapeutic use
- Delivers steady flow of ice for faster supply recovery
- Front air flow allows for placement in tight spaces
- Meets US Safe Drinking Act low lead requirements
- NSF approved
- UL listed
- AHRI certified
- Made in the USA
Overall Dimensions:
Height: 39" (including 6" legs)
Width: 24"
Depth: 28 1/2"
Ice Production: 440 lb/24 hours
Ice Storage Capacity: 80 lb
