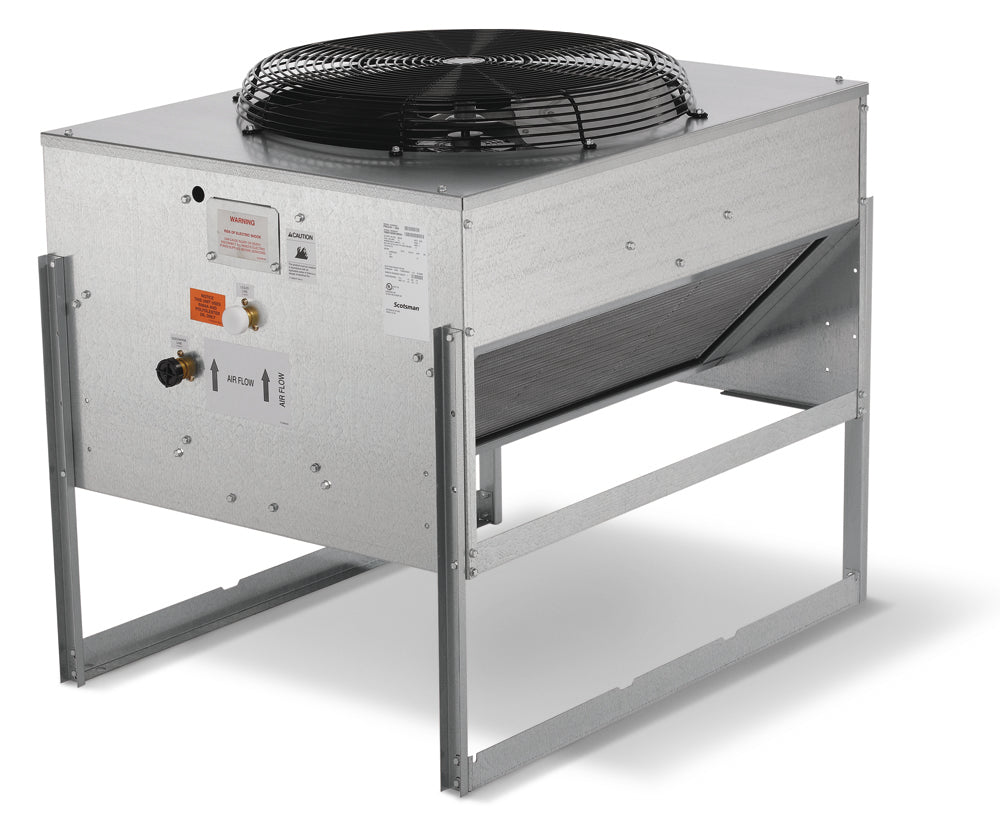

Scotsman PRC241-32 PR Series Air Cooled Remote Condensing Unit With Headmaster Valve For Prodigy Ice Machines, 208-230V
| Ship Weight | 135 lb |
| Manufacturer | Scotsman |
| Model Number | PRC241-32 |
| Manufacturer Part # | PRC241-32 |
| Type | Remote Condensers |
| Height | Adjustable 29.25 or 35.25 or 41.25 Inches With Legs |
| Width | 23.8125 Inches |
| Depth | 38.91 Inches |
| Material | Heavy-Gauge Galvanized Steel |
| Ice Machine Series | Prodigy |
| Condenser Type | Remote Air-Cooled |
| Temperature Range | -20 to 120 Degrees F |
| Usage | Scotsman C2648xR Ice Machines |
| Headmaster Valve | Yes |
| Made In USA | Yes |
| UL Listed | Yes |
| Power | Electric |
| Voltage | 208-230 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 1.9 |
This is a remote condensing unit, made especially for Scotsman ice machines. These remote condensing units feature thermally protected fan motors, PVC coated steel fan guards, direct-drive fan blades and have standard Aeroquip fittings.
The condensing unit is designed to be powered by the ice machine they are connected to and will maximize ice production by driving heat away from the ice machine. The galvanized steel finish resists corrosion and extends the life of the condensing unit. There are a variety of pre-charged, insulated, refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft, and 75 ft lines. The remote condensing unit comes with adjustable height legs (12", 18" and 24").
The PRC241-32 runs on 208-230 Volts, 60 Hz, 1-phase, 1.9 amps and can be used in an outdoor temperature range between -20 to 120 degrees F.
Scotsman PRC241-32 Features
- Remote condensing unit designed for Scotsman ice machines
- Galvanized steel finish
- Thermally protected fan motors
- PVC coated steel fan guards
- Direct drive fan blades
- Aeroquip fittings
- Operates in outdoor temperature range between -20 to 120 degrees F
- Electrical specifications: 208-230 Volts, 60 Hz, 1-phase, 1.9 amps
- Adjustable height legs (12", 18" and 24")
- For use on: Scotsman C2648xR ice machines
Scotsman PRC241-32 Benefits
- Corrosion resistant galvanized steel finish
- Quiet operation makes them ideal for dining and working environments
- Maximizes ice production by driving heat away from the ice machine
- Refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft and 75 ft lines
- ISO Certified
- UL listed
- Made in the USA
Overall Dimensions:
Height: Adjustable 29.25" or 35.25" or 41.25" With Legs
Width: 23.8125"
Depth: 38.91"
