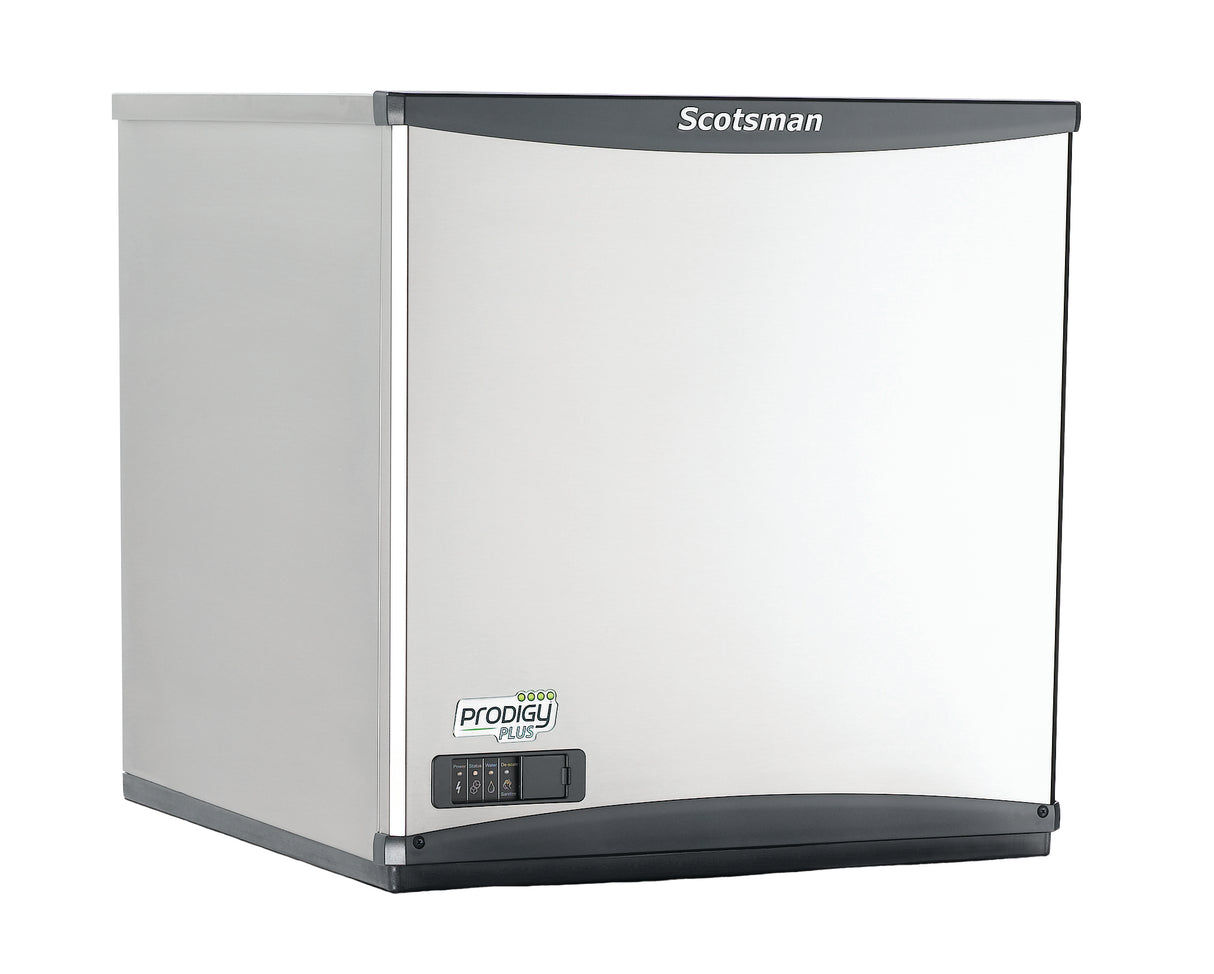

Scotsman NS0422W-1 Prodigy Plus 22" Wide Soft Original Chewable Nugget Style Water-Cooled Ice Machine, 455 lb/24 hr Ice Production, 115V 1-Phase
Ship Weight | 172 lb |
Manufacturer | Scotsman |
Model Number | NS0422W-1 |
Manufacturer Part # | NS0422W-1 |
Type | Ice Machines |
Height | 23 Inches |
Width | 22 Inches |
Depth | 24 Inches |
Ice Type | Soft Nugget Style ("The Original Chewable Ice") |
Condenser Type | Water-Cooled |
Ice Production | 455 lb/24 hours |
Ice Machine Series | Prodigy Plus |
AgIon Antimicrobial Protection | Yes |
Color/Finish | Stainless Steel Finish |
UL Listed | Yes |
NSF Approved | Yes |
AHRI Certified | Yes |
Refrigerant | R-404A |
Power Usage | 3.95 kWh per 100 lb |
Water Usage | 12.0 Gallons per 100 lb |
Installation Type | Modular |
Features | QR Code for Service / Warranty / Parts / Manual Info |
AutoAlert Indicator Lights | Yes |
Sealed Maintenance-Free Bearings | Yes |
REVIT Drawings Available | Yes |
Power | Electric |
Voltage | 115 |
Hertz | 60 |
Phase | 1 |
Amps | 12.1 |
Hardwired | Yes |
This Prodigy Plus nugget ice machine makes "The Original Chewable Ice" that Scotsman first introduced to the foodservice industry in 1981. The soft, compacted nugget ice forms made by these ice machines are approximately 7/16" x 5/16" x 3/8", and they easy to chew, fun to crunch, and ideal for blended fruit drinks or fountain beverages.
All Prodigy Plus nugget ice machines feature advanced self-diagnostic AutoAlert LED indicator lights to indicate diagnostics and continuously show the machine's operating status. There is a front-located air filter on the ice machine that is easy to remove, rinse and reuse, and a self-aligning front panel gives easy access to key internal components.
The NS0422W-1 Prodigy Plus 22" wide nugget ice machine uses a self-contained, water-cooled condenser to produce up to 455 lb of soft Original Chewable nugget ice per day.
There is AgION Antimicrobial technology on the internal surfaces of this nugget ice machine to protect it against bacteria, mold, and mildew. The ice machine also features a durable stainless steel evaporator and auger.
The sealed bearings on the Prodigy Plus ice machine make them maintenance-free and provide long-lasting performance.
The NS0422W-1 Prodigy Plus modular cube ice machine is an electrical unit that runs on 115 Volts, 60 Hz, 1-phase, and 12.1 Amps, and hardwiring is required. The ice machine is engineered and assembled in the USA, NSF listed, and UL listed in the United States and Canada.
An industry-exclusive QR code on each nugget ice machine provides quick access to warranty history and service information, as well as giving you connections to parts lists, cleaning instructions, manuals, and more. Optional Vari-Smart ice level control and a Smart-Board module for additional diagnostic capabilities are available.
Scotsman NS0422W-1 Features
- Front-located air filter
- Refrigerant: R-404a
- Sealed bearings
- Stainless steel evaporator and auger
- Electrical specifications: 115 Volts, 60 Hz, 1-phase, and 12.1 Amps
- Prodigy Plus series, the world's only self-monitoring ice machine
- 22" wide
- Ice Type: Soft Nugget ("The Original Chewable Ice" 7/16" x 5/16" x 3/8")
- Condenser Type: Water-Cooled
- Ice Production: 455 lb of ice per day
- AutoAlert LED indicator lights
- Stainless steel finish
- Self-aligning front panel
Scotsman NS0422W-1 Benefits
- AgION Antimicrobial technology protection guards internal surfaces against bacteria, mold, and mildew
- UL listed in the United States and Canada
- NSF tested and certified
- Engineered and assembled in the USA
- Produces soft "The Original Chewable Ice" that is easy to chew, fun to crunch and ideal for blended fruit drinks or fountain beverages
- Smart-Board module available for additional diagnostic capabilities
- Industry-exclusive QR code provides quick access to warranty history, service information, parts lists, cleaning instructions, manuals, and more
- NAFEM Data Protocol compliant
- AHRI Certified
- ISO Certified
- Maintenance-free sealed bearings provide long-lasting performance
Overall Dimensions:
Height: 23"
Width: 22"
Depth: 24"
Ice Production: 455 lb/24 hours
