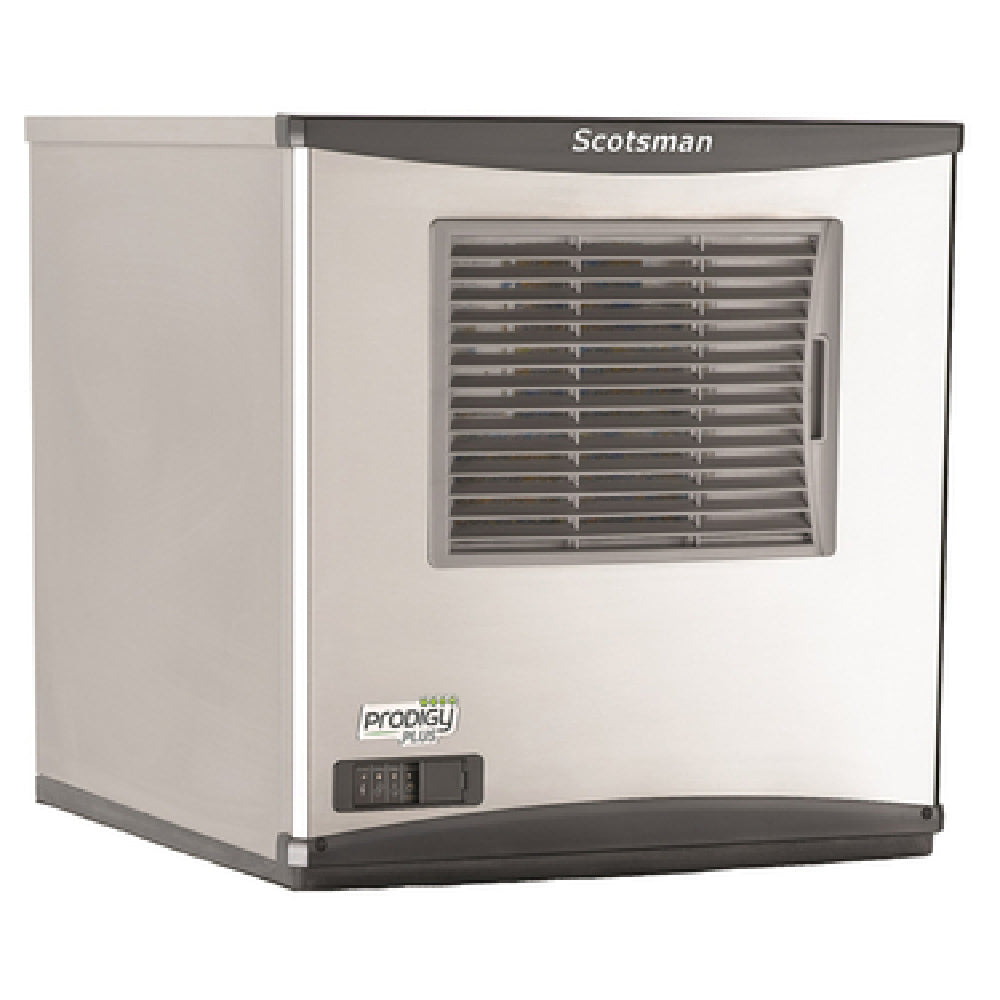

Scotsman NH0622A-1 Prodigy Plus 22" Wide Hard H2 Nugget Style Air-Cooled Ice Machine, 644 lb/24 hr Ice Production, 115V 1-Phase
| Ship Weight | 180 lb |
| Manufacturer | Scotsman |
| Model Number | NH0622A-1 |
| Manufacturer Part # | NH0622A-1 |
| Type | Ice Machines |
| Height | 23 Inches |
| Width | 22 Inches |
| Depth | 24 Inches |
| Ice Type | Hard H2 Nugget |
| Condenser Type | Air-Cooled |
| Ice Production | 644 lb/24 hours |
| Power Usage | 4.71 kWh per 100 lb |
| Water Usage | 12.0 Gallons per 100 lb |
| UL Listed | Yes |
| NSF Approved | Yes |
| AHRI Certified | Yes |
| Refrigerant | R-404A |
| Ice Machine Series | Prodigy Plus |
| AgIon Antimicrobial Protection | Yes |
| Color/Finish | Stainless Steel Finish |
| Installation Type | Modular |
| Features | QR Code for Service / Warranty / Parts / Manual Info |
| AutoAlert Indicator Lights | Yes |
| Sealed Maintenance-Free Bearings | Yes |
| REVIT Drawings Available | Yes |
| Power | Electric |
| Voltage | 115 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 16.0 |
| Hardwired | Yes |
The nugget-style ice form displaces more liquid than cube-style ice that can help save syrup costs per cup. This Prodigy Plus nugget ice machine makes the harder, compacted H2 nugget ice that is approximately 3/4" x 5/16" x 3/8" that has an approximate 85% ice hardness rating.
All Prodigy Plus nugget ice machines feature advanced self-diagnostic AutoAlert LED indicator lights to indicate diagnostics and continuously show the machine's operating status. There is a front-located air filter on the ice machine that is easy to remove, rinse and reuse, and a self-aligning front panel gives easy access to key internal components.
There is AgION Antimicrobial technology on the internal surfaces of this nugget ice machine to protect it against bacteria, mold, and mildew. The ice machine also features a durable stainless steel evaporator and auger.
The NH0622A-1 Prodigy Plus modular cube ice machine is an electrical unit that runs on 115 Volts, 60 Hz, 1-phase, and 16.0 Amps, and hardwiring is required. The ice machine is engineered and assembled in the USA, NSF listed, and UL listed in the United States and Canada.
The sealed bearings on the Prodigy Plus ice machine make them maintenance-free and provide long-lasting performance.
An industry-exclusive QR code on each nugget ice machine provides quick access to warranty history and service information, as well as giving you connections to parts lists, cleaning instructions, manuals, and more. Optional Vari-Smart ice level control and a Smart-Board module for additional diagnostic capabilities are available.
The NH0622A-1 Prodigy Plus 22" wide nugget ice machine uses a self-contained air-cooled condenser to produce up to 644 lb of hard H2 nugget ice per day.
Scotsman NH0622A-1 Features
- Prodigy Plus series, the world's only self-monitoring ice machine
- Ice Production: 644 lb of ice per day
- AutoAlert LED indicator lights
- Stainless steel finish
- Self-aligning front panel
- Front-located air filter
- Refrigerant: R-404a
- Sealed bearings
- Stainless steel evaporator and auger
- Electrical specifications: 115 Volts, 60 Hz, 1-phase, and 16.0 Amps
- 22" wide
- Ice Type: Hard H2 Nugget (3/4" x 5/16" x 3/8")
- Condenser Type: Air-Cooled
Scotsman NH0622A-1 Benefits
- AgION Antimicrobial technology protection guards internal surfaces against bacteria, mold, and mildew
- UL listed in the United States and Canada
- NSF tested and certified
- Engineered and assembled in the USA
- Nugget ice displaces more liquid than cube-style ice, saving syrup costs per cup
- Smart-Board module available for additional diagnostic capabilities
- Industry-exclusive QR code provides quick access to warranty history, service information, parts lists, cleaning instructions, manuals, and more
- NAFEM Data Protocol compliant
- AHRI Certified
- ISO Certified
- Maintenance-free sealed bearings provide long-lasting performance
Overall Dimensions:
Height: 23"
Width: 22"
Depth: 24"
Ice Production: 644 lb/24 hours
