Scotsman HID540A-1 Meridian Countertop 21 1/4" Wide Nugget Ice Air-Cooled Ice Machine And Water Dispenser, 500 lb/24 hr Ice Production, 40 lb Storage, 115V
| Ship Weight | 215 lb |
| Manufacturer | Scotsman |
| Model Number | HID540A-1 |
| Manufacturer Part # | HID540A-1 |
| Hazardous Materials | No |
| Oversized Shipping | No |
| Type | Ice / Water Combination Machines |
| Height | 41 Inches |
| Width | 21 1/4 Inches |
| Depth | 24 3/8 Inches |
| Installation Type | Countertop |
| Ice Type | Nugget Ice (3/4" x 5/16" x 3/8") |
| Condenser Type | Air-Cooled |
| Ice Storage Capacity | 40 lb |
| Ice Production | 500 lb/24 hours |
| Dispenser Style | Sensor |
| Height To Dispenser | 11 Inches |
| Made In USA | Yes |
| NSF Listed | Yes |
| UL Listed | Yes |
| CE Listed | Yes |
| AHRI Certified | Yes |
| Power Usage | 5.50 kWh per 100 lb |
| Water Usage | 12 Gallons per 100 lb |
| Refrigerant | R-404A |
| Power | Electric |
| Voltage | 115 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 9.0 |
| Plug | NEMA 5-15P |
| REVIT Drawings Available | Yes |

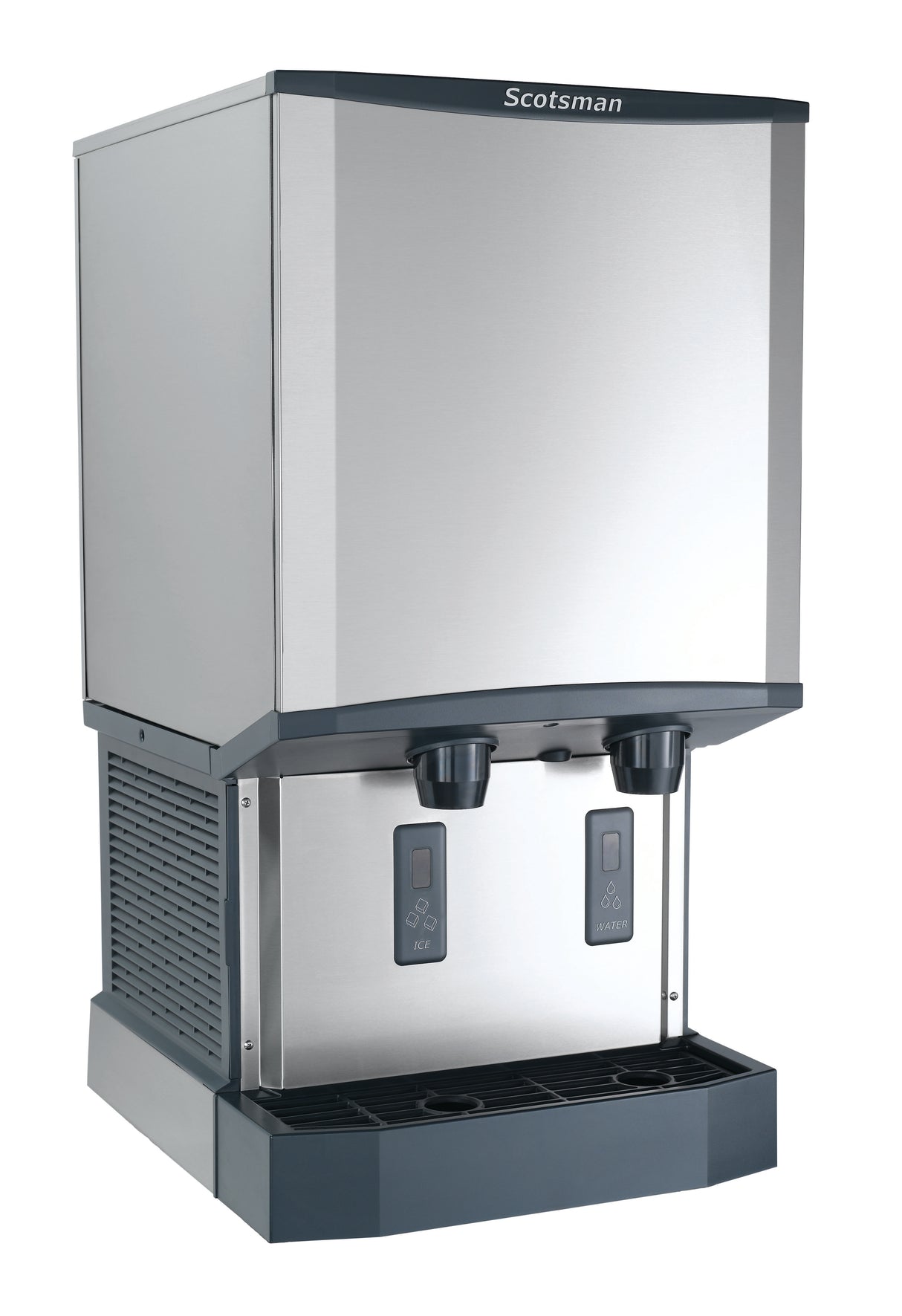

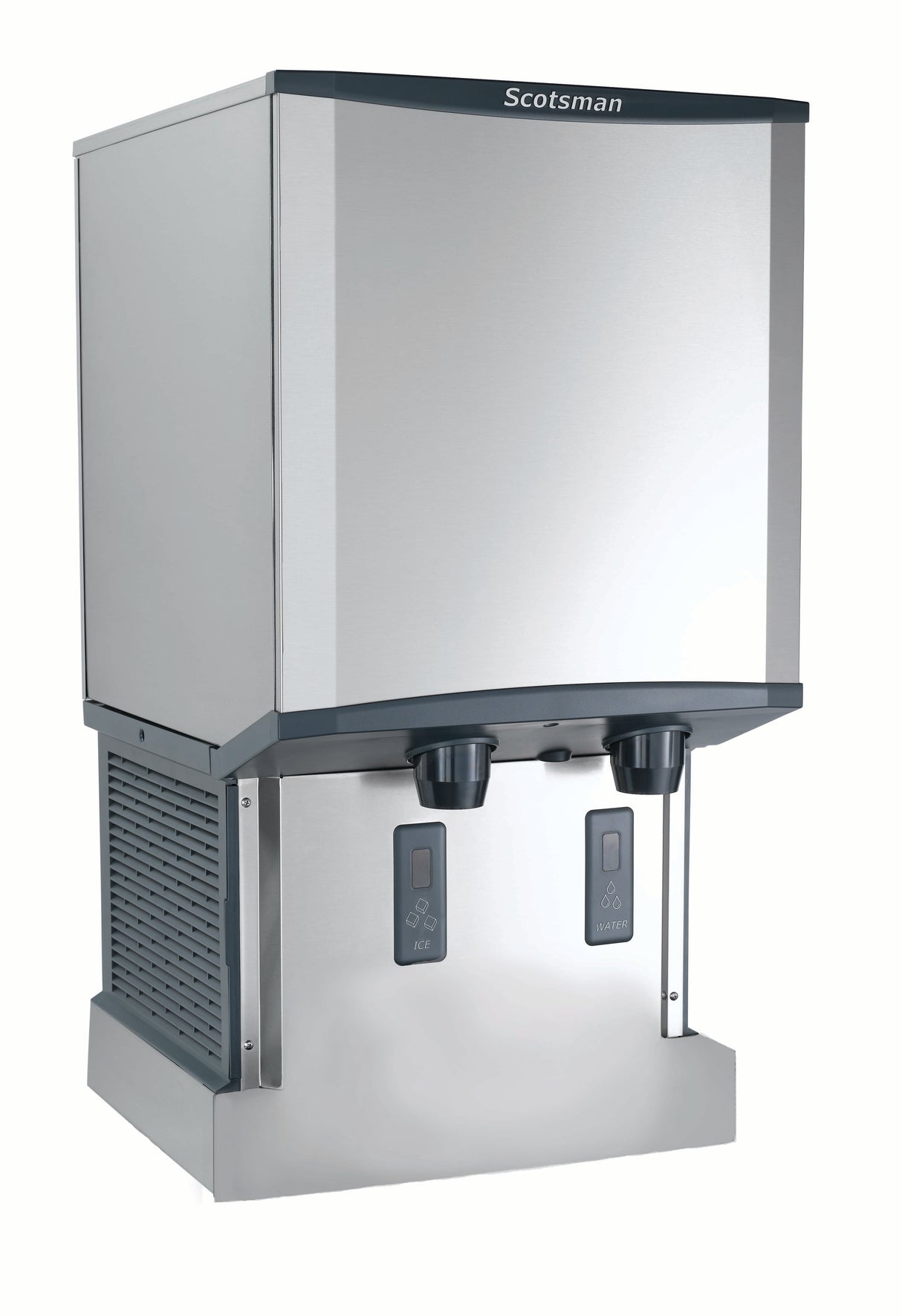

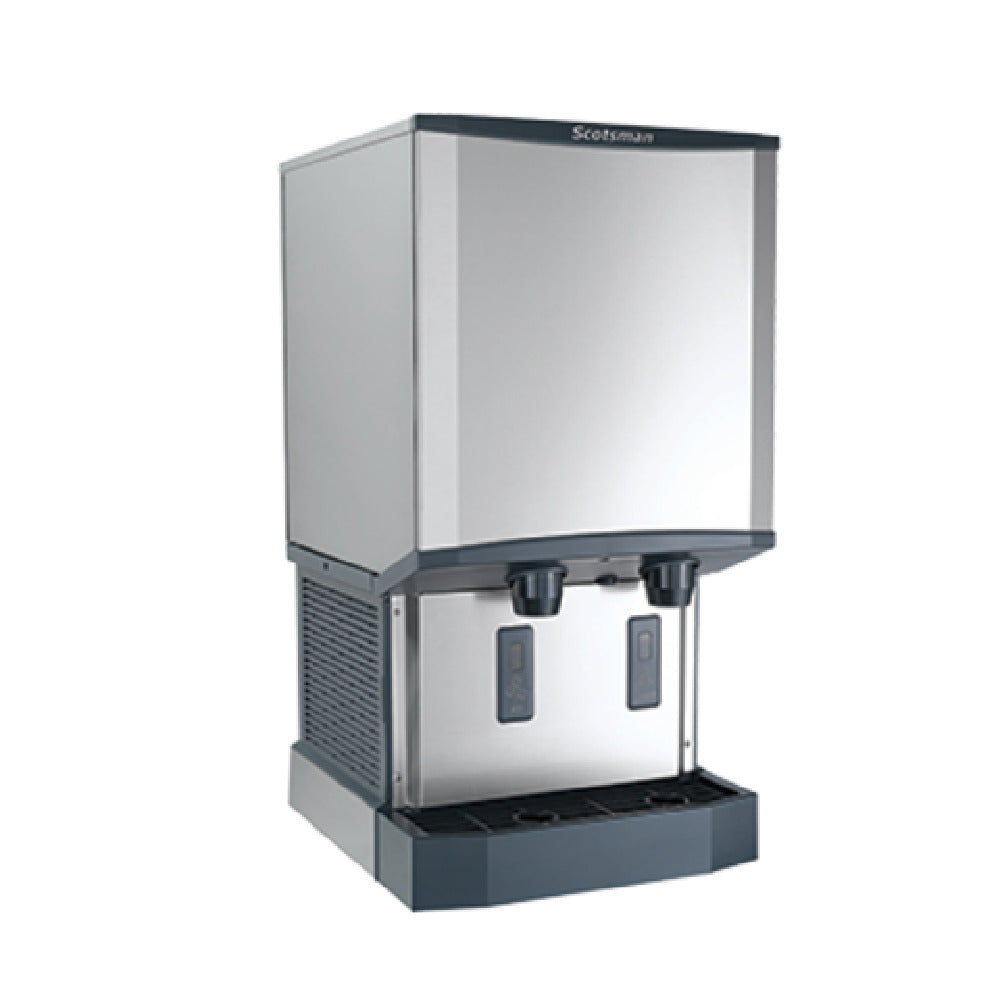

The HID540A-1 is a Meridian Ice and Water Dispenser from Scotsman with a Touch-Free Sensor. This air-cooled dispenser produces H2 (harder) nugget ice. It utilizes an R-404a refrigerant. The exterior is constructed of stainless steel, as are the evaporator and auger. There is a maximum production capacity of 500 lbs over the course of 40 hours, with a storage bin capable of holding 25 lbs at once. The model is designed for maximizing space, with a small footprint relative to the capacity. The bearings are sealed and maintenance free.
The sink, grill, bin, filter, and sprouts are all removable for easy cleaning. SmoothStream water technology is utilized to reduce splashing. The refrigeration system is sealed for added safety. AgION, as well as other antimicrobial compounds are included to prevent the growth of algae, bacteria, and mold. The unit also includes enhanced service features, such as LED diagnostic lights and a USB drive.
The Scotsman HID540A-1 is an electric unit that runs on 115 Volts, 60Hz, single phase at 9.0 amps and the ice machine and water dispenser includes a 7.5' power cord with a NEMA 5-15P plug.
Scotsman HID540A-1 Features
- Ice and Water Dispenser
- Touch-Free Sensor
- Air-cooled condenser unit
- Produces chewable, slow-melting H2 nugget ice: 3/4” x 5/16” x 3/8” (1.9 x 0.8 x 0.95 cm)
- 24-hour volume production: 500 lb (227 kg)
- 40 lb bin storage capacity
- Includes water dispenser
- Stainless steel evaporator and exterior panels
- AquaArmor with AgION molded into key components
- External air filter
- BTUs per hour: 6,800
- LED diagnostic lights
- Refrigerant: R-404a
- USB drive
- Removable front panels, storage bin, sink and grill
- Electrical specifications: 115 Volts, 60Hz, single phase, 9.0 amps
- 7.5' power cord with a NEMA 5-15P plug
- AHRI Certified
- Revit drawings available
- ISO Certified
- CE marked
- UL listed
- Made in the USA
Scotsman HID540A-1 Benefits
- Improved condenser fan function for quieter operation
- QR code gives you quick access to warranty history and service manuals
- Includes USB drive for fast software updates
- Front panels, storage bin, sink and grill are all removable for easy cleaning
- Greaseless bearings require less maintenance
- Antimicrobial AquaArmor with AgION prevents bacteria, mold and mildew
Overall Dimensions:
Height: 41"
Width: 21 1/4"
Depth: 24 3/8"
Ice Production: 500 lb/24 hours
Ice Storage Capacity: 40 lb
