Scotsman HID525AB-1 Meridian Countertop 21-1/4" Wide Nugget Ice Air-Cooled Ice Machine And Water Dispenser, 500 lb/24 hr Ice Production, 25 lb Storage, 115V

Item
#572606
MFG
#HID525AB-1
Specification Specifications
Ship Weight 208 LBS
Manufacturer Scotsman
Model Number HID525AB-1
Manufacturer Part # HID525AB-1
Hazardous Materials No
Oversized Shipping No
Type Ice / Water Combination Machines
Installation Type Countertop
Ice Type Nugget Ice (3/4" x 5/16" x 3/8")
Condenser Type Air-Cooled
Ice Storage Capacity 25 LBS
Ice Production 500 LBS/24 hours
Dispenser Style Push Button
Height To Dispenser 11"
Country of Origin USA
NSF Listed Yes
cULus Listed Yes
CE Listed Yes
AHRI Certified Yes
Power Usage 5.50 kWh per 100 lb
Water Usage 12 Gallons per 100 lb
Refrigerant R-404A
Power Electric
Electrical Specifications 115V/60Hz/1-Ph/9.0 Amps
Plug NEMA 5-15P
REVIT Drawings Available Yes
Dimensions (WxDxH) 21.25" x 24.38" x 35"
View all Specifications
Description

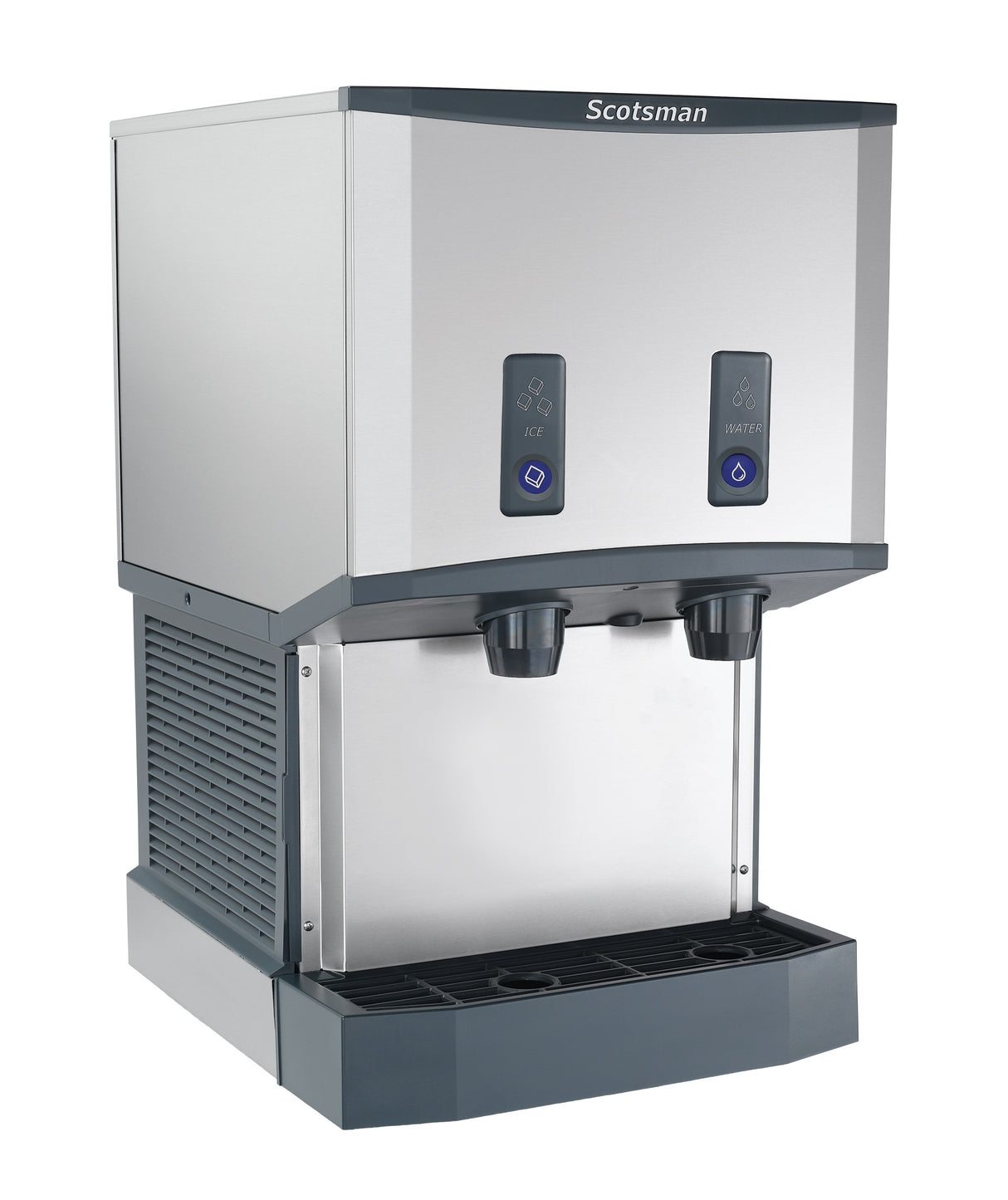

The HID525AB-1 is a Meridian Ice and Water Dispenser from Scotsman with a Push-Button Operation. This air-cooled dispenser produces H2 (harder) nugget ice. It utilizes an R-404a refrigerant. The exterior is constructed of stainless steel, as are the evaporator and auger. There is a maximum production capacity of 500 lbs over the course of 24 hours, with a storage bin capable of holding 25 lbs at once. The model is designed for maximizing space, with a small footprint relative to the capacity. The bearings are sealed and maintenance free.

The sink, grill, bin, filter, and sprouts are all removable for easy cleaning. SmoothStream water technology is utilized to reduce splashing. The refrigeration system is sealed for added safety. AgION, as well as other antimicrobial compounds are included to prevent the growth of algae, bacteria, and mold. The unit also includes enhanced service features, such as LED diagnostic lights and a USB drive.

The Scotsman HID525AB-1 is an electric unit that runs on 115 Volts, 60Hz, single phase at 9.0 amps and the ice machine and water dispenser includes a 7.5' power cord with a NEMA 5-15P plug.

Scotsman HID525AB-1 Features

  • Ice and Water Dispenser
  • Material: Stainless Steel
  • Color: Silver
  • Shape: Rectangular
  • Bin Storage Capacity: 25 LBS
  • Electrical Specifications: 115v/60/1-ph/9.0 Amps
  • Smoothstream Water Dispensing
  • H2 Nugget Ice
  • Air-Cooled
  • Production Capacity Up To 500LBS/24HRS At 70°/50° (365LBS AHRI Cert. At 90°/70°)
  • Sealed Maintenance-Free Bearings
  • Removable Bin
  • Removable Air Filter
  • Removable Spouts And Sink
  • Enlarged 0.8" Sink Drain
  • Recessed Utility Chase
  • Stainless Steel Evaporator And Auger
  • Enlarged 11" Dispensing Area
  • USB Software Upgrade Port
  • Unit Specific QR Code
  • Agion Antimicrobial Protection
  • R-404A Refrigerant
  • Includes 7.5' Power Cord w/ NEMA 5-15p Plug
  • cULus Listed
  • NSF Listed
  • CE Listed
  • Engineered And Assembled In USA

Scotsman HID525AB-1 Benefits

  • Nugget ice is chewable, slow-melting, and dispenses reliably
  • Antimicrobial AgION prevents bacteria, mold and mildew
  • Sturdy stainless steel exterior helps ensure long lasting usage
  • QR code gives you quick access to warranty history and service manuals
  • Front panels, storage bin, sink and air filter are all removable for easy cleaning
  • Includes USB drive for fast software updates

Overall Dimensions:

Width: 21-1/4"

Depth: 24-3/8"

Height: 35"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made In America
Made In America
This item was made in the United States of America.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
CE Listed
CE Listed
This item complies with the standards by the Conformance European (CE), a division of the Intertek group.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
ARI / AHRI
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Free Shipping
Add this item to the cart to calculate your shipping rate
$7,118.00
Each
Shipping
Typically ships in 2-3 business days.
  • Bin Storage Capacity: 25 LBS
  • Electrical Specifications: 115v/60/1-ph/9.0 Amps
  • Smoothstream Water Dispensing
  • Push-Button Dispensing
  • H2 Nugget Ice
  • Air-Cooled
  • Production Capacity Up To 500LBS/24HRS At 70°/50° (365LBS AHRI Cert. At 90°/70°)
  • Sealed Maintenance-Free Bearings
  • Removable Bin
  • Removable Air Filter
  • Removable Spouts And Sink
  • Enlarged 0.8" Sink Drain
  • Recessed Utility Chase
  • Stainless Steel Evaporator And Auger
  • Enlarged 11" Dispensing Area
  • USB Software Upgrade Port
  • Unit Specific QR Code
  • Agion™ Antimicrobial Protection
  • R-404A Refrigerant
  • Includes 7.5' Power Cord w/ NEMA 5-15p Plug
  • cULus Listed
  • NSF Listed
  • CE Listed
  • Engineered And Assembled In USA
  • Warranty Info
  • 3 Years Parts and Labor On All Components
  • 5 Years Parts on Compressor and Condenser
