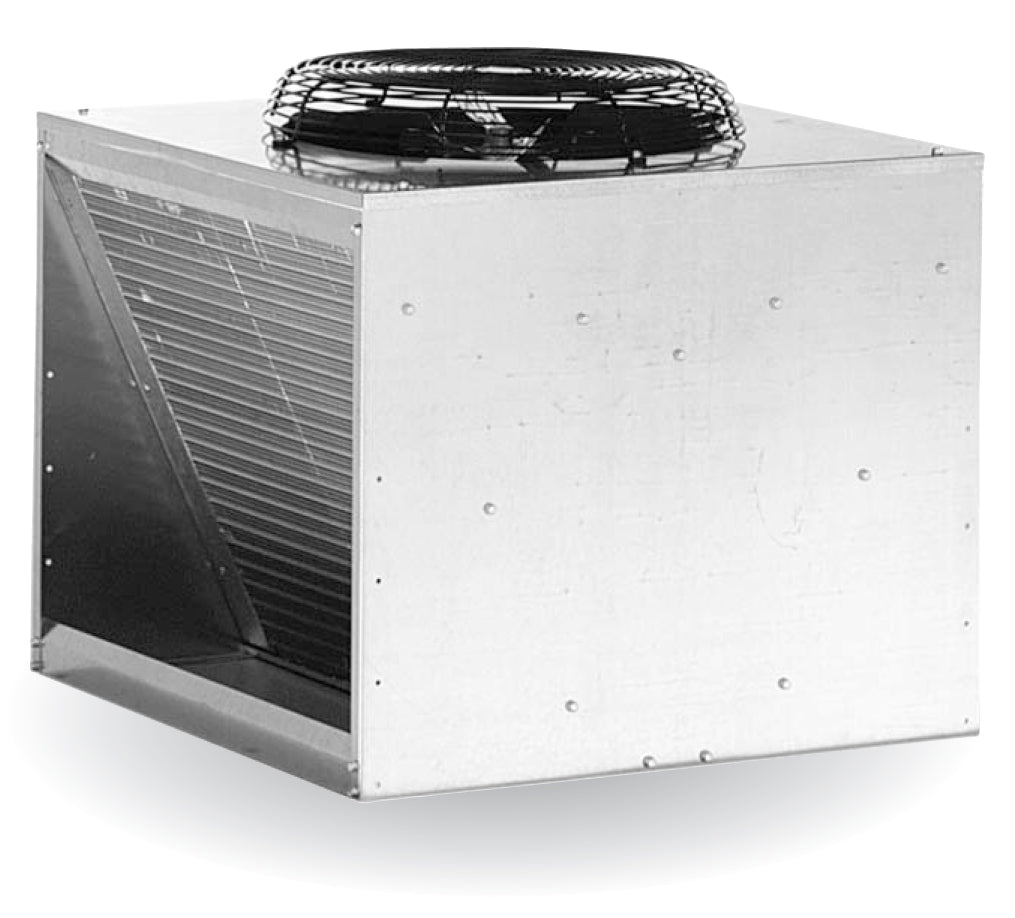

Scotsman ERC111-1 ERC Series Air Cooled Remote Condensing Unit For Prodigy Ice Machines, 115V

Item
#290495
MFG
#ERC111-1
Specification Specifications
Ship Weight 95 lb
Manufacturer Scotsman
Model Number ERC111-1
Manufacturer Part # ERC111-1
Type Remote Condensers
Height 38.5 Inches
Width 29.5 Inches
Depth 29.125 Inches
Material Heavy-Gauge Galvanized Steel
Ice Machine Series Prodigy
Condenser Type Remote Air-Cooled
Temperature Range -20 to 120 Degrees F
Usage Scotsman C0522xR and C0530xR Ice Machines
Made In USA Yes
UL Listed Yes
Power Electric
Voltage 115
Hertz 60
Phase 1
Amps 3.4
View all Specifications
Description

This is a remote condensing unit that will work with Prodigy model ice machines from Scotsman. These remote condensing units feature thermally protected fan motors, PVC coated steel fan guards, direct-drive fan blades and have standard Aeroquip fittings.

The condensing unit is designed to be powered by the ice machine they are connected to and will maximize ice production by driving heat away from the ice machine. The galvanized steel finish resists corrosion and extends the life of the condensing unit. There are a variety of pre-charged, insulated, refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft, and 75 ft lines.

The ERC111-1 runs on 115 Volts, 60 Hz, 1-phase, 2.7 amps and they can be used in an outdoor temperature range between -20 to 120 degrees F.

Scotsman ERC111-1 Features

  • Remote condensing unit designed for Prodigy model ice machines
  • Galvanized steel finish
  • Thermally protected fan motors
  • PVC coated steel fan guards
  • Direct drive fan blades
  • Aeroquip fittings
  • Operates in outdoor temperature range between -20 to 120 degrees F
  • Electrical specifications: 115 Volts, 60 Hz, 1-phase, 2.7 amps
  • For use on: Scotsman C0522xR and C0530xR ice machines

Scotsman ERC111-1 Benefits

  • Corrosion-resistant galvanized steel finish
  • Quiet operation makes them ideal for dining and working environments
  • Maximizes ice production by driving heat away from the ice machine
  • Refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft and 75 ft lines
  • ISO Certified
  • UL listed
  • Made in the USA

Overall Dimensions:
Height: 38.5"
Width: 29.5"
Depth: 29.125"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made In America
Made In America
This item was made in the United States of America.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Free Shipping
Add this item to the cart to calculate your shipping rate
$1,085.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Remote condensing unit designed for Prodigy model ice machines
  • Quiet operation makes them ideal for dining and working environments
  • Maximizes ice production by driving heat away from the ice machine
  • Galvanized steel finish
  • Thermally protected fan motors
  • PVC coated steel fan guards
  • Direct drive fan blades
  • UL listed
  • Made in the USA
  • Warranty Info
    3 Years Parts and Labor On All Components
