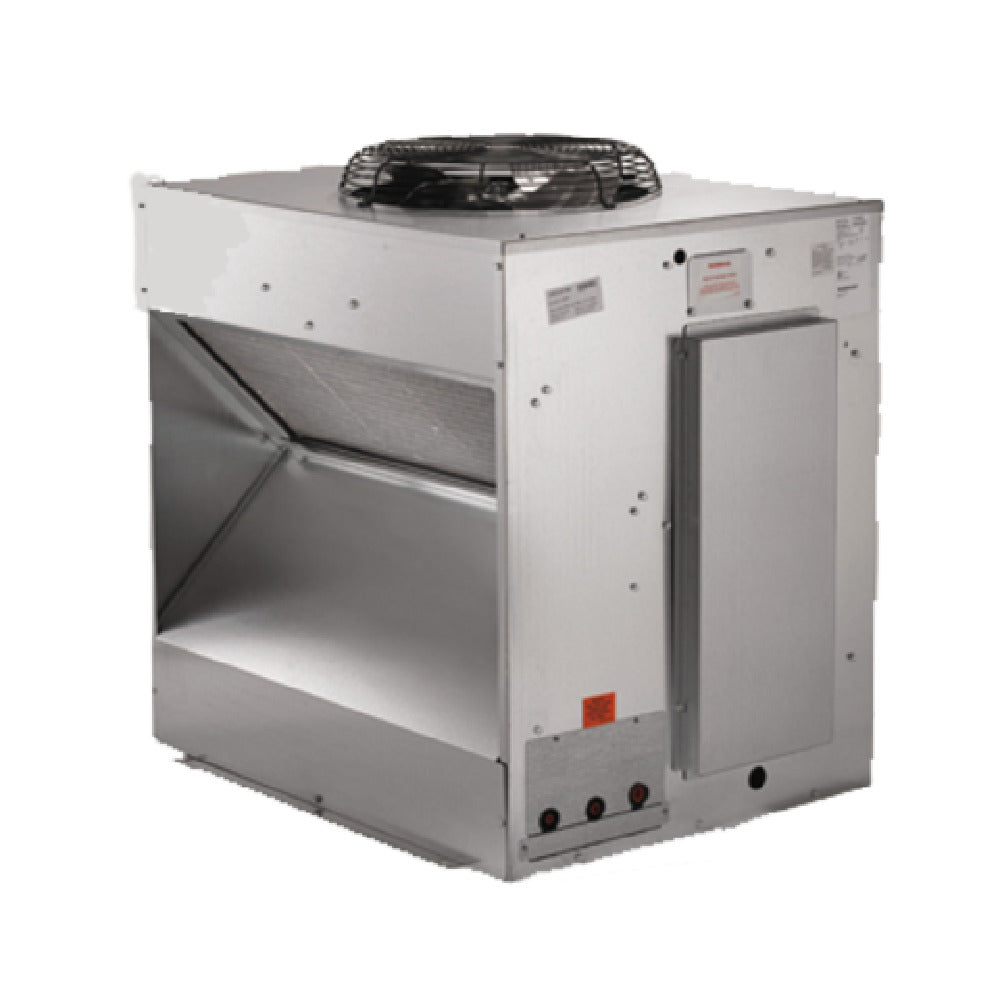

Scotsman ECC1200-32 ECC Series Air Cooled Remote Condensing Unit For Prodigy Eclipse Ice Machines, 1330 lb/24 hr Ice Production, 208-230V 1-Phase

Item
#290647
MFG
#ECC1200-32
Specification Specifications
Ship Weight 310 lb
Manufacturer Scotsman
Model Number ECC1200-32
Manufacturer Part # ECC1200-32
Type Remote Condensers
Height 39 3/4 Inches
Width 39 1/8 Inches
Depth 32 1/16 Inches
Ice Machine Series Prodigy Eclipse
Condenser Type Remote Air-Cooled
Ice Production 1330 lb/24 hours
Made In USA Yes
UL Listed Yes
Power Electric
Voltage 208-230
Hertz 60
Phase 1
Amps 17.8
View all Specifications
Description

This is an energy-efficient, dedicated condensing unit for Prodigy Plus Eclipse ice machines from Scotsman. These air-cooled, remote condensing units operate quietly, making them ideal for dining and working environments. The condensing unit is designed to be controlled by the ice machines they are connected to and will maximize ice production by driving heat away from the ice machine. The one-piece design on this remote condensing unit makes installation and service easy.

The ECC1200-32 runs on 208-230 Volts, 60 Hz, 1-phase, 17.8 amps and they can be used in an outdoor temperature range between -20 to 120 degrees F.

Scotsman ECC1200-32 Features

  • Dedicated condensing unit for Prodigy Plus Eclipse ice machines
  • Air-cooled remote unit
  • One-piece design
  • Operates in outdoor temperature range between -20 to 120 degrees F
  • Electrical specifications: 208-230 Volts, 60 Hz, 1-phase, 17.8 amps

Scotsman ECC1200-32 Benefits

  • Energy-efficient components save money
  • Quiet operation makes them ideal for dining and working environments
  • Maximizes ice production by driving heat away from the ice machine
  • ISO Certified
  • UL listed
  • Made in the USA

Overall Dimensions:
Height: 39 3/4"
Width: 39 1/8"
Depth: 32 1/16"

Ice Production: 1330 lb/24 hours

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Free Shipping
Add this item to the cart to calculate your shipping rate
$4,888.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Dedicated condensing unit for Prodigy Plus Eclipse ice machines
  • Air-cooled remote unit
  • Operates in outdoor temperature range between -20 to 120 degrees F
  • Electrical specifications: 208-230 Volts, 60 Hz, 1-phase, 17.8 amps
  • Quiet operation makes them ideal for dining and working environments
  • Maximizes ice production by driving heat away from the ice machine
  • ISO Certified
  • UL listed
  • Made in the USA
  • Warranty Info
    3 Years Parts and Labor On All Components
