American Panel 6X12-I 11 Inch Walk-In Combination Cooler Freezer Indoor Acrylume

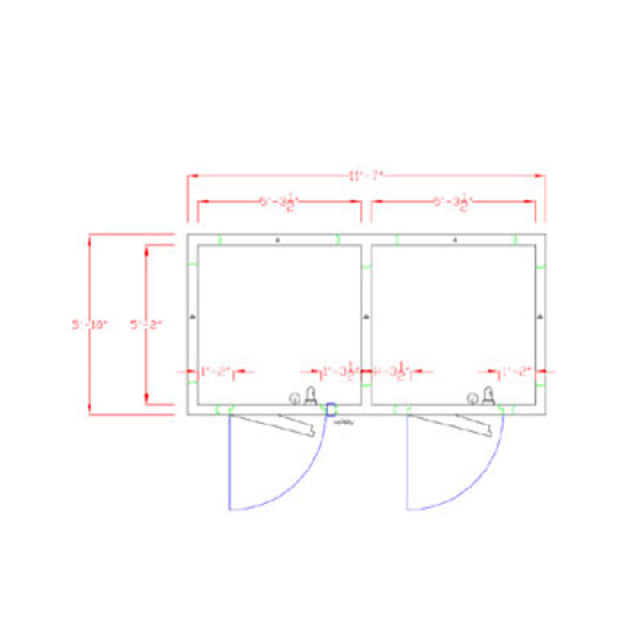

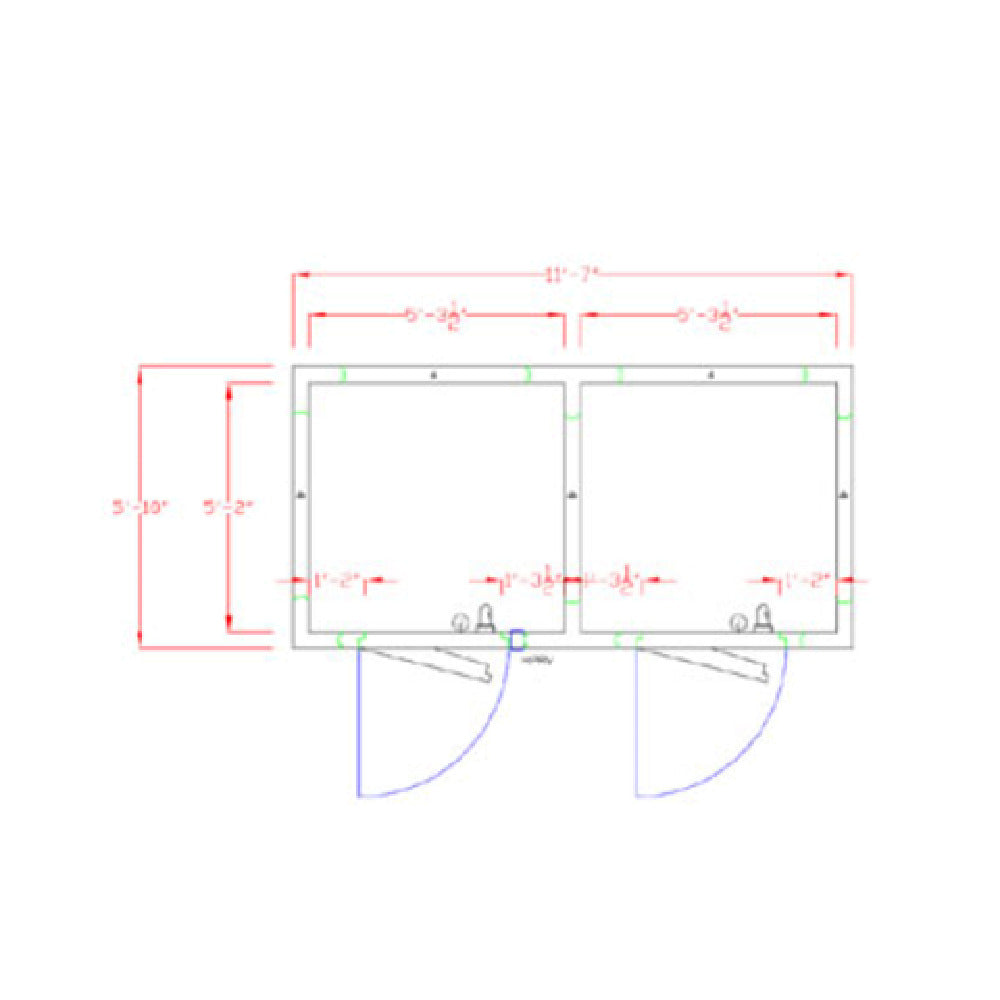

The American Panel 6X12-I Walk-In Combination Cooler-Freezer (50/50 split) is a commercial-grade, self-contained refrigeration unit designed for indoor installation in foodservice environments. Measuring 7'-6" in height, 11'-7" in width, and 5'-10" in depth, this model features a robust construction with acrylume interior and exterior finishes. It incorporates foamed-in-place 4" urethane floor panels for efficient insulation in the freezer section and is floorless over vinyl screed in the cooler zone. Equipped with a hermetically sealed R448a refrigeration system—including a 1 HP low-temperature (-10°F) freezer compressor and a 1/2 HP medium-temperature (35°F) cooler compressor—this unit combines reliability with energy efficiency. The inclusion of an Intelligent Controller (IC), vapor-proof lighting, and cam-lift hinges on the hinged doors enhances operational dependability. These technical features make it suitable for mid-volume food retail, hospitality, or institutional kitchens requiring precise temperature control and durable construction.

Top American Panel 6X12-I Features

This walk-in combination cooler/freezer offers dual refrigeration zones with a 50/50 split, providing separate, consistent temperature environments. Its acrylume finish ensures corrosion resistance, while the foamed-in-place urethane panels deliver superior insulation. Easy to maintain with hinged doors and cam-lift hinges, it is optimized for reliable operation in high-traffic commercial kitchens. Designed for indoor use, it integrates seamlessly with existing refrigeration systems, supporting workflow efficiency and product preservation.

• Independent refrigeration zones: 50/50 split for precise temperature segregation
• Corrosion-resistant acrylume finish: Enhances durability in busy environments
• Foamed-in-place 4" urethane panels: Ensures optimal insulation and energy efficiency
• Hinged doors with cam-lift hinges: Facilitates easy access and maintenance
• Integrated IC control system: Provides accurate temperature monitoring and control

Ideal for mid-volume food storage, restaurant prep, or facility maintenance requiring reliable dual-zone refrigeration.

American Panel 6X12-I Technical Specs

The American Panel 6X12-I operates with self-contained refrigeration systems powered by dual compressors— a 1 HP motor for the freezer section at -10°F and a 1/2 HP unit for the cooler at 35°F. It’s designed for indoor installation, with an overall footprint of 139" W x 70" D x 90" H, and weighs approximately 1170 pounds. The unit features a corrosion-resistant acrylume finish on both interior and exterior surfaces, with a construction that supports a maximum operating temperature range suitable for commercial food storage. Its standard refrigeration system is air-cooled, and the design meets industry standards for commercial kitchen equipment. Power requirements include 115V/60Hz/1-phase for the cooler and 208V/60Hz/1-phase for the freezer, with respective fan and heater amperages. The unit is built with durable, high-quality panels and includes vapor-proof lighting, providing a reliable environment for perishable products. Maintenance is straightforward with hinged doors, and installation requires indoor clearance for airflow and drainage.

• Electrical Requirements: 115V/60Hz/1-phase (cooler), 208V/60Hz/1-phase (freezer)
• Cooling Method: Air-cooled self-contained system
• Refrigeration Type: Hermetically sealed R448a system
• Production Capacity: 24-hour chill or freeze cycles per specifications
• Construction & Finish: Acrylume with durable steel panels
• Dimensions: 139" W x 70" D x 90" H (355 cm x 178 cm x 229 cm)
• Operating Range: -10°F to 35°F (-23°C to 2°C)
• Weight: 1170 lbs (531 kg)
• Temperature Tolerance: Designed for precise control within specified temperature ranges for frozen and refrigerated storage
• Maintenance Features: Hinged doors, vapor-proof lighting, accessible panels

• Electrical Compatibility: Requires dedicated 115V and 208V circuits accordingly
• Installation Clearances: Adequate airflow space recommended on all sides for efficiency
• Drainage Needs: Proper drainage for condensation to prevent water accumulation
• Ventilation: Air-cooled condensing units require adequate ventilation space
• Access Requirements: Clear access for door operation and maintenance

What is a commercial walk-in combination cooler freezer?

A commercial walk-in combination cooler freezer is a large, integrated refrigeration unit designed for indoor environments, providing separate cooled and frozen storage in a single structure. The American Panel 6X12-I model, featuring a 50/50 split, is installed in professional kitchens, grocery stores, or food manufacturing facilities. It is equipped with self-contained, hermetically sealed refrigeration systems that ensure reliable temperature control with minimal maintenance. Suitable for moderate-volume food storage needs, this unit supports efficient workflow and product preservation in high-demand settings.

Top industrial walk-in combination coolers for mid-volume foodservice

Constructed with high-quality acrylume finishes and featuring independent refrigeration zones, the American Panel 6X12-I offers precision and durability. Designed for reliable operation in commercial kitchens, it supports mid-volume food storage, facilitating seamless workflow. Its self-contained refrigeration and robust insulation make it suitable for restaurant, institutional, or retail use, ensuring optimal climate control and energy efficiency over extended operational periods.

• Operation Type — Suited for moderate-volume food storage environments
• Kitchen Setting — Ideal for commercial kitchens and food retail stores
• Foodservice Category — Suitable for refrigerated and frozen product storage
• Workload Qualification — Meets the demands of medium throughput food operations
• Use Case — Supports efficient, dual-temperature storage for perishable goods

Why Choose American Panel 6X12-I?

American Panel 6X12-I offers a reliable, durable, and space-efficient walk-in refrigerator and freezer combination that stands out with its corrosion-resistant acrylume finish and independent dual-zone refrigeration. Its robust construction, easy-to-maintain hinged doors, and precise temperature controls enhance operational efficiency and sanitation, making it a preferred choice for commercial foodservice establishments seeking dependable, restaurant-ready refrigeration solutions.

• Self-contained system: Simplifies installation and maintenance compared to remote units
• Compact footprint: Fits seamlessly in tight kitchen layouts
• Enhanced insulation: Foamed-in-place urethane panels for energy savings
• Dual refrigeration zones: Enables precise storage for frozen and chilled items
• Durable acrylume finish: Ensures long-term resistance to corrosion and wear
