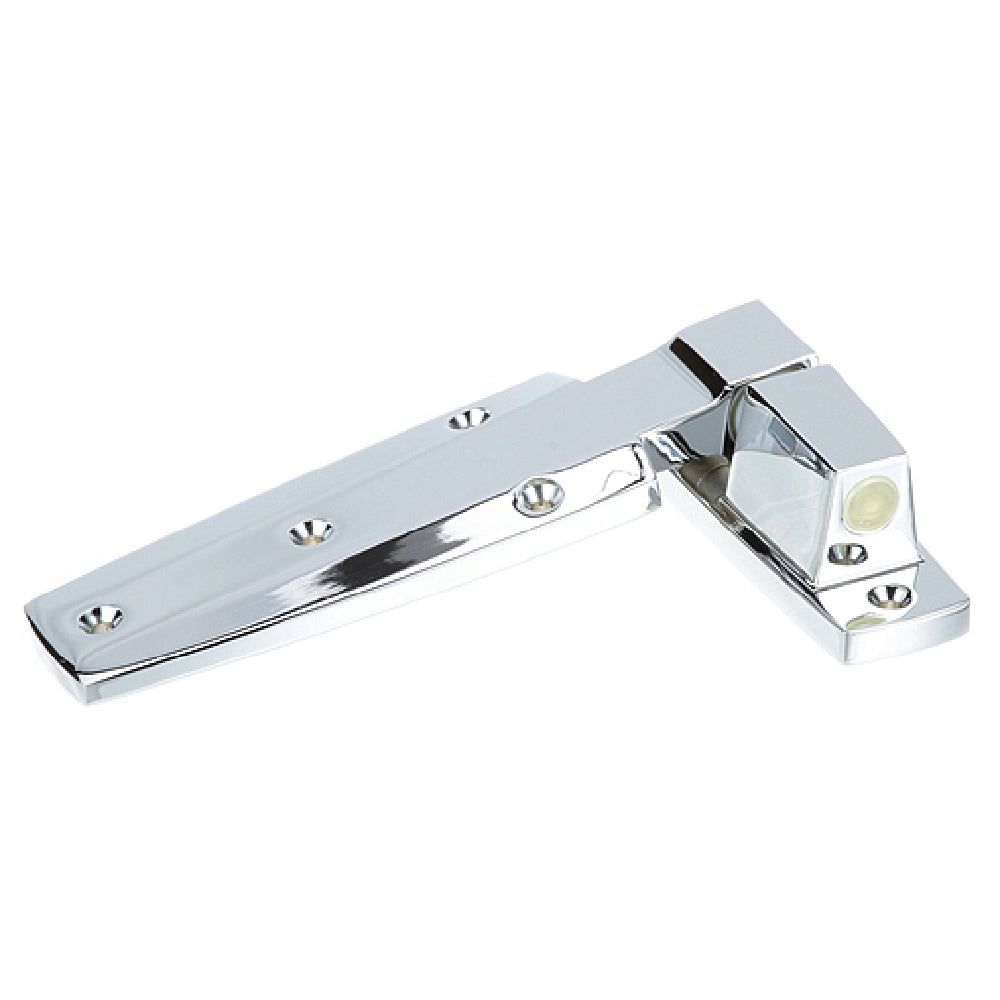

AllPoints W60-1125 5.5 Inch Reversible Cam Rise Lift Off Hinge Die-Cast Zamack Polished Chrome

The Component Hardware Group W60-1125 Hinge Assy is a high-precision, commercial-grade hinge designed for dependable performance in architectural and cabinetry applications. Constructed from die-cast Zamack polished chrome, this reversible cam rise lift-off hinge features a 1-1/4" offset and measures 5-1/2" by 10" with strap hole centers at 5-1/16" and flange hole centers at 4-1/2". It serves as a robust replacement component within the Kiel Series 9300l and is engineered for compatibility with Series 1245 2860 units. Its precise dimensions and durable material composition make it suitable for high-demand project environments requiring reliable hinge operation and ease of maintenance.

Top AllPoints W60-1125 Features

The W60-1125 hinge assembly is optimized for commercial woodworking, cabinetry, and or industrial door systems, providing exceptional durability and ease of installation. Designed for high-performance hinge operation, it incorporates a polished chrome finish for corrosion resistance, supporting frequent cycles in demanding environments. The hinge’s lift-off function permits quick door removal, increasing workflow efficiency for service and maintenance tasks. Its symmetrical design ensures smooth reversible movement, fitting diverse architectural setups. The precise 5-1/16" strap hole centers and 4-1/2" flange hole centers enable versatile mounting, suitable for modern commercial cabinetry and architectural doors.

• Function and Performance: Reversible cam rise for versatile door operation
• Durability Traits: Die-cast Zamack material with polished chrome finish for corrosion resistance
• Ease of Use and Maintenance: Lift-off capability simplifies door removal and re-installation
• Fit and Application: Designed for standard Kiel Series 9300l replacements in commercial environments
• Workflow Benefits: Precise dimensions facilitate quick and secure mounting in high-use settings

Ideal for commercial cabinet, architectural door, or retrofit applications requiring reliable hinge performance

AllPoints W60-1125 Technical Specs

The W60-1125 hinge assembly is manufactured in China with dimensions of 5.5" width, 9.5" depth, and 2" height, weighing approximately 2.75 lbs per unit. It features a die-cast Zamack construction finished in polished chrome, ensuring durability and corrosion resistance for sustained high-usage performance. No electrical components or cooling systems are involved; it is a purely mechanical hinge designed for static mounting. The hinge’s secure fit supports high-cycle applications with a standard mounting pattern, including strap hole centers at 5-1/16" and flange hole centers at 4-1/2". Its configuration allows for installation in various door assemblies requiring consistent hinge action, with easy disassembly for maintenance or replacement.

• Dimensions: 5.5" W x 9.5" D x 2" H
• Material and Finish: Die-cast Zamack with polished chrome coating
• Weight: 2.75 lbs per unit
• Mounting Compatibility: Standard strap and flange hole centers compatible with Kiel Series 9300l
• Operating Range: Suitable for continuous use in commercial cabinetry and architectural panel systems
• Installation Requirements: Requires common mounting tools, no special electrical or plumbing connections needed

What is a commercial hinge assembly?

A commercial hinge assembly is a mechanically engineered connector designed to facilitate opening, closing, and secure attachment of doors or panels in high-traffic or industrial environments. The Component Hardware Group W60-1125 Hinge Assy, constructed from durable die-cast Zamack with a polished chrome finish, is typical of these assemblies. Ideal for use in cabinetry, architectural doors, and equipment enclosures, it offers reliable performance supported by precise dimensions and easy maintenance features. Installed in various commercial kitchens, retail, or industrial facilities, these hinges support robust door operation and service efficiency, making them suitable for mid-volume use in demanding settings.

Top commercial hinges for architectural and cabinetry applications

Reliable and durable, the AllPoints W60-1125 hinge excels in architectural and cabinetry projects, providing stable operation for medium-use environments such as commercial kitchens and retail stores. Built for versatility and longevity, it supports efficient door movement and easy replacement in high-traffic spaces. AllPoints W60-1125 ensures dependable hinge functionality for consistent architectural integrity.

• Operation Type — suited for moderate-cycle commercial applications
• Kitchen Type — ideal for architectural and cabinetry use in diverse facilities
• Foodservice Category — applicable for restaurant, retail, and institutional environments
• Workload Qualifier — supports moderate throughput door cycles
• Use Case — suited for servicing retail cabinetry and architectural door installations

Why Choose AllPoints W60-1125?

The AllPoints W60-1125 hinge assembly offers a durable, corrosion-resistant design with a polished chrome finish, providing a lifespan exceeding standard hinges. Its reversible cam rise lift-off feature enhances installation flexibility and facilitates door maintenance, while its precise dimensions ensure compatibility with existing high-volume cabinetry. This hinge improves operational efficiency by supporting smooth and reliable door movement in demanding environments, distinguishing it from less robust alternatives.

• Designed for sustained high-cycle commercial door performance
• Enhanced corrosion resistance with polished chrome finish
• Reversible cam rise lift-off for quick door removal
• Optimized for integration with Kiel Series 9300l and similar units
• Compact form factor suitable for space-constrained applications
