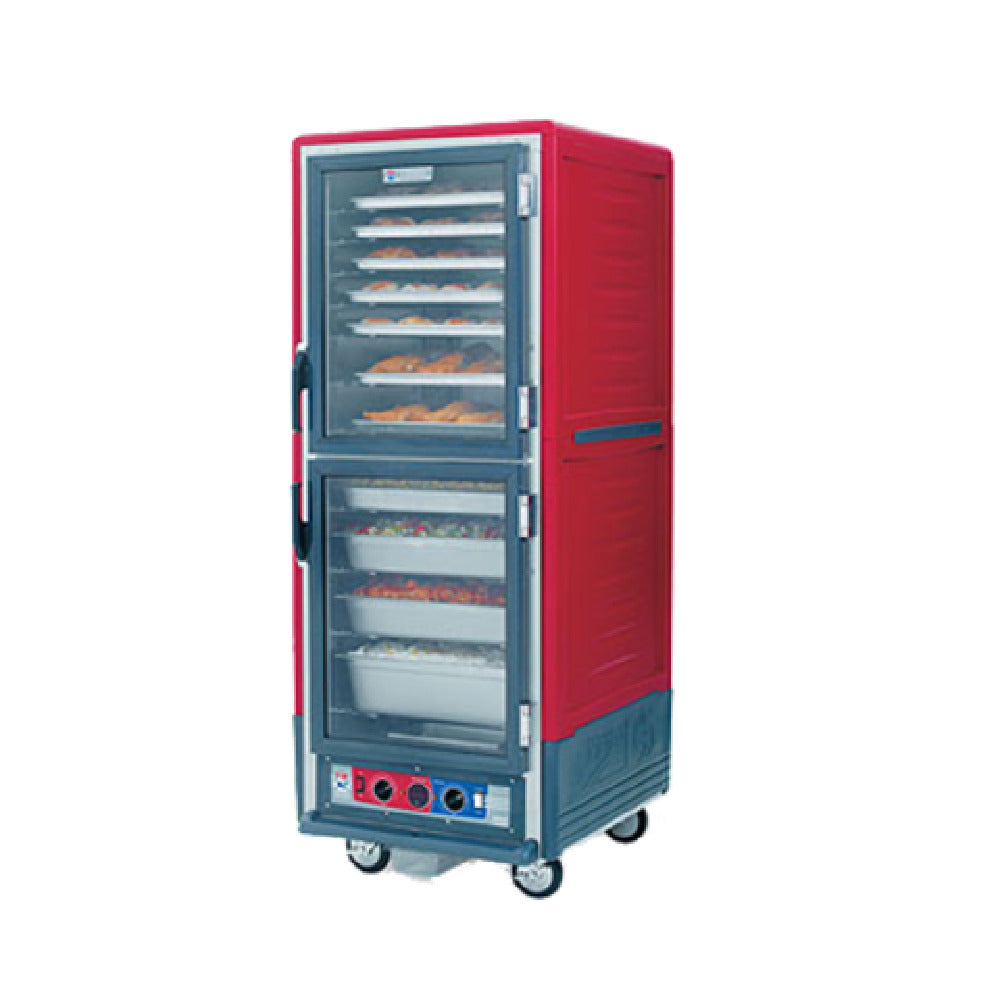

Metro C539-CDC-U Full Height Insulated Combination Heated Holding And Proofing Cabinet With 2 Clear Dutch Doors, Universal Wire Slides, 120 Volt
Ship Weight | 283 LB |
Manufacturer | Metro |
Model Number | C539-CDC-U |
Manufacturer Part # | C539-CDC-U |
Reference ID | 70562, C539-CDC-U |
Country Of Origin | United States of America |
Base Material | Aluminum |
Color(s) | Silver/Red |
Width | 27-5/8" Wide |
Depth | 30-1/2" Front to Back |
Height | 71" (Full Height) |
NSF Approved | Yes |
UL Listed | Yes |
ENERGY STAR | No |
Insulated | Yes |
Insulation Type | High Density Polyethylene (HDPE) |
Module Type | Heated Holding Cabinet |
Door Style | Dutch Clear Polycarbonate |
Number of Doors | 2 |
Slide Type | Universal Wire |
Slide Spacing | 3" (adjustable on 1-1/2" increments) |
Sheet Pan (18" x 26") Capacity | 18 |
Steam Table Pan, 2/1 GN or 1/1 GN Pan Capacity | 34 |
Control Type | Thermostatic |
Moisture Control | Yes |
Temperature Range | 80 - 200 degrees F |
Casters | 5" Swivel, 2 With Brakes |
Voltage | 120 |
Hertz | 60 |
Phase | 1 |
Amps | 16.7 |
Watts | 2,000 |
Plug | NEMA 5-20P |
This insulated combination heated holding and proofing cabinet is part of the Metro C5 3 Series that is a Full Height (71") unit with 2 Dutch clear polycarbonate doors and universal wire slides on 3" centers, adjustable on 1-1/2" increments. The Red Insulation Armour on this combination heated holding and proofing cabinet is a high density polyethylene (HDPE). There is a removable bottom mount control module on the combination heated holding and proofing cabinet.
A thermostatically controlled, forced convection system on the combination heated holding and proofing cabinet provides fast heat-up (80 - 200 degrees F) and quick recovery.
The universal wire slides on the insulated combination heated holding and proofing cabinet will hold up to 18 sheet pans (18" x 26") or 34 steam table pans (12" x 20" x 2-1/2"), 2/1 GN or 1/1 GN pans.
This insulated combination heated holding and proofing cabinet is a mobile unit constructed in aluminum that rolls smoothly on 5" swivel casters (2 with brakes) with neoprene wheels.
The Metro C539-CDC-U combination heated holding and proofing cabinet is an electric unit that runs on 120 Volts, 60 Hz, 1-phase and 16.7 amps for 2,000 Watts and uses a NEMA 5-20P plug.
Metro C539-CDC-U Features
- Combination heated holding and proofing
- Full Height (71") unit
- Red Insulation Armour insulation, high density polyethylene (HDPE)
- Aluminum construction
- Removable bottom mount control module
- Thermostatically controlled
- Moisture control
- 2 Dutch clear polycarbonate doors
- Universal wire slides on 3" centers, adjustable on 1-1/2" increments
- Capacity: 18 sheet pans (18" x 26") or 34 steam table pans (12" x 20" x 2-1/2"), 2/1 GN or 1/1 GN pans
- 5" swivel casters (2 with brakes) with neoprene wheels
- Electrical specifications: 120 Volts, 60 Hz, 1-phase and 16.7 amps for 2,000 Watts, NEMA 5-20P plug
Metro C539-CDC-U Benefits
- Convenient bottom mount control module is removable without using tools
- Provides fast heat-up (80 - 200 degrees F) and quick recovery
- Made in the USA
- UL listed in USA and Canada
- NSF certified
