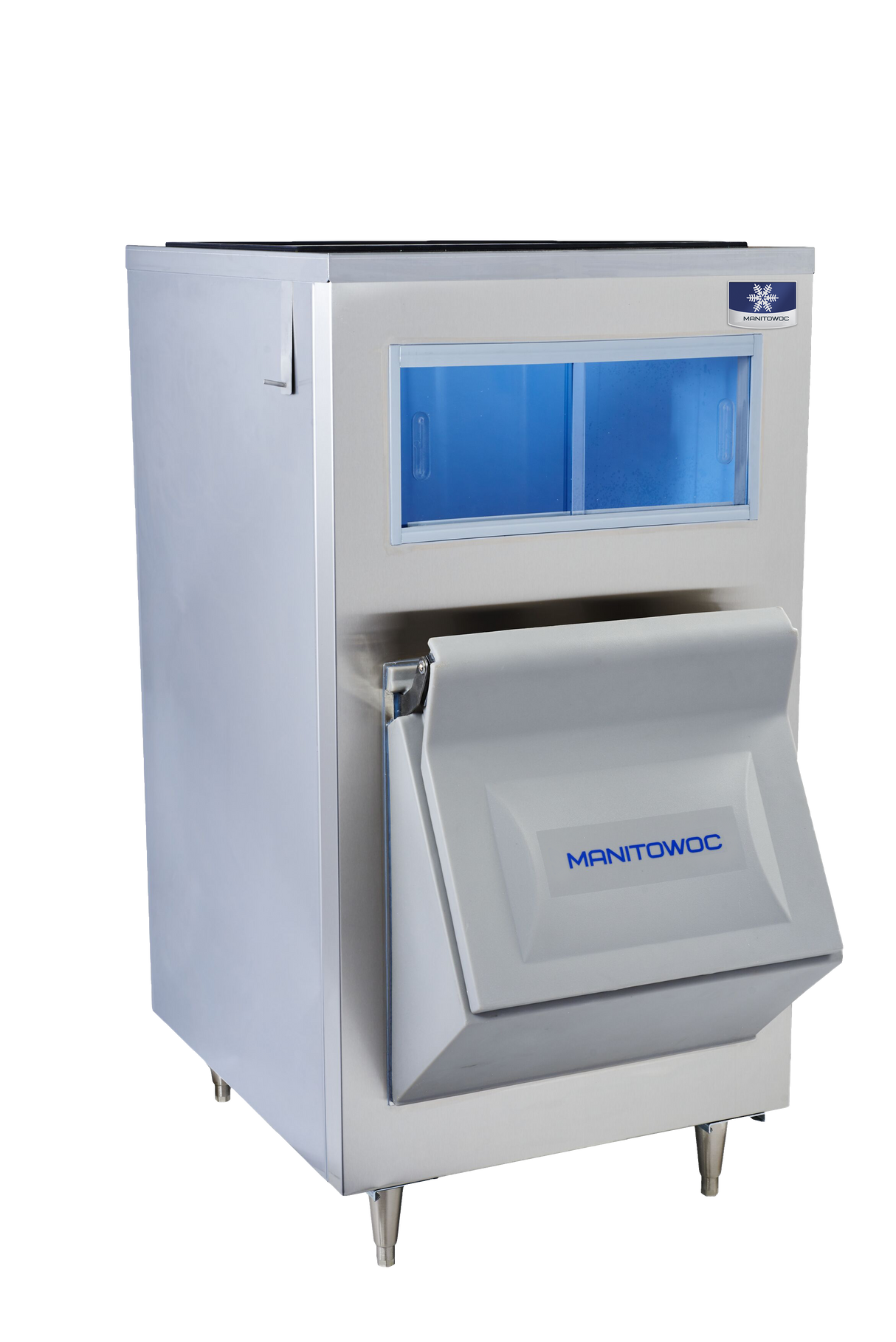

Manitowoc LB0730 LB-Style Upright 30" Wide 683 lb Capacity 23 Cubic ft Insulated Stainless Steel Ice Storage Bin With Single Lift-Up Spring-Loaded Door And NSF Ice Scoop
|Ship Weight||275 lb|
|Manufacturer Part #||LB0730|
|Type||Ice Storage Bin|
|Base Material||304 Stainless Steel|
|Ice Bin Storage Capacity||683 lb|
|AHRI Volume||23 Cubic ft|
|Ice Bin Style||LB-Style Upright|
|Baffle Material||Stainless Steel|
|Ice Bin Method||First Ice In / First Ice Out (FIFO)|
|Insulation||1 1/2" Thick Polyurethane|
|Door Type||Single Lift-Up Spring-Loaded Door|
|Ice Scoop Included||Yes|
|Leg Height||6" Adjustable To 7 1/8"|
|Leg Material||Stainless Steel|
NOTE: This ice storage bin DOES NOT produce ice. The interior of the storage bin is NOT refrigerated. This unit temporarily stores ice. An ice machine head is required but is NOT INCLUDED with this model.
The LB0730 is the 30" wide upright large capacity ice storage bin from Manitowoc that holds up to 683 lb of ice in 23 cubic ft of interior space and it uses a first ice in / first ice out method that ensures fresher tasting ice. This ice bin comes included with a bin adapter and filler panels for a 22" ice machine.
There is a sliding view Lexan window on this bin to easily check ice levels from the outside and it has a single lift-up spring-loaded door with a hinge that keeps the bin door open while accessing ice. There is a stainless steel baffle on this ice bin that helps prevent ice overflow.
This ice bin comes with an ergonomic NSF-certified sanitary ice scoop that features a thumb and knuckle guard with an external storage hook. The ice bin stands firmly on a set of 6" stainless steel legs that are expandable to 7 1/8" high.
The LB0730 large capacity ice storage bin front and side exterior is all welded 304 stainless steel and the interior has a roto-molded seamless rust-free polyethylene liner. The bin walls on this unit are foamed with 1 1/2" thick non-CFS polyurethane insulation.
This ice bin is NSF listed and for safety and the storage volume is certified by the AHRI (American Air Conditioning, Heating and Refrigeration Institute).
Manitowoc LB0730 Features
- 30" wide upright large capacity ice storage bin
- Ice Capacity: 683 lb
- AHRI Volume: 23 Cubic ft
- Single lift-up spring-loaded door
- Sliding view Lexan window
- First ice in / first ice out method
- Welded 304 stainless steel front and side exterior
- Roto-molded seamless rust-free polyethylene liner
- 1 1/2" thick non-CFS polyurethane insulation
- Ergonomic NSF-certified sanitary ice scoop included
- Stainless steel baffle
- 6" adjustable stainless steel legs (expandable to 7 1/8" high)
- NSF listed
- Bin adapter and filler panels for 22" ice machine included
Manitowoc LB0730 Benefits
- Spring-loaded hinge keeps door open while accessing ice
- Check ice levels from outside with sliding view Lexan window
- Ensures fresh ice with first ice in / first ice out method
- Stainless steel baffle helps prevent ice overflow
- Storage volume certified by AHRI
- Durable all-welded 304 stainless steel exterior
Ice Capacity: 683 lb
