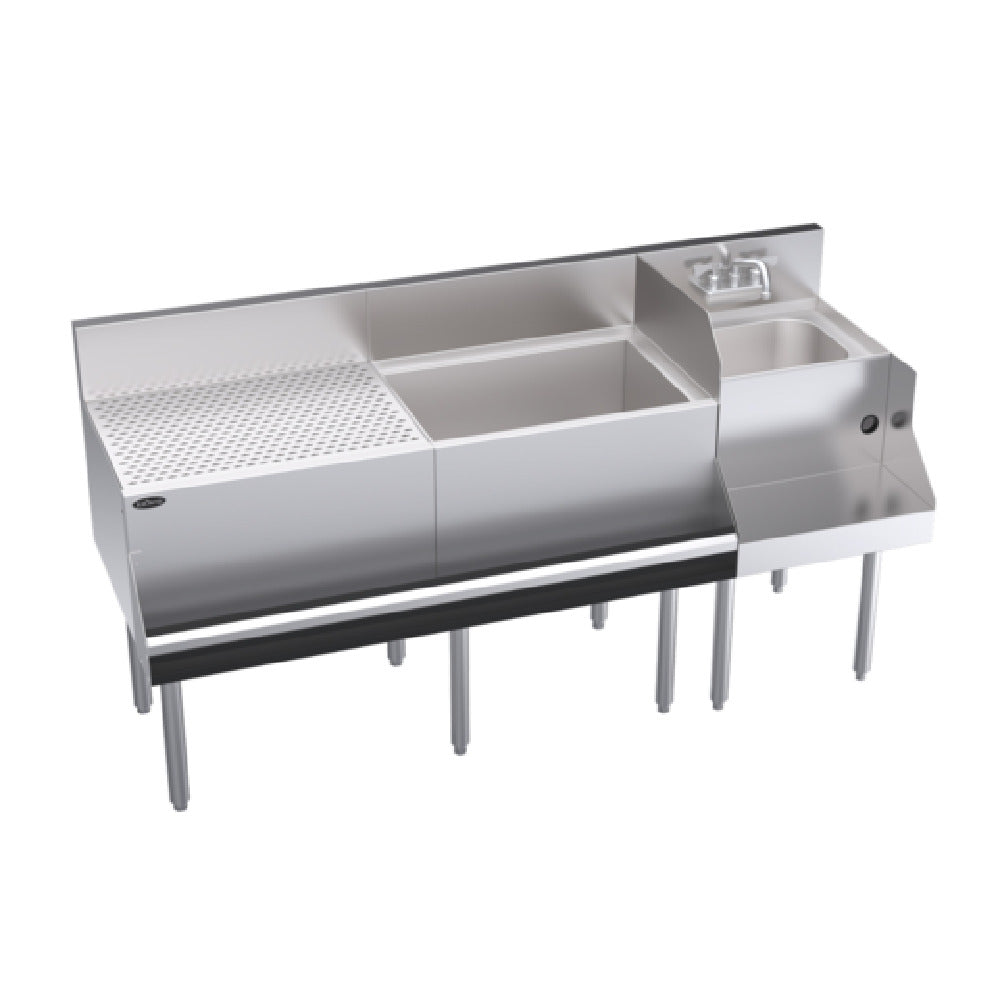

Krowne KR24-W66A-10 66"W x 24"D Underbar Workstation with Cold Plate and Drainboard

Item: #468311 MFG: #KR24-W66A-10

This is a 66" wide Krowne Royal Series Underbar Workstation that includes a cold plate, drainboard, and insulated ice bin. This underbar also includes a dump sink with Royal Series faucet.

There is a 24" wide ice bin on the center and a 24" wide drainboard on left side with a 1" drain on this insulated ice bin and drainboard station. Removable bottle wells are included with this insulated ice bin and drainboard station.

These model units have a built-in cast aluminum cold plate with 10 circuits that is sealed into the bottom of the insulated ice bin.

The top, front and sides of this fully insulated ice bin and drainboard station are made of stainless steel. The insulated ice bin and drainboard station stands firmly on tubular galvanized steel legs with adjustable grey plastic bullet feet.

Krowne KR24-W66A-10 Features

  • Material: Stainless steel
  • Color: Silver
  • Royal Series
  • Cold Plate: 10 Circuit
  • Includes 1/2” x 4” PVC tailpiece (1/2”- 20 male threaded)
  • Ice Bin Size: 24"
  • Ice Bin Location: Center
  • Ice Capacity: 74 lbs
  • Drainboard: 24" Standard
  • Blender dump sink 18" with Royal Series faucet
  • 12' deep ice bin

Krowne KR24-W66A-10 Benefits

  • Sound deadened single speed rail
  • Removable bottle wells


Overall Dimensions:

Width: 66"

Depth: 24" (front to back)

Height: 36-1/2"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Specification Specifications
Ship Weight 250 lbs.
Manufacturer Krowne
Model Number KR24-W66A-10
Manufacturer Part Number KR24-W66A-10
Oversized Shipping No
Color Silver
NSF Listed Yes
Country of Origin USA
Hazardous Material No
Dimensions(HxWxD) 36.5" x 66" x 24"
Insulated Yes
Cold Plate Cast Aluminum, 10 Circuits
Ice Bin Width 24"
Ice Storage Capacity 74 lbs
Drainboard Width 24"
Dump Sink Length 18"
Material Stainless Steel
View all Specifications
  • Specification Sheet:

    A PDF viewer is required to view this product's information.

    Spec Sheet
    Download Spec Sheet
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made In America
Made In America
This item was made in the United States of America.
Buy on credit
Standard Shipping
Standard Shipping
Add this item to the cart to calculate your shipping rate
Typically Ships within 4-8 Business Days
  • Sturdy stainless steel construction
  • Attractive silver color
  • Tubular stainless steel legs
  • Adjustable grey plastic bullet feet
  • 74 lb ice capacity
  • 10 circuit cold plate
  • Drainboard
  • Dump sink with faucet
  • Warranty Info
    1 Year Limited Warranty
