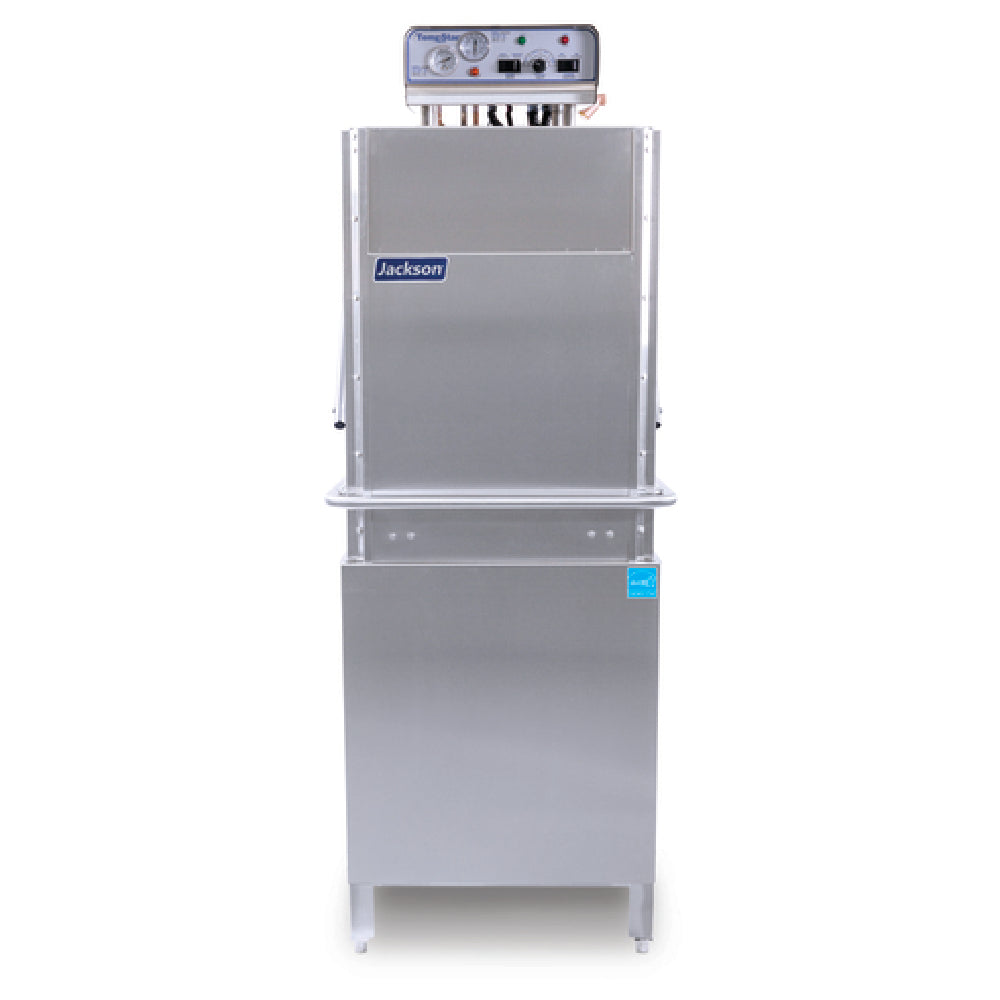

Jackson TEMPSTAR HH-E High Temp Door Type Dish Machine with Built-In Booster, 208/60/3

Item: #269589 MFG: #TEMPSTAR HH-E_208/60/3

The Tempstar® HH-E is a High Temperature Dishwasher from Jackson. There is a 70 °F Rise Booster built in. This product is constructed of durable stainless steel. When the machine is idle, the vent fan control shuts the fan off. The stainless steel pump is self draining. There is also a Delime/manual wash switch.

The upper and lower wash arms both provide optimum spray coverage, providing a superior clean. The dishwasher features a large scrap basket. Placement type is universal, so it can be used as a straight-thru or corner machine. The HH-E is certified to wash dishes, utensils, pots, and pan to NSF/ANSI3 standards. It's recommended that your ceiling height be at least 88" to use this product.

Jackson TEMPSTAR HH-E Features

  • Dishwasher, Door Type
  • Built-In 70° Rise Booster with Sani-Sure™ final rinse system
  • High Temp Electric Tank Heat
  • Approximately 55 Racks per hour
  • 0.72 Gallons of Water used per rack
  • High Hood
  • Auto Fill/Auto Start
  • Door Switch
  • Adjustable Bullet Feet
  • Front Dress Panel
  • Multi-Cycle Timer
  • Hi-Limit Thermostat
  • ENERGY STAR Qualified
  • ETL Sanitation

Jackson TEMPSTAR HH-E Benefits

  • Top mounted controls provide easy operation
  • Self-draining pump
  • The Split Door will accommodate installations in area with lower ceilings

Overall Dimensions:
Height: 64-3/8"
Width: 32"
Depth: 25-1/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Specification Specifications
Ship Weight 393 LB
Manufacturer Jackson
Model Number TEMPSTAR HH-E
Manufacturer Part # TEMPSTAR HH-E
Hazardous Materials No
Oversized Shipping No
Country of Origin United States
Booster Heater Included Yes
Dimension(HxWxD) 76.38" x 28.63" x 34.38"
Height w/Open Door 86.25"
Width Between Tables 25.25"
Drain Height 11.75"
Minimum Wash Temperature 155°F
Minimum Rinse Temperature 180°F
Inlet Temperature 110°F
Interior Clearance 27"
Racks Per Hour 55
Water Used 0.72 Gal / Rack
Flow Pressure 10 PSI
ENERGY STAR Qualified Yes
Electric 208v/60/3ph
Total Load 51.8 Amps
View all Specifications
  • Specification Sheet:

    A PDF viewer is required to view this product's information.

    Spec Sheet
    Download Spec Sheet
ETL Sanitation
ETL Sanitation
This item meets all sanitation standards imposed by the ETL, a division of the Intertek Group.
Energy Star Qualified
Energy Star Qualified
This item is Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
