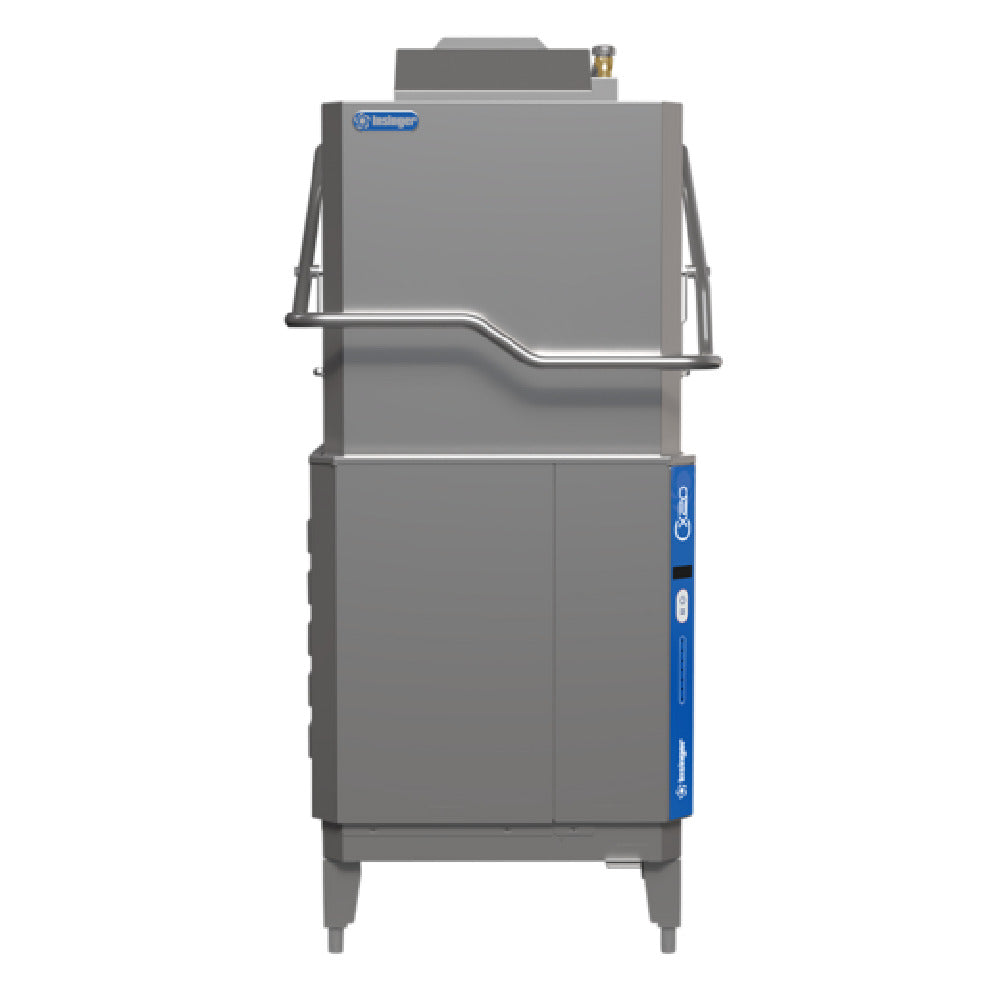

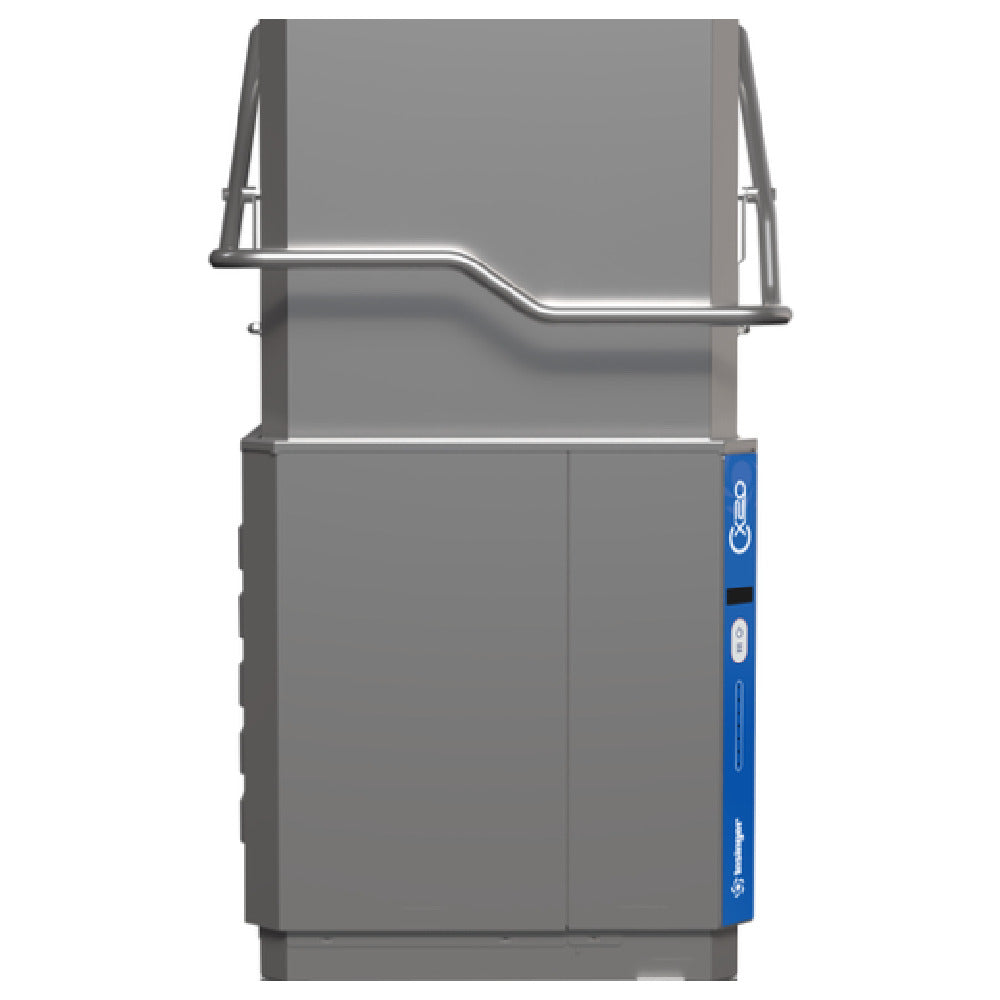

Insinger CX20VG Premier Series VaporGuard Ventless 60-Rack Per Hour High-Temperature Single Tank Door-Type Straight-Thru Dishwasher Without Booster, 208 Volts, 3-phase
The dishwasher has a single 17.5-gallon tank, oversized strainers that collect more waste compared to traditional strainers, and a vertically mounted pump motor that provides consistent wash pressure. This door-type dishwasher is proudly made in the USA and it is listed with both NSF and ETL listed for safety.
The CX20VG door-type dishwasher is an electric unit that runs at 208 Volts, 60 Hertz, 3-phase, and 30.0 total load amps in a single point connection for the 1 1/2 HP motor and there are 1 3/8" holes available for hardwiring. The dishwasher has a 1/2" NPT water inlet connection and a 1 1/2" NPT drain.
The VaporGuard 2.0 condensate removal system uses 4 gallons of cold water per minute (2 gallons per cycle), does not require Drain Water Tempering (DWT), and this model has no ceiling clearance issues.
The stainless steel construction includes the frame, legs, and feet, and the hood and tank are made with Type 304, 16 gauge stainless steel. This dishwasher uses a centrifugal-type "packless" pump with a brass petcock drain.
There is a RackAware automatic rack sensing system on this dishwasher that eliminates wasted cycles and will only run when a rack is in the machine.
The CX20VG is the fully automatic Premier Series VaporGuard Ventless high-temperature door-type dishwasher from Insinger that cleans up to (60) 20" x 20" racks, or approximately 1,080 dishes per hour at 0.65 gallons per rack with a Quad-Arm wash system and it does not include a booster heater. The unit has a straight-thru design but it can be field converted for corners.
The comfortable Ergo-Grip door handle on this dishwasher offers options for hand placement and there is a foot pedal operated drain on this dishwasher that eliminates back strain.
Insinger CX20VG Features
- Premier Series Ventless door-type dishwasher
- Fully automatic
- High-temperature
- VaporGuard 2.0 condensate removal system
- No booster heater
- Racks Per Hour: (60) 20" x 20" racks (approximately 1,080 dishes per hour)
- Ergo-Grip door handle
- RackAware automatic rack sensing system
- 0.65 gallons per rack
- Quad-Arm wash system
- Straight-thru design (field convertible to corner)
- Material: Stainless Steel
- Foot pedal operated drain
- Tank Capacity: 17.5 gallons
- Centrifugal type "packless" pump
- Brass petcock drain
- Vertically mounted pump motor
- Oversized strainers
- 1/2" NPT water inlet connection
- 1 1/2" NPT drain
- Type 304, 16 gauge stainless steel hood and tank
- Electrical specifications: 208 Volts, 60 Hertz, 3-phase, 30.0 total load amps, 1 1/2 HP motor
- Hardwiring required
- NSF and ETL listed for safety
Insinger CX20VG Benefits
- Durable and sturdy stainless steel construction
- VaporGuard model does not require Drain Water Tempering (DWT) and has no ceiling clearance issues
- Consistent wash pressure provided by the vertically mounted pump motor
- Collects more waste in oversized strainers compared to traditional units
- Comfortable Ergo-Grip door handle offers options for hand placement
- Foot pedal operated drain eliminates back strain
- Eliminates wasted cycles with RackAware automatic rack sensing system
- Proudly made in the USA
Overall Dimensions:
Height: 66 1/4" (76 1/8" With Door Open)
Width: 29"
Width: 33 3/4"
