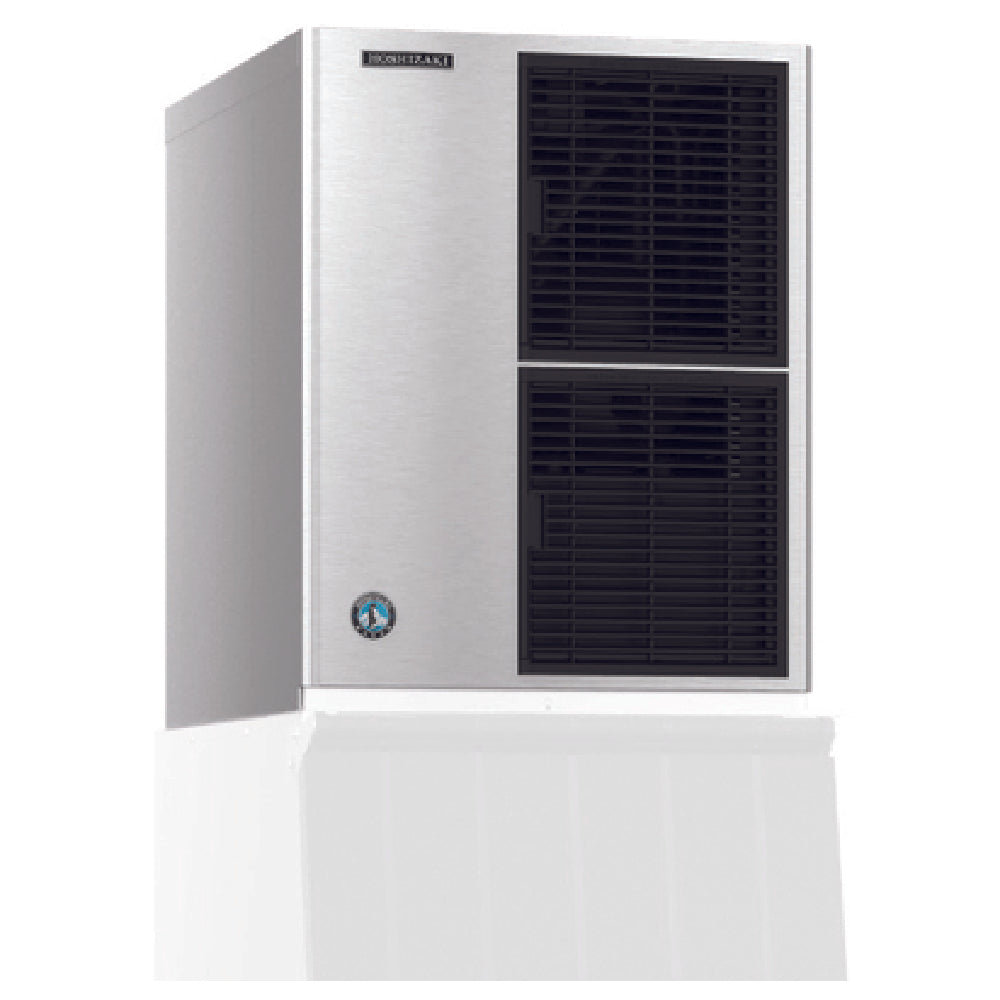

Hoshizaki KM-520MRJ KM Edge Slim-Line ENERGY STAR Certified 22" Wide Remote-Cooled KM Edge Crescent Style Cube 547 lb Per Day Stainless Steel Modular Ice Machine, 115V

Item
#409541
MFG
#KM-520MRJ
Specification Specifications
Ship Weight 142 lb
Manufacturer Hoshizaki
Model Number KM-520MRJ
Manufacturer Part # KM-520MRJ
Hazardous Material No
Oversized Shipping No
Type Modular Ice Machines
Height 28 Inches
Width 22 Inches
Depth 27 3/8 Inches
Base Material Stainless Steel
Color Silver
Ice Type KM Edge Crescent Style Cube
Ice Production 547 lb Per Day
Condenser Type Remote-Cooled
Refrigerant R-404a
Energy Consumption 4.80 kWh per 100 lb
Water Usage 13.6 Gallons per 100 lb
BTU Per Hour 6,200
Ice Making Surface Material Stainless Steel
Alert System EverCheck
Antimicrobial Agent H-GUARD Plus
ENERGY STAR Certified Yes
NSF Listed Yes
UL Listed Yes
AHRI Certified Yes
Power Electric
Voltage 115
Hertz 60
Phase 1
Amps 12.05
Hardwired Yes
Compatible Bins / Dispensers B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
View all Specifications
Description

This modular ice machine is designed to work with ice bins or dispensers that are available separately (Hoshizaki models B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B) and the unit comes with a factory-installed ultrasonic bin control that can be adjusted on site.

This modular ice machine features the EverCheck alert system and it is protected by H-GUARD Plus Antimicrobial agent to protect against bacteria.

The KM-520MRJ is the ENERGY STAR certified 22" wide KM Edge Slim-Line ice machine from Hoshizaki that makes up to 547 lb per day of KM Edge Crescent style cube ice with a remote condenser unit (Hoshizaki URC-5F) that is available separately.

This ice machine makes the Hoshizaki signature KM Edge Crescent style cube ice that are Crescent-shaped, solid, clear cubes. The Hoshizaki KM Edge Crescent style cube is approximately 1 1/2" high x 1 1/8" wide x 1/2" deep, perfect for everything from fountain beverages to blended drinks.

This modular ice machine is ENERGY STAR certified, AHRI certified, and both NSF and UL listed for safety. This unit uses power at 4.80 kWh per 100 lb and water at 13.6 Gallons per 100 lb, and it operates at 6,200 BTU per hour.

The KM-520MRJ modular ice machine is an electric unit that operates at 115 Volts, 60 Hz, 1-phase and 12.05 Amps and hardwiring is required. All electrical connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines. This modular ice machine features a self-contained condenser and it operates with R-404a refrigerant.

There is a stainless steel exterior on this modular ice machine and it features a stainless steel ice making surface that makes it durable and easy to clean.

Hoshizaki KM-520MRJ Features

  • 22" wide modular ice machine
  • Exterior Material: Stainless Steel
  • Ice Type: KM Edge Crescent style cube (1 1/2" high x 1 1/8" wide x 1/2" deep)
  • Ice Production: 547 lb of ice per day
  • Stainless steel ice making surface
  • Condenser Type: Remote-Cooled (Hoshizaki URC-5F available separately)
  • Self-contained condenser
  • Refrigerant: R-404a
  • Energy Consumption: 4.80 kWh per 100 lb
  • Water Usage: 13.6 Gallons per 100 lb
  • BTU Per Hour: 6,200
  • EverCheck alert system
  • H-GUARD Plus Antimicrobial agent
  • Compatible Bin and Dispenser models: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
  • Factory-installed ultrasonic bin control
  • Electrical specifications: 115 Volts, 60 Hz, 1-phase and 12.05 Amps, hardwiring required
  • AHRI certified
  • ENERGY STAR certified
  • UL listed
  • NSF listed

Hoshizaki KM-520MRJ Benefits

  • Ice making surface is all stainless steel that makes it durable and easy to clean
  • Produces the Hoshizaki signature Crescent cube that is perfect for everything from fountain beverages to blended drinks
  • Durable stainless steel construction

Overall Dimensions:
Height: 28"
Width: 22"
Depth: 27 3/8"

Ice Production: 547 lb/24 hours

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Hardwired
Hardwired
This product must be hardwired; it does not plug into a standard wall outlet.
ARI / AHRI
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Proposition 65
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Free Shipping
Add this item to the cart to calculate your shipping rate
$3,640.00
Each
Shipping
Lead time varies; contact our team with your ZIP code for more info.
  • Ice Type: KM Edge Crescent style cube (1 1/2" high x 1 1/8" wide x 1/2" deep)
  • Ice Production: 547 lb of ice per day
  • Durable stainless steel construction
  • Stainless steel ice making surface
  • Condenser Type: Remote-Cooled
  • Refrigerant: R-404a
  • EverCheck alert system
  • H-GUARD Plus Antimicrobial agent
  • 115 Volts, 12.05 Amps, hardwiring required
  • 22" wide modular ice machine
  • AHRI certified
  • UL & NSF listed
  • Warranty Info
  • 3 Years Parts and Labor On Entire Machine
  • 5 Years Parts and Labor On Evaporator
