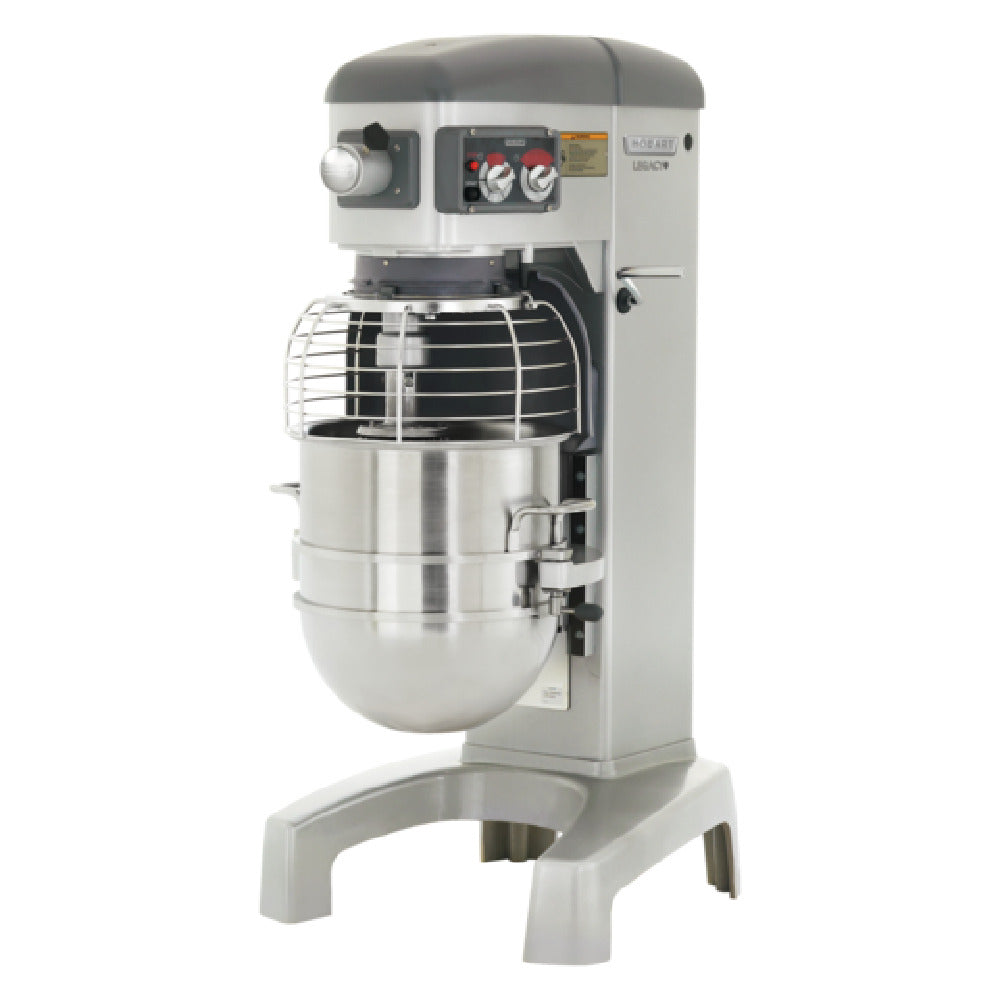

Hobart HL400-4STD Legacy 40-Quart 3-Speed 1 1/2 HP All-Purpose Commercial Planetary Mixer With Bowl, Beater, Whip And Spiral Dough Arm, 200-240 Volts, 1-phase
| Ship Weight | 453 lb |
| Manufacturer | Hobart |
| Model Number | HL400-4STD |
| Manufacturer Part # | HL400-4STD |
| Type | Planetary Mixers |
| Height | 49 7/8 Inches |
| Width | 26 3/8 Inches |
| Depth | 30 1/4 Inches |
| Color | Gray |
| Finish | Metallic Gray Hybrid Powder-Coated |
| Capacity | 40-Quart |
| Orientation | Floor |
| Timer | 20-minute SmartTimer With Automatic Time Recall |
| Speeds | 3 (Low/Intermediate/High) Plus Stir (Slow) |
| Transmission Type | Gear-Driven |
| Bowl Lift Type | Manual |
| NSF Listed | Yes |
| UL Listed | Yes |
| Hazardous Material | No |
| Oversized Shipping | No |
| Speed Range | 34 - 319 RPM |
| Features | Variable Frequency Drive (VFD), Agitation Technology |
| Attachments Included | Stainless Steel Bowl, "B" Beater, "D" Wire Whip, "ED" Dough Hook |
| Power | Electric |
| Voltage | 200-240 |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 9.3 |
| Horsepower | 1 1/2 HP |
| Hardwired | Yes |
This planetary mixer has a metallic gray hybrid powder coat finish and it is both UL listed and NSF listed.
There is a Variable Frequency Drive (VFD) on this planetary mixer that uses an all-gear, direct-drive system to deliver precise mixing consistency while protecting and ensuring a long life for the motor.
The patented soft-start Agitation Technology on this planetary mixer gives a soft transition as mixing speeds increase to reduce splashing. There are 3 mixing speeds (Low, Intermediate, and High) including a stir speed (Slow) on this mixer.
The HL400-4STD is the Legacy 40-quart all-purpose commercial planetary mixer from Hobart with a stainless steel bowl, "B" beater, "D" wire whip, and "ED" dough hook. The mixer features 3-speeds plus a stir speed using a heavy-duty, high-torque 1 1/2 HP motor and a gear-driven transmission.
The planetary mixer includes a 20-minute SmartTimer that includes Automatic Time Recall that remembers the last time setting for each speed, a #12 taper hub, manual bowl lift, and a stainless steel bowl guard.
This Legacy unit features Shift-on-the-Fly controls that allow you to pulse and jog the mixer without needing to stop to change speeds.
The Legacy HL400-4STD planetary mixer is an electric unit that runs at 200-240 Volts, 50/60 Hertz, 1-phase, and 9.3 Amps for the 1 1/2 HP motor and it requires hardwiring. Hobart recommends that all electrical connections be made by qualified personnel who will follow all of the proper safety codes and guidelines.
Hobart HL400-4STD Features
- Shift-on-the-Fly controls
- 20-minute SmartTimer with Automatic Time Recall
- #12 taper hub
- Stainless steel bowl
- "B" beater
- "D" wire whip
- "ED" dough hook
- 3 mixing speeds (Low, Intermediate, and High) plus stir speed (Slow)
- Manual bowl lift
- Finish: Metallic gray hybrid powder coat finish
- Color: Gray
- Variable Frequency Drive (VFD) with all-gear, direct-drive system
- Gear-driven transmission
- Heavy-duty planetary mixer
- Capacity: 40-quart
- Stainless steel bowl guard
- Electrical specifications: 200-240 Volts, 50/60 Hertz, 1-phase and 9.3 Amps for 1 1/2 HP
- Hardwiring required
Hobart HL400-4STD Benefits
- Precise mixing consistency with Variable Frequency Drive (VFD) that also protects the motor
- Agitation Technology gives soft transition as mixing speeds increase to reduce splashing
- Pulse and jog without stopping to change speeds with Shift-on-the-Fly controls
- Heavy-duty, high-torque 1 1/2 HP motor
- Automatic Time Recall on SmartTimer remembers the last time setting for each speed
- UL listed
- NSF listed
Overall Dimensions:
Height: 49 7/8"
Width: 26 3/8"
Depth: 30 1/4"
Capacity: 40-quart
