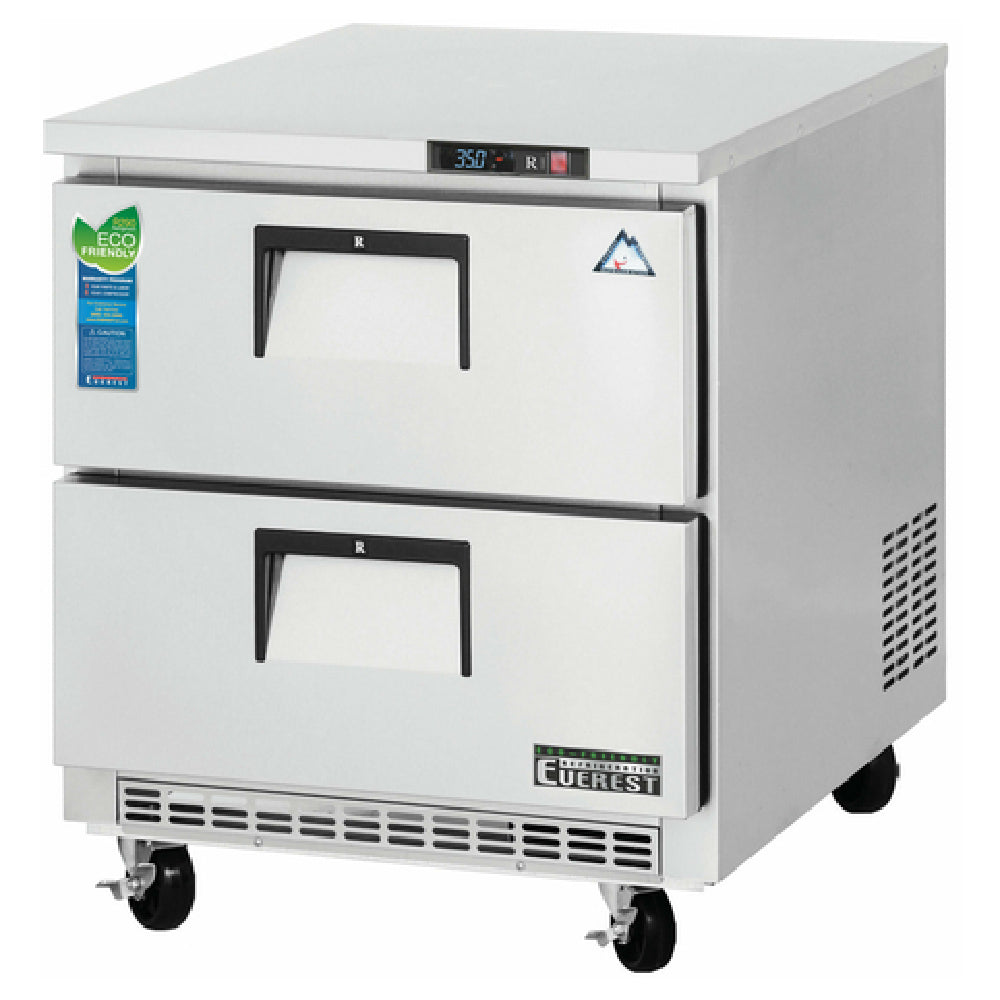

Everest Refrigeration ETBR1-D2 27.75 Inch One Section Two Drawer Back Mount Undercounter Refrigerator 7.5 Cubic Feet
| Ship Weight | 200 lbs |
| Manufacturer | Everest Refrigeration |
| Model Number | ETBR1-D2 |
| Manufacturer Part # | ETBR1-D2 |
| Oversized Shipping | No |
| Hazardous Material | No |
| Top/Sides/Interior Material | Stainless Steel |
| Bottom/Rear Material | Galvanized Steel |
| Color | Silver |
| Dimensions (HxWxD) | 30.25" x 27.75" x 31.5" |
| Capacity | 7.5 Cu. Ft. |
| Compressor Location | Back Mounted |
| Number of Sections | 1 |
| Number of Drawers | 2 |
| Horsepower | 1/5 |
| Amps | 2.5 |
| Electrical | 115v/60/1ph |
| Temperature Range | 33° - 54°F |
| Factory Preset Temp | 35°F |
| Insulation Thickness | 2.5" |
| Refrigerant | R290 Hydrocarbon |
| NSF Listed | Yes |
| ETL Sanitation | Yes |
| Plug | NEMA 5-15P |
The Everest Refrigeration ETBR1-D2 is a Drawered Undercounter Refrigerator with a Back Mounted Condensing Unit. The worktop on this refrigerator is constructed of 16 gauge stainless steel, while the interior and sides are also made of stainless steel. The rear and bottom are constructed of galvanized steel. The Blizzard R290 condensing unit is replaceable, doesn't require on-site brazing and features reverse fan motors which support condenser coil cleaning. The ETBR1-D2 utilizes environmentally friendly refrigerant R290.
The defrost cycle is both time-initiated and temperature terminated, and uses a defrost heater. This product's evaporator coils are corrosion resistant. The condensate drain is self-maintaining, and will not require any external drains. In addition, the drain is energy efficient, it won't need any electric heaters either. Pressure relief devices allow for easy access to the interior after opening the door. The factory preset temperature is 35°F. Temperatures can range from 33°F to 54°F.
The door gasket is snap-in and magnetic. The high strength door handles are recessed. There are four 5" swivel casters, with locks on the front set. The self-closing adjustable torsion system offers a positive seal. At the same time, the cabinet and door are insulated with high-density polyurethane. The included NEMA 5-15P is pre-wired and ready to plug.
Blizzard R290 All-In-One Slide Out Cooling Cartridge was engineered with safety, speed, and convenience at its core. An industry first, the Blizzard R290 is a patented, fully detachable self-contained refrigeration cartridge. Speedy and convenient braze-less repairs eliminate the risk of R290 ignition.
Blizzard R290 All-In-One Slide Out Cooling Cartridge was engineered with safety, speed, and convenience at its core. An industry first, the Blizzard R290 is a patented, fully detachable self-contained refrigeration cartridge. Speedy and convenient braze-less repairs eliminate the risk of R290 ignition.
Everest Refrigeration ETBR1-D2 Features
- (2) Drawers w/Thick Gauge Frames
- Rear Mounted Condensing Unit
- Refrigerant: R290
- Capacity: 7.5 Cubic Feet
- Blizzard All-In-One Slide Out Cooling Cartridge
- Top, Sides, and Interior Material: Stainless Steel (16 Gauge Worktop)
- Bottom and Rear Material: Galvanized Steel
- Pressure Relief Port
- Multi-Function Digital Controller
- 2-1/2" Polyurethane Insulated Cabinet
- (4) 5" Swivel Casters with Locks on front set
- High Performance Condenser Fans
- Rounded Corners
- Front Air Breathing
- Full-Length Air Duct System
- Overheat Protection Alarm
- Temperature Range: 33°F to 54°F
- NEMA 5-15P
- NSF Listed
- ETL Listed
- Electric: 115v/60/1ph
Everest Refrigeration ETBR1-D2 Benefits
- Plug is pre-wired and ready for use
- Slide out cooling cartridge is quick, safe, and eliminates the risk of coolant ignition
- Digital controller features an easy to read LED display
- Front-air breathing allows for flexible installation
- Rounded corners reduce hazards
Overall Dimensions:
Height: 30-1/4"
Width: 27-3/4"
Depth: 31-1/2"
