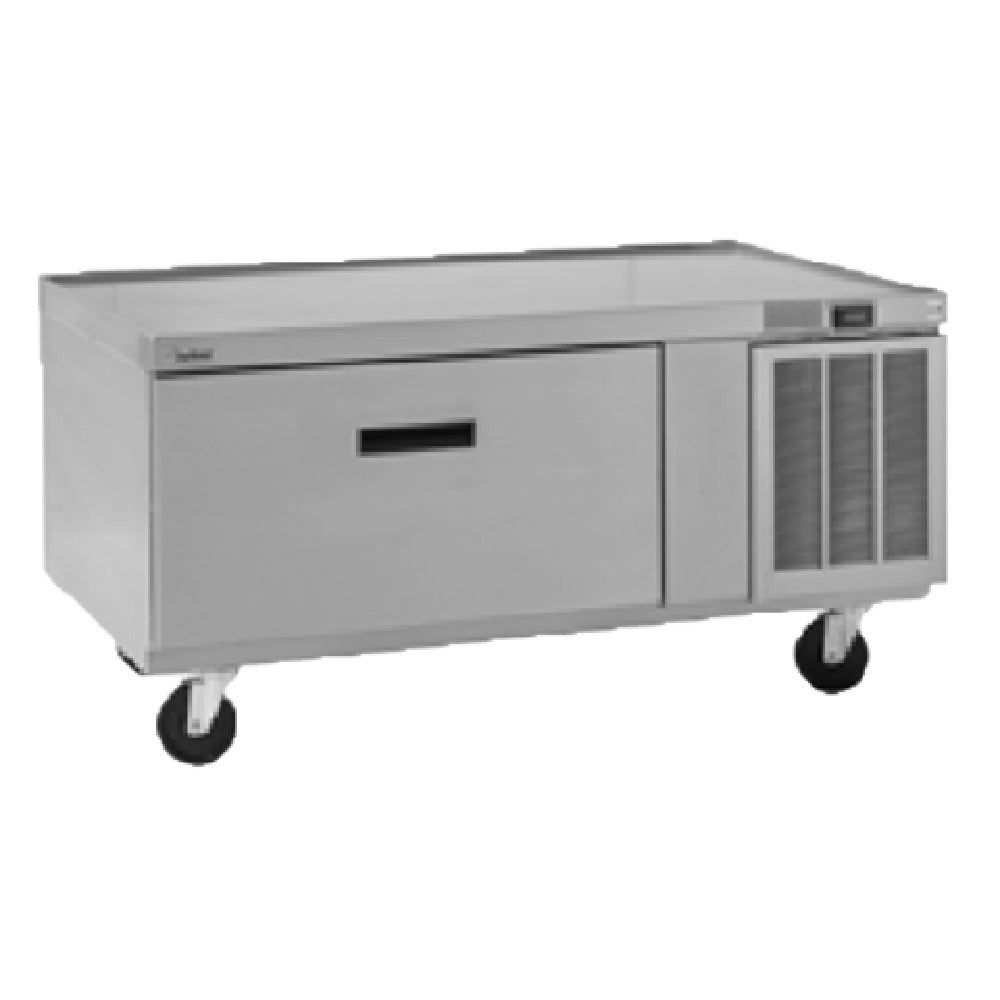

Delfield F2660CP 60” Wide Low-Profile Freezer Equipment Stand With Single Drawer - 115V, 1/3 HP
| Ship Weight | 418 LB |
| Manufacturer | Delfield |
| Model Number | F2660CP |
| Manufacturer Part # | F2660CP |
| Oversized Shipping | No |
| Hazardous Material | No |
| NSF Listed | Yes |
| UL Listed | Yes |
| Overall Dimensions (HxWxD) | 24” x 60-1/4” x 31” |
| Setting Equipment Height | 23-1/2” |
| Freezer Drawer Width | 32” |
| Number of Drawers | 1 |
| Pan Capacity Size | (2) 12” x 20” |
| Base Type | Self-Contained |
| Refrigerant Type | R290 |
| Chef Base Type | Freezer |
| Insulation | Polyurethane |
| Material | Stainless Steel |
| Interior Cabinet Temperature | 0 to -5 degrees F |
| Ambient Room Temperature | 100 degrees F |
| Horsepower | (2) 1/3HP |
| Power | Electric |
| Voltage | 115V |
| Hertz | 60Hz |
| Phase | 1-ph |
| Amps | 7.6A |
| Number of Casters | 4 |
| Caster Size | 4” |
| Power Cord Length | 8-ft |
| Plug Type | NEMA 5-15P |
The F2660CP is a low-profile freezer base equipment stand that offers stability and uses an environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), and Non GWP (Global Warming Potential) polyurethane insulation to thoroughly keep products fresh. Featuring a marine edge top and full extension plus drawer system, it operates independently and provides a secure space for various sized pans sold separately. The interior cabinet is cooled with mullion style blower coils that allow precise air and temperature control. In addition, this unit utilizes an R290 refrigerant which assists in energy efficiency and cost effective operation.
The Delfield F2660CP 60” Wide Low-Profile Freezer Equipment Stand With Single Drawer -115V, 1/3 HP is NSF listed, and UL listed in the United States and Canada.
Delfield F2660CP Features
- Electrical Specifications: 115V, 60Hz, 1-ph, 7.6A
- Freezer Equipment Stand
- Low-Profile
- Self-contained
- (2) 1/3 HP motors
- 32” freezer drawer
- R290 refrigerant
- (2) 12” x 20” pan capacity
- Full extension plus drawer system
- Polyurethane foam insulation
- Mullion style coated blower coils between each door/drawer
- Digital thermometer
- Temperature range 0 to -5 degrees F
- 100 degree F ambient room temp
- Defrost timer
- Pre-wired condensing unit
- Wall-mounted bracket
- Full perimeter marine edge top
- Snap-in drawer gaskets
- Stainless steel construction
- 4” casters
- 8-ft power cord
- NEMA 5-15P plug
- NSF listed
- UL listed
Delfield F2660CP Benefits
- Environmentally friendly refrigerant is energy efficient and cost effective
- Heavy-duty top includes marine edge to contain potential spills
- Snap-in drawer gaskets allow for easy removal
- Wall-mounted bracket prevents tipping
- Stainless steel construction provides longterm durability
Overall Dimensions:
Height: 24”
Width: 60-1/4”
Depth: 31”
