Champion PP-10 10 Racks Per Hour Front Load Rack Type Pot, Pan & Utensil Washer

Item
#353234
MFG
#PP-10
Specification Specifications
Ship Weight 800 LB
Manufacturer Champion
Model Number PP-10
Manufacturer Part # PP-10
Amps 46
Booster Heater Included Yes
Booster Tank Capacity 6 gal
Dishwasher Type Pot & Pan Washer
Horsepower 5
Incoming Water Temperature 120°F
Interior Clearance 28.5"
Rack Included Yes
Racks per Hour 10
Rinse Temperature High-Temp
Wash Tank Capacity 21 gal
Wash Tank Usage 6 kW
Water Used 2.8 gal/rack
View all Specifications
Description

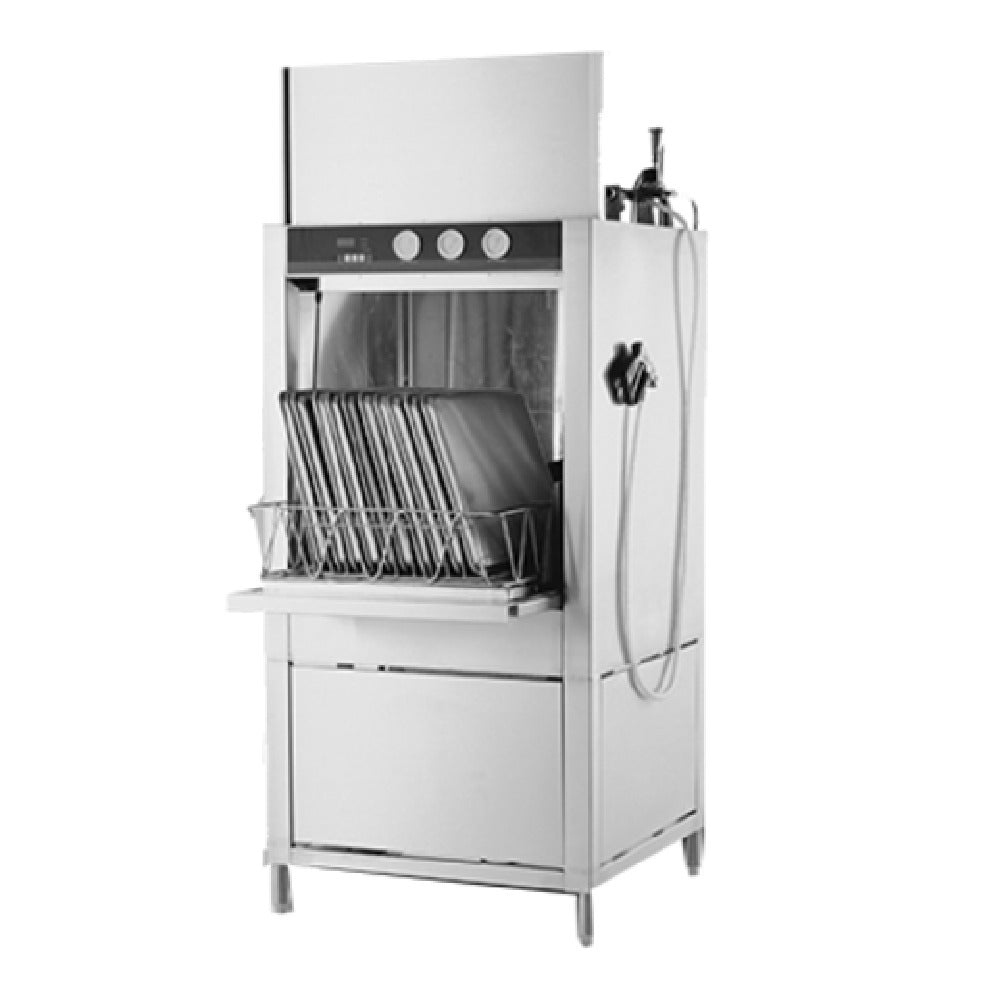

The PP-10 is a compact (30" wide) heavy-duty stainless steel pot, pan and utensil washer from Champion that will hold up to 10 pans.

The automatic pot, pan and utensil washer uses powerful stainless steel V jets and self-contained water heating is provided by a 6 kW built-in electric booster heater.

The front load design on this stainless steel pot, pan and utensil washer features a space-saving lift door that is counter-balanced with self-lubricating guides to open and close easily. The pot, pan and utensil washer has separate wash and rinse tanks and it includes an external pre-rinse and wash down hose.

Simple push button operation on the pot, pan and utensil washer include "Power On," "Stop" and "Short," "Medium," or "Long" wash cycle buttons and a digital display shows the "Time Remaining" for each cycle. There are moisture resistant gauges on the pot, pan and utensil washer that display the wash temperature, wash pressure and rinse temperature.

The Champion PP-10 heavy-duty pot, pan and utensil washer is an electric unit and runs on 120 Volts/1-phase and 5 running Amps along with the electric powered booster that operates at either 208 Volt/3-phase and 48 Amps, 240 Volt/1-phase and 72 Amps, 240 Volt/3-phase and 42 Amps or 480 Volt/3-phase and 21 Amps.

Champion PP-10 Features

  • Heavy-duty stainless steel construction
  • Front load design
  • Counter-balanced lift door
  • Capacity: 10 pans
  • Stainless steel V jets
  • Simple digital controls and display
  • Self-contained water heating
  • 6 kW built-in electric booster heater
  • Separate wash and rinse tanks
  • 5 HP wash pump motor
  • External pre-rinse and wash down hose
  • Moisture resistant gauges display wash temperature, wash pressure and rinse temperature
  • Electrical specifications: 120 Volts/1-phase and 5 running Amps along with the electric powered booster that operates at either 208 Volt/3-phase and 48 Amps, 240 Volt/1-phase and 72 Amps, 240 Volt/3-phase and 42 Amps or 480 Volt/3-phase and 21 Amps

Champion PP-10 Benefits

  • Designed for all commonly used pots, pans and utensils
  • Lift door is counter-balanced with self-lubricating guides to open and close easily
  • Compact design conserves space (30" wide)
  • Easy to use with simple push button digital controls
  • UL listed
  • UL Sanitation Classified
  • NSF certified
  • Champion Industries is a U.S. Green Building Council member

Overall Dimensions:
Height: 86.5”
Width: 31.5”
Depth: 34”
