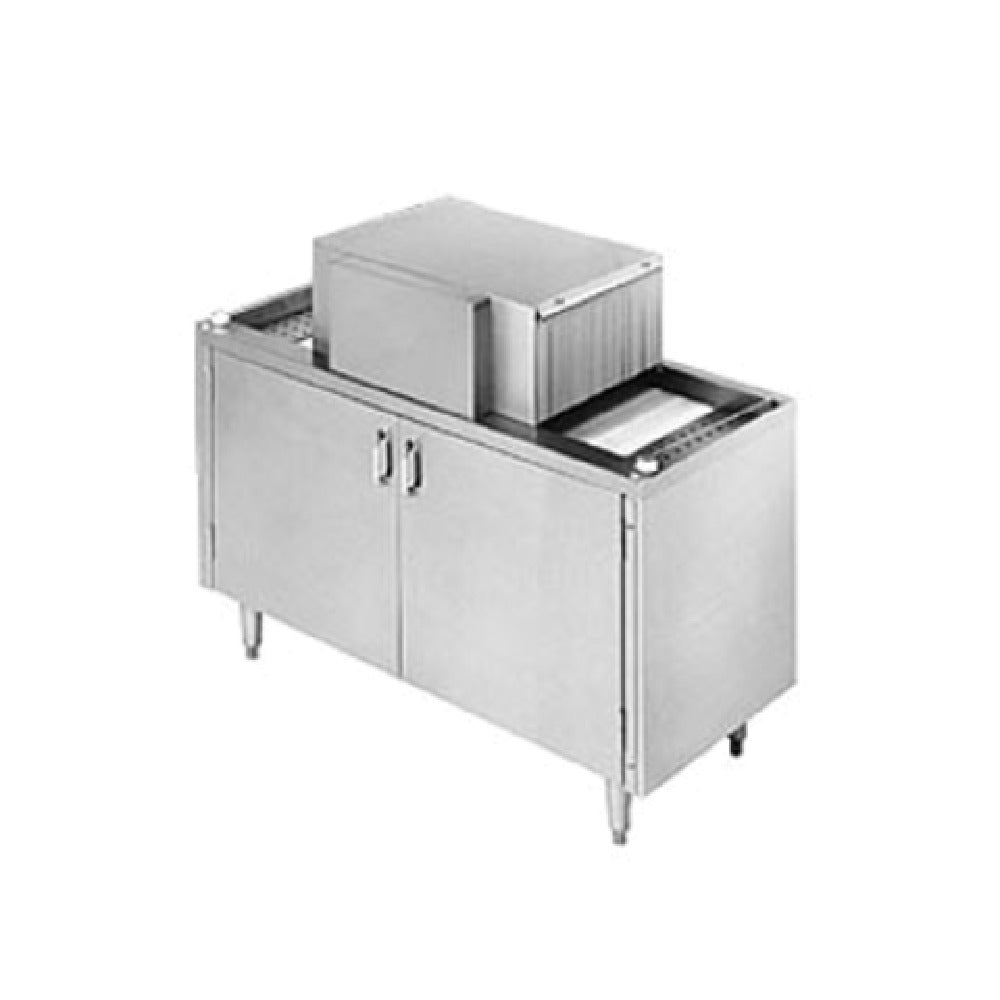

Champion CG4 48" 2000 Glasses Per Hour Low Temp Pass Through Chemical Sanitizing Glasswasher
The Champion CG4 Pass-Through Glasswasher can wash up to 2,000 2-1/2" glasses every hour, handling even the heaviest volume of glass and stemware that any bar or restaurant can send its way. The Champion CG4 glasswasher includes a three-pump chemical dispensing system for precise dispensing of detergent, sanitizer, and rinse aid chemicals. The Glasswasher is only 38 1/2" tall and so it will take up very little wall space. Operation of the glasswasher can be either left-to-right or right-to-left, to fit your specific environment's workflow. For installation, the CG4 Glasswasher will require an external drain, a Hot Water connection (minimum 145 degrees F), a Cold Water connection (for final rinse), and a 208-230 volt electrical outlet. Champion has designed this model with a plug-in cord (included).
Champion CG4 Features
Overall Dimensions:
Height: 38 1/2”
Width: 48"
Depth: 22”
Ship Weight | 255 LB |
Manufacturer | Champion |
Model Number | CG4 |
Manufacturer Part # | CG4 |
2-1/2" Glasses Per Hour | 2,000 |
Dimension(HxWxD) | 38-1/2" x 48" x 22" |
Dishwasher Type | Pass-Through Glasswasher |
Conveyor Speed | 1.17 Ft/Min |
Horsepower | 1/8 |
Hz. | 60 |
Amps | 15 |
Incoming Water Temperature | 145 degrees F |
Interior Clearance | 10.25" |
Phase | 1 |
Rinse Water Temperature | Low-Temp |
Voltage | 208-230 Volt |
Wash Tank Capacity | 3 Gal. |
Wash Tank Usage | 3 kW |
Water Used | 10 Gal/Hr |
- Specification Sheet:
A PDF viewer is required to view this product's information.
Download Spec Sheet
