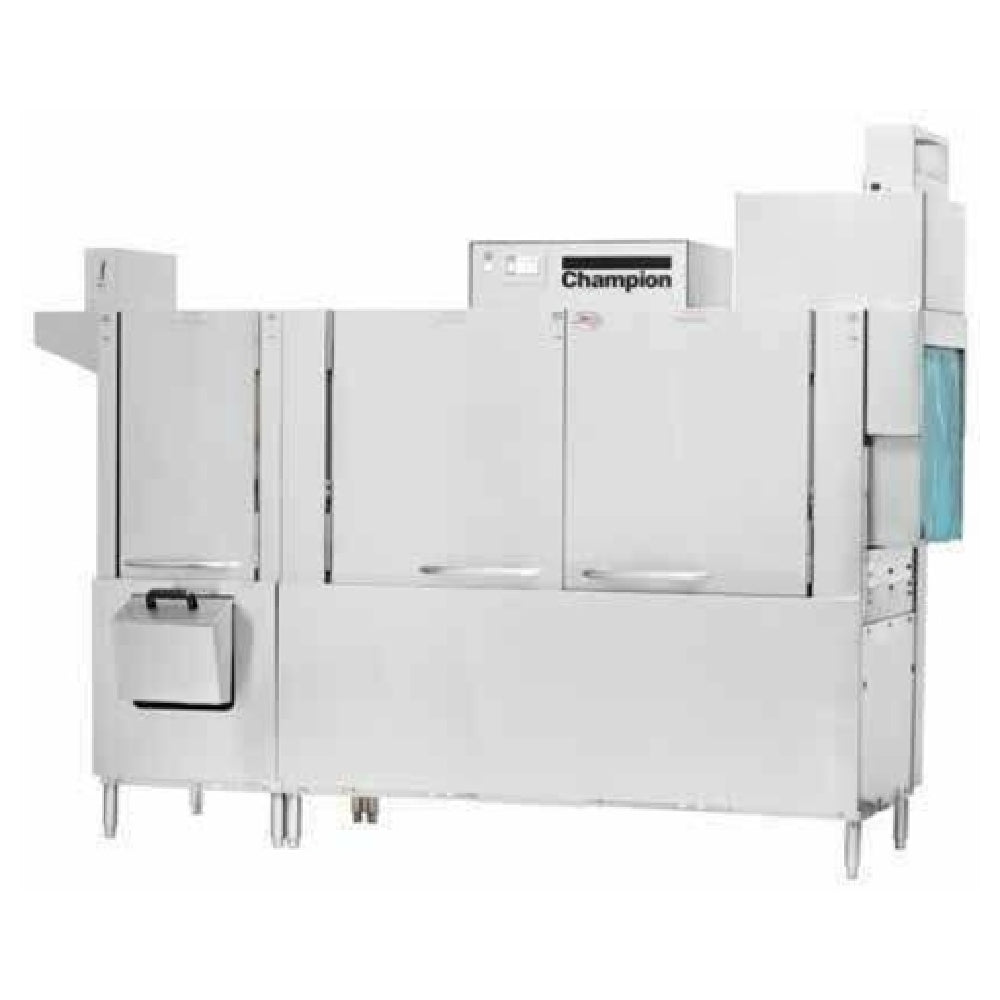

Champion 100 HDPW 277 Racks Per Hour High Temp Conveyor Dishwasher with Prewash

Item: #151949 MFG: #100 PRO

The 277 Rack/Hr High Temp Conveyor Dishwasher w/ Prewash utilizes Champion's two-tank wash system plus a 36-inch wide heavy-duty prewash module to handle even the dirtiest dishes that you can send its way. Champion has designed this high-temp conveyor dishwasher to not only provide you with an intense cleaning for your dishes, but to also conserve water and electricity. Such efficiencies as the Energy Sentinel, which is an idle pump shut-off, and the Never leak drain closure which uses a ball valve, have helped the Champion 100 HDPW earn its ENERGY STAR rating. The conveyor dishwasher features a top mounted control cabinet. In addition, Champion has designed an anti-jam conveyor drive system so you can wash up to 277 dish racks without worrying. Plus, the conveyor's vertical opening can accommodate items as large as an 18" x 26" sheet pan, increasing the variety of dishes that you can put through the unit. Note that this model is available standard with 208 Volt electrical, but there is also an optional 240 volt electrical model.


Champion 100 HDPW Features

  • ENERGY STAR Qualified
  • Dual-pawl cradle drive system
  • Durable, One-piece Cast Stainless Steel Upper & Lower Spray Arm Assemblies
  • Internal Removable Scrap Basket and Two-piece Scrap Screen
  • Standard Vertical Opening Accommodates 18" x 26" Sheet Pans
  • Wide Leakproof Swing Out Insulated Hinged Doors on Wash/Rinse
  • Anti-Jam Conveyor Drive System
  • Energy Sentinel (Idle Pump Shut-off) conserves electricity
  • Convenient Top-mounted Controls
  • Automatic Tank Fill
  • Door Safety Switch
  • Never Leak, ball valve Drain Closure
  • Enclosure Panels (front and sides)
  • Stainless Steel Heavy-gauge construction, including base and feet
  • Built-in Booster Heater made from stainless steel
  • Electric Tank Heat
  • Wash/Rinse pump 2 HP motors
  • Stainless Steel pump and impeller
  • Vent Fan Control Switch
  • Self-diagnostic controls
  • Stainless Steel Rear Manifolds

  • Overall Dimensions:
    Height: 65 3/5"
    Width: 100"
    Depth: 36 13/100”

    View all Description
    Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
    Specification Specifications
    Ship Weight 1,550 LB
    Manufacturer Champion
    Model Number 100 HDPW
    Manufacturer Part # 100 HDPW
    Amps 162
    Booster Heater Included Yes
    Booster Tank Capacity 6 Gal.
    Booster Wattage 15 kW
    Conveyor Horsepower 1/6
    Conveyor Speed 7.7 Ft/Min
    Dimension(HxWxD) 65.6" x 100" x 36.13"
    Dishwasher Type Conveyor
    Hz. 60
    Incoming Water Temperature 140 degrees F
    Interior Clearance 20.75"
    Phase 3
    Prewash Horsepower 1
    Racks Included Yes
    Racks per Hour 277
    Rinse Horsepower 2
    Rinse Temperature High-Temp
    Voltage 208 Volt Standard / 240 Volt available
    Wash Horsepower 2
    Wash Tank Capacity 21 Gal
    Wash Tank Usage 25 kW
    Water Used 0.45 Gal/Rack
    ENERGY STAR Yes
    View all Specifications
    • Specification Sheet:

      A PDF viewer is required to view this product's information.

      Spec Sheet
      Download Spec Sheet
