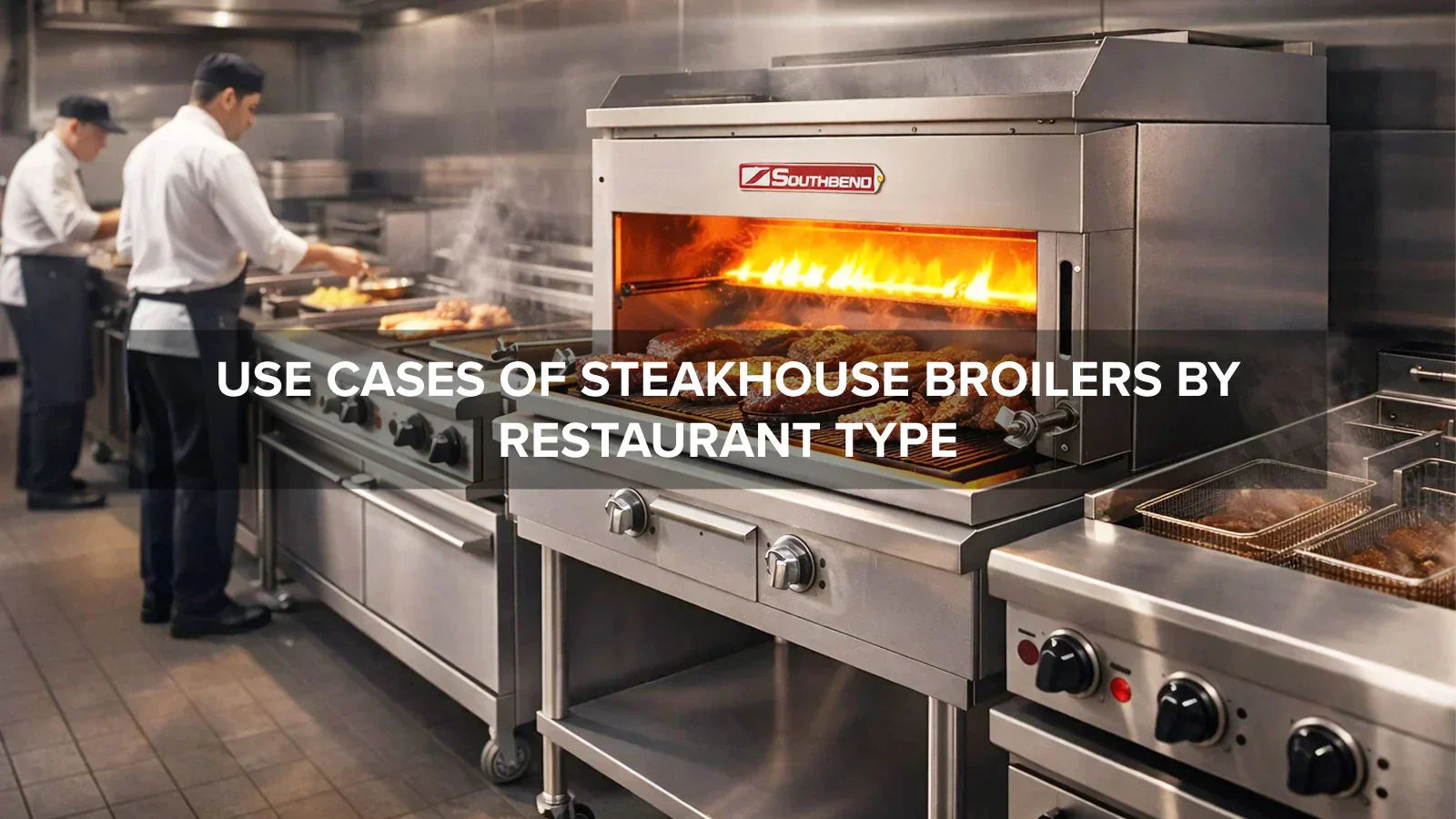

Steakhouse broilers are designed for one core outcome: intense, consistent, high-temperature searing. But how they’re used—and which type makes the most sense—varies significantly by restaurant concept, service model, and volume.
This guide breaks down how different restaurant types use steakhouse broilers, what performance characteristics matter most in each environment, and how to match broiler type to operational goals.
Quick Answer
Steakhouse broilers are used differently depending on concept:
- High-end steakhouses prioritize infrared overfire broilers for crust quality and consistency.
- Casual dining restaurants often use heavy-duty gas broilers for versatility.
- High-volume chains rely on recovery speed and throughput stability.
- Hotel kitchens use broilers for banquet finishing and multi-menu flexibility.
- Fast-casual concepts focus on speed and footprint efficiency.
60-Second Broiler Selection by Restaurant Type
If you run… → Choose…
- Fine dining steakhouse → Infrared overfire broiler (max crust + consistency)
- Casual dining → Heavy-duty gas broiler (versatility + cost balance)
- High-volume chain → High-BTU infrared multi-unit setup (throughput + consistency)
- Hotel / banquet kitchen → Gas broiler + salamander combo (flexibility + finishing)
- Fast-casual → Compact overfire or countertop infrared (speed + space efficiency)
- Independent steakhouse → 36" heavy-duty gas broiler (performance without overbuild)
Rule:
Match your broiler to your peak-hour workload—not your average day.
Choosing the right broiler depends on peak volume, menu focus, and ventilation capacity—not just maximum BTU.
For a deeper breakdown of broiler types, heat systems, and infrastructure planning, refer to our complete commercial broiler buying guide.
1. Fine Dining & Premium Steakhouses
Primary Goal: Maximum crust quality and consistency
Fine dining steakhouses typically use infrared overfire broilers capable of extremely high radiant heat output.
Why infrared?
- Surface emitter temperatures can exceed 1,500°F
- Faster sear development
- Better moisture retention
- More consistent crust formation across cuts
Operational Reality
In a 150–200 cover fine dining steakhouse, broilers often run continuously for 2–3 hour service blocks. Recovery speed becomes critical when firing multiple ribeyes, strips, and filets back-to-back.
A 60,000–80,000 BTU infrared broiler maintains surface intensity far more effectively than a lower-BTU standard flame unit under sustained load.
Why It Works Here
- Steak quality defines brand perception
- Visible crust matters
- High check averages justify higher equipment investment
2. Casual Dining Restaurants
Primary Goal: Versatility + throughput balance
Casual dining restaurants serve more than steaks. Burgers, chicken, seafood, and finishing tasks share broiler space.
Most use heavy-duty gas overfire broilers in the 35,000–60,000 BTU range.
Operational Example
In a 120-seat casual concept running two seatings per night, broilers must handle:
- 20+ steaks per hour during peak
- Burgers for walk-in traffic
- Chicken breasts or seafood plates
- Occasional cheese finishing
Versatility and adjustable rack height become more important than extreme infrared intensity.
Why It Works Here
- Mixed menu demands flexibility
- Open-flame char fits varied proteins
- Lower upfront cost than infrared
Operators evaluating high-output systems often compare today’s top steakhouse broilers to benchmark recovery speed, build quality, and sustained radiant performance.
3. High-Volume Chain Steakhouses
Primary Goal: Recovery speed and repeatability
Chain steakhouse concepts prioritize system performance over individual chef technique. The broiler must deliver:
- Identical sear across locations
- Stabilized ticket times
- Predictable output during peak
Typical Equipment Strategy
| Equipment Choice | Why Chains Prefer It |
|---|---|
| Infrared broilers | Stronger, more consistent radiant heat |
| High-BTU units (70,000+ BTU) | Faster recovery between batches |
| Multiple broilers per line | Throughput redundancy + congestion prevention |
Throughput Scenario
In a 250-seat chain steakhouse pushing 80–100 steaks during peak dinner hours, broiler recovery time directly affects:
| Operational Impact | Why Recovery Matters |
|---|---|
| Ticket pacing | Slow recovery stacks orders |
| Expo timing | Inconsistent crust delays plating |
| Table turn efficiency | Delays ripple into service flow |
Units engineered for continuous 3–4 hour heavy service blocks maintain surface heat better under repeated loads.
Infrastructure Considerations
High-BTU broilers in this segment often require:
- Type I hood systems
- 500–800+ CFM airflow capacity
- Proper gas line sizing for total BTU load
Ventilation Reality
| If ventilation is undersized… | What Happens |
|---|---|
| Heat builds on the line | Staff fatigue increases |
| Grease vapor accumulates | Code risk + performance loss |
| Radiant intensity drops | Slower sear development |
Under-sizing ventilation in this category leads to ambient heat buildup and performance degradation.
Why It Works Here
| Chain Priority | Why High-BTU Infrared Fits |
|---|---|
| Cross-location consistency | Repeatable sear performance |
| Peak-hour stability | Maintains intensity under load |
| System-driven operations | Equipment compensates for operator variability |
4. Hotels & Banquet Kitchens
Primary Goal: Multi-purpose finishing and event scalability
Hotel kitchens require broilers that support:
- À la carte dining
- Room service
- Banquet steak finishing
- Late-night menus
Unlike chain steakhouses, flexibility often outweighs extreme intensity.
Common Setup
| Equipment Type | Why It’s Used |
|---|---|
| Heavy-duty gas broiler | Handles varied proteins |
| Salamander | Final plate finishing + cheese melt |
| Moderate BTU (40,000–60,000) | Balanced output without overbuilding |
Operational Example
During a 300-guest banquet event, steaks are often:
- Pre-marked on grills
- Held at controlled temperature
- Finished under broilers
This approach helps:
| Banquet Goal | Broiler Contribution |
|---|---|
| Achieve consistent crust | Even radiant finishing |
| Tighten cook temperature | Controlled final heat application |
| Standardize plating | Uniform finish across batches |
Why It Works Here
| Hotel Priority | Why Moderate Output Fits |
|---|---|
| Menu diversity | One broiler must handle many SKUs |
| Event scalability | Flexible finishing power |
| Ventilation sharing | Avoids overloading hood systems |
| Staff rotation | Simple, adaptable operation |
5. Fast-Casual and Premium Burger Concepts
Primary goal: Speed and footprint efficiency
Fast-casual steak and burger concepts often operate in tight kitchen footprints where line flow matters as much as heat output.
Typical Equipment Setup
| Common choice | Why it fits |
|---|---|
| Compact overfire broilers | Strong output in a smaller footprint |
| Countertop infrared units | Fast sear without a full upright footprint |
| 30,000–50,000 BTU systems | Balanced power for lunch rush volumes |
Real-World Scenario
In a 2,000 sq ft fast-casual concept serving 60–80 burgers per hour during peak lunch:
- Broiler placement affects line flow more than raw BTU.
- Radiant heat management becomes critical.
- Staff movement efficiency determines ticket speed.
What Can Go Wrong
| Poor placement issue | Result |
|---|---|
| Broiler too close to prep station | Heat bleed slows assembly |
| Insufficient hood capture | Ambient temperature rises |
| Cross-traffic congestion | Bottleneck during rush |
In this environment, ventilation planning and line layout are just as important as power output.
Why It Works Here
| Fast-casual priority | Best equipment fit |
|---|---|
| High lunch peak | Compact, fast-recovery broiler |
| Tight kitchen layout | Smaller footprint models |
| Speed over ceremony | Infrared or focused overfire |
| Staff rotation | Simple controls and stable recovery |
6. Independent Steakhouses (Mid-Volume)
Primary goal: Performance without overbuilding
Independent operators often balance performance with tighter capital budgets.
Best-Fit Setup
| Specification | Why it’s ideal |
|---|---|
| 36" heavy-duty gas broiler | Adequate surface area for peak volume without oversizing |
| 40,000–60,000 BTU | Strong sear without extreme ventilation load |
| Adjustable grates | Menu flexibility |
| Durable stainless construction | Long-term reliability |
Why This Tier Works
| Performance need | How this tier delivers |
|---|---|
| Strong crust development | Sufficient BTU for high-quality sear |
| Manageable ventilation | Lower CFM requirement than large infrared systems |
| Infrastructure burden | Avoids oversized gas line upgrades |
| Durability | Heavy-duty construction supports daily service |
Many 36" heavy-duty units require hood systems in the 400–700 CFM range, depending on BTU and local code interpretation.
Broiler Selection by Restaurant Size
| Restaurant size | Recommended broiler type | Typical BTU range |
|---|---|---|
| Small (under 75 seats) | Compact gas or electric | 25,000–40,000 |
| Medium (75–150 seats) | Heavy-duty gas | 40,000–60,000 |
| Large (150–250 seats) | Infrared or multi-unit | 60,000–80,000+ |
| High-volume chain | Infrared high-output multi-unit setup | 70,000–100,000+ |
Concept-to-Capacity Summary
| If your priority is… | Choose… |
|---|---|
| Speed and small footprint | Compact overfire or countertop infrared |
| Balanced mid-volume steak program | 36" heavy-duty gas |
| Signature crust and peak stability | Infrared upright |
| System-wide consistency at scale | High-BTU infrared multi-unit setup |
Bottom Line
Fast-casual kitchens optimize for layout efficiency and heat control. Independent steakhouses optimize for performance without overbuilding infrastructure.
The right broiler is sized for your busiest hour—and your ventilation limits.
Quick Comparison: Broiler Needs by Restaurant Type
| Restaurant Type | Primary Goal | Best Broiler Type | Key Requirement |
|---|---|---|---|
| Fine Dining | Crust quality + precision | Infrared overfire | Extreme radiant heat + consistency |
| Casual Dining | Versatility + mixed menu | Heavy-duty gas | Flexible output + adjustable racks |
| High-Volume Chain | Throughput + repeatability | High-BTU infrared | Recovery speed + multi-unit setup |
| Hotel / Banquet | Flexibility + batch finishing | Gas + salamander | Multi-use + controlled finishing |
| Fast Casual | Speed + compact layout | Compact overfire / infrared | Footprint + efficiency |
| Independent | Performance vs cost balance | 36" heavy-duty gas | Reliability + manageable infrastructure |
Why Broiler Maintenance Matters
Understanding proper steakhouse broiler maintenance best practices helps preserve sear quality, recovery speed, and long-term durability under heavy service blocks. Broilers run at sustained high temperatures—often in 2–4 hour peak service blocks. Over time, grease buildup, burner misalignment, and airflow restriction reduce heat intensity and recovery speed.
When maintenance slips, operators often notice:
- Slower crust development
- Inconsistent sear marks
- Hot/cold zones across the grate
- Increased flare-ups
- Excess ambient heat under the hood
What Preventative Maintenance Protects
| What you protect | Why it matters |
|---|---|
| Sear quality | Maintains crust consistency and appearance |
| Fuel efficiency | Cleaner combustion and less wasted heat |
| Ventilation performance | Less smoke and grease load under the hood |
| Equipment lifespan | Often 7–12+ years when maintained properly |
Daily Maintenance (After Each Service)
Daily cleaning prevents grease carbonization and airflow restriction. The goal is to keep radiant transfer clean and prevent grease from turning into hard carbon.
1. Clean Grates Thoroughly
Process
- Remove grates once cooled
- Scrape carbon buildup
- Soak in an approved degreasing solution if needed
- Dry completely before reinstalling
Why it matters: Carbon buildup acts as insulation, reducing direct radiant heat transfer.
Grate Performance Impact
| If grates are… | What happens | Result |
|---|---|---|
| Clean | Better radiant transfer | Faster crust and better sear |
| Carbonized | Heat transfer drops | Slower browning and uneven marks |
| Sticky/greasy | Flare-ups increase | More smoke and inconsistent finish |
2. Empty and Clean Grease Trays
Grease trays fill quickly in steakhouse environments.
Why this matters
- Prevents flare-ups
- Reduces smoke production
- Improves fire safety
- Keeps hood filters cleaner
Non-negotiable: Never allow grease to accumulate overnight.
Grease Tray Risk
| Condition | Risk |
|---|---|
| Tray left full | High flare-up potential |
| Grease baked on | Harder cleaning and more smoke |
| Overflow or near-overflow | Fire hazard and increased hood loading |
3. Wipe Interior Surfaces
Use approved degreasers on:
- Interior walls
- Splash guards
- Underside panels
Avoid excessive water near burners or electrical components.
Why Interior Wipe-Down Matters
| If residue builds… | What you’ll notice |
|---|---|
| On walls/panels | More smoke and odor |
| Around burner areas | Uneven heat zones |
| Under top surfaces | More grease vapor under the hood |
Quick End-of-Service Checklist
| Task | Done |
|---|---|
| Grates scraped/soaked if needed | ☐ |
| Grease trays emptied and wiped | ☐ |
| Interior surfaces wiped | ☐ |
| Unit visually checked for flare-up residue | ☐ |
Weekly Maintenance
Weekly checks prevent gradual performance decline and keep recovery speed consistent during peak service blocks.
1. Inspect Burner Flame (Gas Units)
Look for:
- Even blue flame
- No yellow tipping
- No visible flame gaps
Uneven flames usually indicate clogged burner ports or airflow imbalance.
Gas broilers typically operate between 35,000–80,000+ BTU. Even minor port blockage can reduce effective output and recovery speed.
Flame Diagnosis
| Flame appearance | Likely cause | Impact on performance |
|---|---|---|
| Even blue flame | Normal operation | Optimal searing and recovery |
| Yellow tipping | Air/fuel imbalance | Soot buildup and reduced efficiency |
| Gaps in flame line | Clogged ports | Cold zones on the grate |
| Uneven flame height | Partial obstruction | Inconsistent browning |
2. Clean Burner Ports
Use a soft brush or a manufacturer-approved tool to remove debris. Never enlarge ports with sharp metal tools—this permanently alters gas flow and reduces control.
Why This Matters
| If ports are… | What happens |
|---|---|
| Clean | Stable BTU output |
| Partially clogged | Reduced recovery speed |
| Damaged/enlarged | Irregular flame pattern |
3. Check Infrared Panels (If Equipped)
Infrared emitters transfer heat primarily through radiant energy, not open-flame convection.
Inspect for:
- Cracks
- Warping
- Heavy carbon buildup
- Uneven glow patterns
Infrared emitters can exceed 1,500°F at the ceramic surface. Carbon buildup reduces radiant efficiency and slows recovery.
Infrared Panel Inspection Guide
| Observation | What it indicates | Action |
|---|---|---|
| Even bright glow | Proper radiant output | Normal operation |
| Dark spots | Carbon buildup or blockage | Clean carefully |
| Cracks | Structural failure risk | Replace panel |
| Warping | Heat stress | Evaluate for replacement |
4. Inspect Adjustable Rack Mechanisms
Ensure:
- Smooth height adjustment
- No warping
- No grease obstruction
Misalignment causes uneven sear patterns and inconsistent char marks.
| If the rack system is… | Result |
|---|---|
| Smooth and aligned | Even searing |
| Warped | Uneven contact with radiant heat |
| Obstructed | Inconsistent positioning |
Monthly Maintenance
Monthly inspections protect long-term durability and prevent airflow-related heat stress.
1. Deep Clean Internal Cavities
If the manufacturer allows, remove internal panels and:
- Degrease thoroughly
- Inspect structural welds
- Check heat shields
Grease accumulation inside internal cavities restricts airflow and increases ambient heat under the hood.
Internal Buildup Risk
| Condition | Result |
|---|---|
| Clean cavities | Proper airflow and stable temperature |
| Grease buildup | Reduced efficiency and excess smoke |
| Heat shield damage | Uneven radiant distribution |
2. Inspect Gas Line Connections
Check for:
- Loose fittings
- Signs of corrosion
- Pressure irregularities
Commercial broilers require proper gas pressure regulation to maintain rated BTU performance.
| If gas pressure is… | What happens |
|---|---|
| Within spec | Rated output achieved |
| Too low | Weak sear and slow recovery |
| Too high | Safety risk and unstable flame |
3. Verify Ventilation Performance
Most 36" steakhouse broilers require hood systems capable of approximately 400–700 CFM, depending on BTU rating and local code.
Signs of Ventilation Problems
| Symptom | Likely issue |
|---|---|
| Excess smoke buildup | Insufficient airflow |
| Grease accumulation around hood edges | Poor capture efficiency |
| Increased kitchen heat | Restricted airflow or undersized hood |
Restricted airflow forces broilers to operate hotter and less efficiently—shortening component lifespan.
Maintenance Frequency Summary
| Frequency | Focus | Protects |
|---|---|---|
| Daily | Grease and surface cleaning | Sear quality and fire safety |
| Weekly | Flame and infrared inspection | Recovery speed and consistency |
| Monthly | Structural and airflow checks | Long-term durability |
Infrared vs. Open Flame Maintenance Differences
Infrared and open-flame broilers fail differently. The maintenance goal is the same—keep output consistent—but the weak point you protect is different.
| Feature | Infrared broilers | Open flame broilers |
|---|---|---|
| Cleaning focus | Ceramic emitter surface | Burner ports |
| Performance risk | Carbon blocks radiant heat | Clogged ports reduce flame |
| Replacement cycle | Emitter panels may need periodic replacement | Burners usually last longer but need regular cleaning |
| Sear impact | Uneven emitter glow affects crust consistency | Uneven flame affects sear/grill-mark pattern |
Operator takeaway: Infrared units require slightly more careful cleaning, but reward operators with faster recovery and more intense searing.
Early Warning Signs of Performance Decline
Recognizing issues early prevents expensive repairs and peak-hour service disruption.
What to Watch For
| Early warning sign | What it usually indicates | Why it matters |
|---|---|---|
| Longer cook times than usual | Reduced output (carbon buildup or clogged ports) | Slower ticket pace |
| Inconsistent crust color | Hot/cold zones (uneven emitters or burners) | Presentation inconsistency |
| Food sticking more frequently | Grate carbonization or uneven heat | More rework and slower flips |
| Increased flare-ups | Grease tray overflow or interior buildup | Safety and smoke load |
| Burners struggling to ignite | Dirty igniters or gas flow issues | Downtime risk |
| Uneven heat zones | Panel damage or partial port blockage | Batch inconsistency |
In high-volume operations pushing 80–100 steaks during peak dinner, even small heat inconsistencies can disrupt ticket pacing and expo timing.
Extending Broiler Lifespan
With proper maintenance:
- Heavy-duty commercial broilers often last 7–12 years
- Infrared emitter panels may require periodic replacement depending on usage intensity
- Grates may need resurfacing or replacement in high-output environments
What Lifespan Depends On
| Lifespan driver | Why it affects durability |
|---|---|
| Cleaning discipline | Prevents carbon and grease from reducing output and stressing components |
| Proper ventilation sizing | Reduces ambient heat stress and grease vapor buildup |
| Gas pressure stability | Maintains rated BTU and prevents combustion issues |
| Continuous-duty usage patterns | Heavy blocks accelerate wear if maintenance slips |
Most commercial broilers are engineered for continuous 2–6 hour heavy service blocks when properly ventilated and supplied—maintenance is what keeps them operating as designed.
Broiler Troubleshooting Guide
Even well-maintained broilers can develop performance issues. Early diagnosis prevents costly downtime and protects peak-hour consistency.
Problem: Uneven Sear or Hot/Cold Zones
Possible causes:
- Clogged burner ports
- Misaligned burners
- Carbon buildup on infrared panels
- Warped or improperly seated grates
What to Do
| Step | Why it helps |
|---|---|
| Clean burner ports carefully | Restores even flame distribution |
| Inspect emitter glow pattern (infrared units) | Identifies dark or underperforming zones |
| Confirm grates are seated evenly | Prevents uneven heat contact |
| Verify gas pressure meets manufacturer specs | Ensures full rated BTU output |
Why it matters: Uneven heat creates inconsistent crust, longer cook times, and higher remake risk.
Problem: Excessive Flare-Ups
Possible causes:
- Grease tray overfilled
- Carbonized buildup under grates
- Blocked grease channels
What to Do
| Step | Why it helps |
|---|---|
| Empty and clean grease tray immediately | Reduces ignition source |
| Deep clean interior surfaces | Removes carbon fuel sources |
| Check grease channel pathways | Restores proper grease flow |
Persistent flare-ups reduce sear control and increase fire risk.
Problem: Longer Cook Times Than Normal
Possible causes:
- Reduced BTU output from clogged ports
- Gas pressure fluctuation
- Restricted hood airflow
- Infrared emitter degradation
What to Inspect
| Inspection area | What to look for |
|---|---|
| Flame quality | Blue, even distribution |
| Gas regulator | Stable pressure within specification |
| Hood system | Proper CFM airflow |
| Infrared panels | Even glow, no carbon blockage |
Even a 10–15% reduction in effective heat output can noticeably increase steak finishing times during peak service.
Problem: Burners Won’t Ignite Consistently
Possible causes:
- Igniter failure
- Gas flow interruption
- Grease interference
What to Do
| Step | Why it matters |
|---|---|
| Clean igniter area | Removes carbon interference |
| Confirm gas valve operation | Ensures proper fuel delivery |
| Check pilot assembly | Prevents intermittent ignition |
Always follow manufacturer lockout procedures before servicing ignition systems.
Problem: Excess Kitchen Heat
Possible causes:
- Undersized hood system
- Grease-clogged hood filters
- Excess BTU relative to airflow
Many 36" steakhouse broilers operating in the 60,000–80,000 BTU range require hood systems capable of roughly 400–700 CFM or more, depending on local code.
When airflow is insufficient:
- Radiant heat reflects back toward the line
- Staff fatigue increases
- Service pace slows
Proactive Performance Monitoring Tip
In high-volume steak concepts pushing 70–100 steaks during a two-hour dinner rush, tracking average cook times weekly can reveal early performance degradation before visible burner failure occurs.
If cook times increase by more than 5–10% without a menu change, inspect:
- Burner cleanliness
- Emitter integrity
- Gas pressure
- Ventilation flow
Small output losses compound quickly during peak.
Quick Troubleshooting Summary
| Symptom | Most likely area | First action |
|---|---|---|
| Uneven crust | Burners or emitters | Clean and inspect heat pattern |
| More flare-ups | Grease management | Clean trays and channels |
| Slower cook times | BTU or airflow issue | Check flame and hood |
| Ignition issues | Igniter or gas flow | Clean and verify gas supply |
| Excess kitchen heat | Ventilation sizing | Inspect hood filters and airflow |
Final Takeaway
The “best” steakhouse broiler depends on how your restaurant performs during peak service—not just what’s on the menu.
Ask:
- How many steaks fire per hour at peak?
- How long does your rush block last?
- Is crust quality central to your brand?
- Can your ventilation support higher BTU output?
- Does your line layout allow safe heat dispersion?
When the broiler is matched to your duty cycle and service pace, it helps:
- Stabilize ticket flow
- Improve crust consistency
- Reduce grill congestion
- Maintain quality under load
- Extend equipment life through proper workload alignment
The right broiler doesn’t just cook—it helps protect your service rhythm.
Compare steakhouse broiler configurations
If you’re narrowing down options, RestaurantSupply.com is a practical place to compare steakhouse broilers by heat style, output capacity, and installation requirements—so the unit you choose fits your peak volume, ventilation limits, and line layout.
